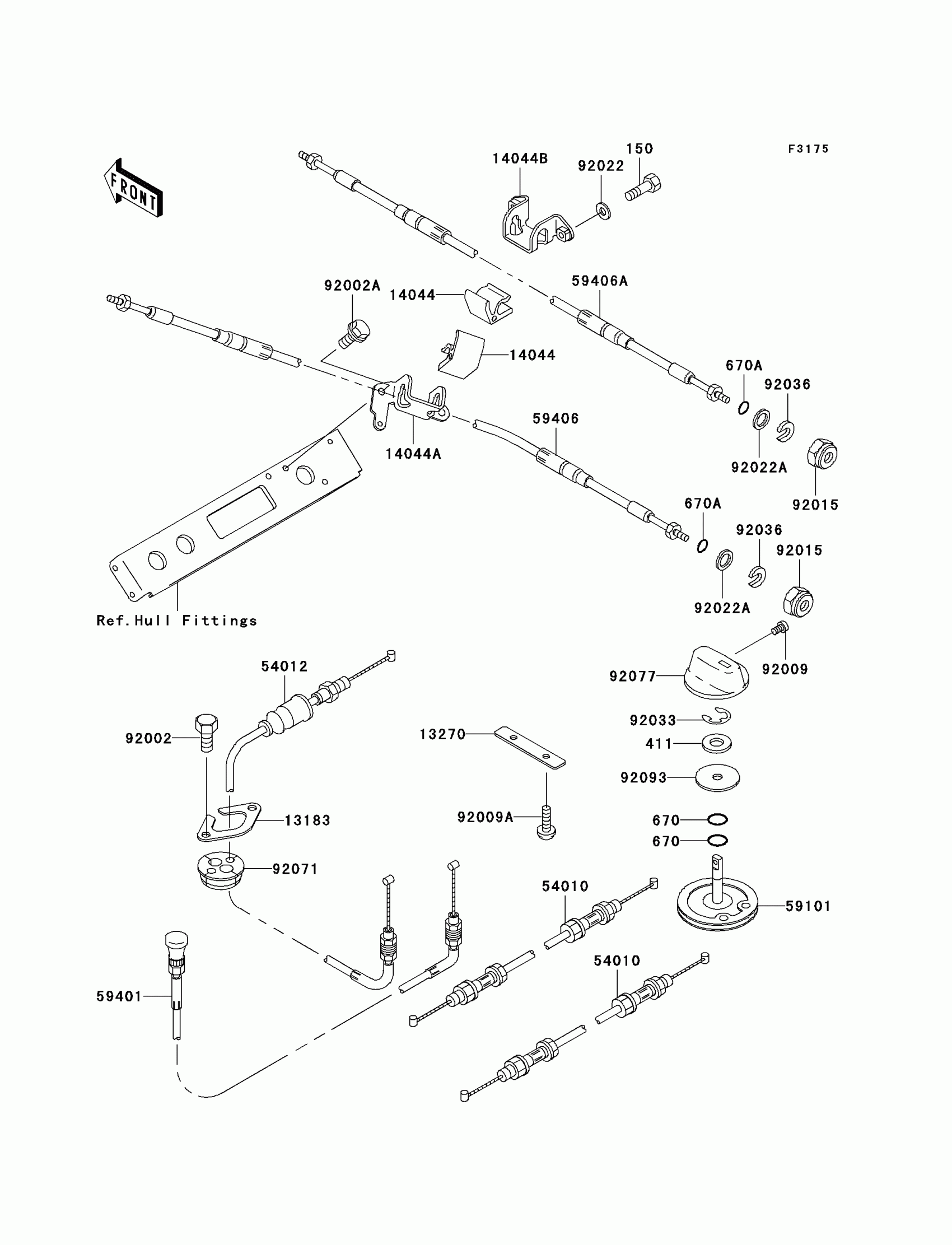

Kawasaki 900 STS Cables Diagram
#
Description
Price
150
BOLT-WS,6X18
150R0618
$4.67
411
WASHER-PLAIN,8MM
411S0800
$3.09
670
O RING,8MM
670B1508
$1.29
670A
O RING,11MM
670B2011
$1.28
13183
PLATE
13183-3810
Unavailable
13270
PLATE,FUEL TAP
13270-3798
$7.62
14044
HOLDER-CABLE,STEERING
14044-3714
$13.40
14044A
HOLDER-CABLE,STEERING
14044-3717
$25.61
14044B
HOLDER-CABLE,STEERING
14044-3731
$25.08
54010
CABLE,FUEL TAP
54010-3710
Unavailable
54012
CABLE-THROTTLE
54012-3756
$50.04
59101
REEL,SHIFT CABLE
59101-3712
$54.40
59401
CABLE-CHOKE
59401-3717
$45.79
59406
CABLE-STRG
59406-3748
$147.45
59406A
CABLE-STRG,REVERSE
59406-3749
$183.31
92002
BOLT,6X16
92002-3728
$4.69
92002A
BOLT,6X20
92002-3755
$4.69
92009
SCREW,4X8
92009-3729
$6.61
92009A
SCREW,5X16
92009-3789
$2.97
92015
NUT,20MM
92015-526
$29.72
92022
WASHER,6.5X20X1.5
92022-3710
$3.65
92022A
WASHER
92022-535
$7.34
92033
RING-SNAP,7MM
92033-3704
$2.94
92036
RING-SNAP
92036-501
Unavailable
92071
GROMMET,HARNESS
92071-3790
$9.64
92077
KNOB,FUEL TAP
92077-3727
$13.31
92093
SEAL
92093-3757
$2.24
