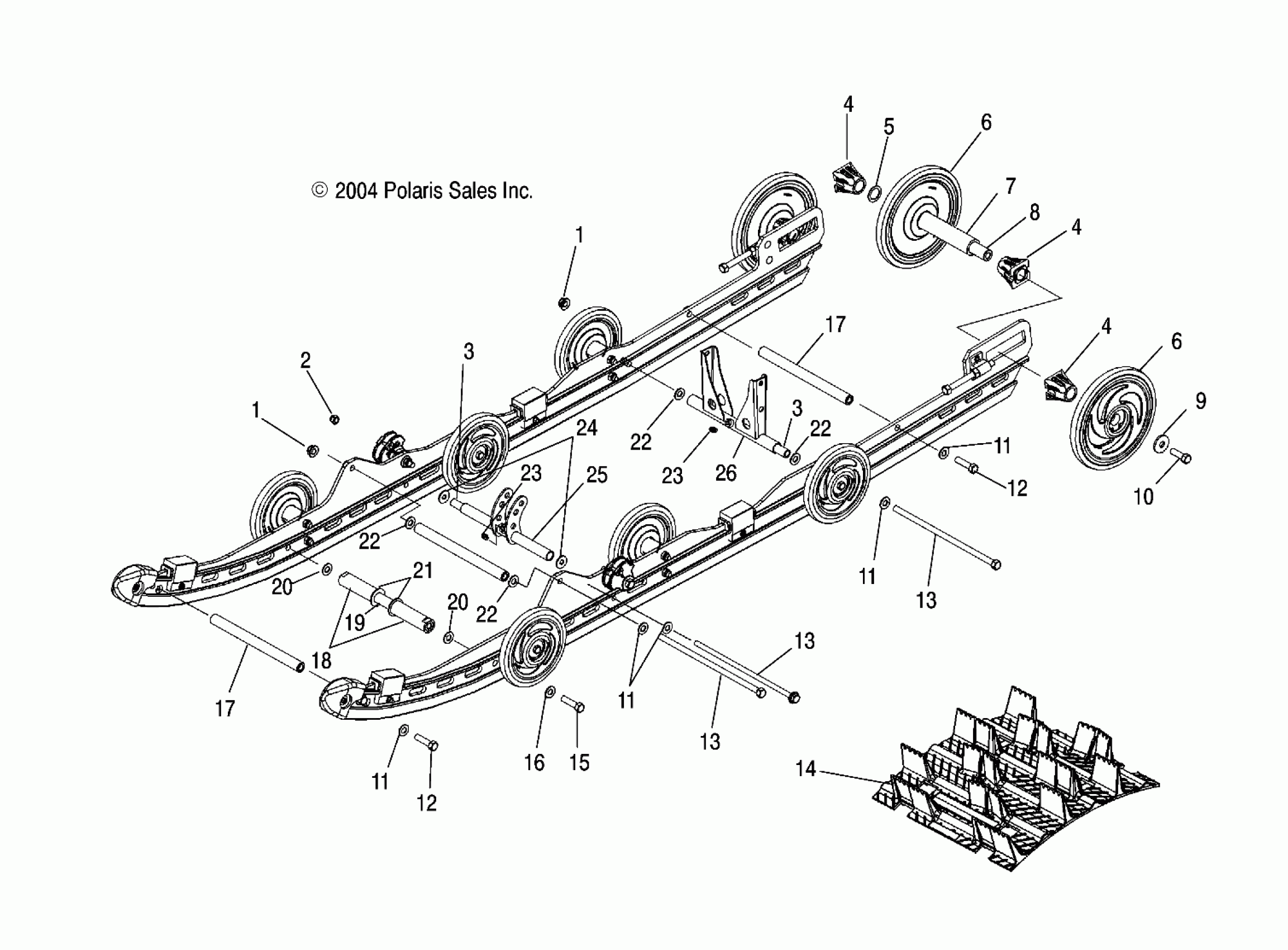

Polaris 900 RMK ALL OPTIONS - S05PL8/PM8/PN8 SUSPENSION - S05PL8/PM8/PN8/ALL OPTIONS (4992929292B10) Diagram

#

Description
Price

1

NUT-3/8-24 FLG LOC

7547263

$3.19

1

NUT-3/8-24 FLG LOC

7547263

$3.19

2

Nut, Nylok

7547217

$3.99

3

TUBE

5334162

$24.27

3

TUBE

5334162

$24.27

4

SPACER-IDLER

5432535

$11.99

4

SPACER-IDLER

5432535

$11.99

4

SPACER-IDLER

5432535

$11.99

5

BUSHING

7555918

$1.59

6

BEARING [1 PER WHEEL]

3514384

$19.84

6

RING-RETAINING [1 PER WHEEL]

7710444

$8.79

6

Asm., Wheel, Bright Silver

1590388-244

$67.76

6

Asm., Wheel, Indy Red

1590388-293

$52.60

6

BEARING [1 PER WHEEL]

3514384

$19.84

6

RING-RETAINING [1 PER WHEEL]

7710444

$8.79

6

Asm., Wheel, Bright Silver

1590388-244

$67.76

6

Asm., Wheel, Indy Red

1590388-293

$52.60

7

SPACER-IDLER, LONG

5333285

$11.99

8

SHAFT, IDLER

5020744

$59.99

9

WASHER

7556130

$6.39

10

BOLT

7517731

$1.49

11

Washer, Flat [Qty 8 for 151/159 Inch]

7555806

$1.49

11

Washer, Flat [Qty 8 for 151/159 Inch]

7555806

$1.49

11

Washer, Flat [Qty 8 for 151/159 Inch]

7555806

$1.49

11

Washer, Flat [Qty 8 for 151/159 Inch]

7555806

$1.49

12

SCREW

7518005

$3.19

12

SCREW

7518005

$3.19

13

SCREW

7517921

$23.99

13

SCREW

7517921

$23.99

13

SCREW

7517921

$23.99

14

Track, 151 Inch, Deep Lug (2.0)

5412241

Unavailable

14

Track, 159 Inch, Deep Lug (2.0)

5412185

Unavailable

14

Track, 151 Inch, Deep Lug (2.4)

5412443

Unavailable

14

Track, 166 Inch, Deep Lug (2.4)

5412444

$1,087.30

14

Track, 159 Inch, Deep Lug (2.4)

5412436

Unavailable

15

Screw

7517857

$5.59

16

WASHER

7556042

Unavailable

17

Shaft [Qty 3 for 166 Inch]

5134078

$38.71

17

Shaft [Qty 3 for 166 Inch]

5134078

$38.71

18

Spacer, Shock Centering

5334062

$11.99

19

SHAFT

5133188

$40.46

20

WSHR-.813X.406X.105-Y

7555832

$2.39

20

WSHR-.813X.406X.105-Y

7555832

$2.39

21

WASHER

7556210

$3.99

22

Washer, Flat

7555893

$1.49

22

Washer, Flat

7555893

$1.49

22

Washer, Flat

7555893

$1.49

22

Washer, Flat

7555893

$1.49

23

FITTING-LUBRICATION 1/4-28

7080424

$4.79

23

FITTING-LUBRICATION 1/4-28

7080424

$4.79

24

WASHER

7556242

$2.39

25

Arm, Shock Pivot, Black

1542122-067

$84.99

26

Arm, Rear Pivot, Black

1541832-067

$104.99
