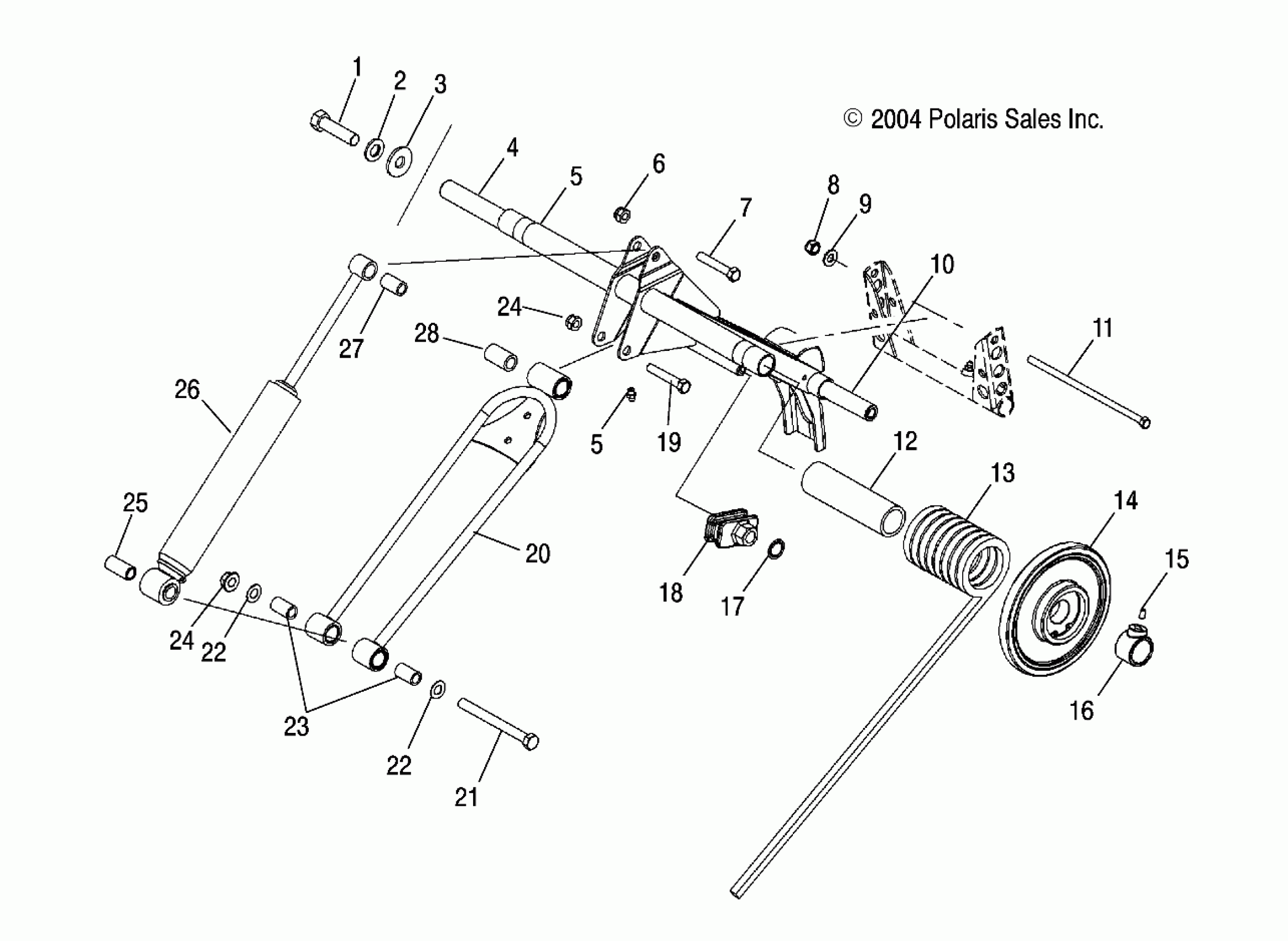

Polaris 900 RMK ALL OPTIONS - S05PL8/PM8/PN8 REAR TORQUE ARM - S05PL8/PM8/PN8/ALL OPTIONS (4992929292B13) Diagram

#

Description
Price

1

SCREW

7518005

$3.19

2

Washer, Spring Lock

7552603

$1.49

3

Washer, Flat

7555893

$1.49

4

SHAFT

5133987

$69.99

5

FITTING-LUBRICATION 1/4-28

7080424

$4.79

5

Arm, Rear Torque, Cloud Silver

1541963-385

Unavailable

5

FITTING-LUBRICATION 1/4-28

7080424

$4.79

5

Arm, Rear Torque, Cloud Silver

1541963-385

Unavailable

6

Nut, FLEXLOC

7542411

$3.19

7

SCREW

7512410

Unavailable

8

Nut, Nylok

7547217

$3.99

9

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

10

SHAFT

5333997

$94.99

11

SCREW

7517908

$10.39

12

SLEEVE-TORSION SPRING RMK

5434337

$7.99

13

Spring, Torsion, .359/77, Black, LH

7041629-067

Unavailable

13

Spring, Torsion, .359/77, Black, RH

7041630-067

Unavailable

13

SPRING-TORSION,.347SQ/77�LHBLK (Opt.)

7041627-067

$135.54

13

SPRING-TORSION,.347/77�,RH,BLK (Opt.)

7041628-067

$135.54

13

Spring, Torsion, .375/77, Black, LH (Opt.)

7041942-067

Unavailable

13

Spring, Torsion, .375/77, Black, RH (Opt.)

7041943-067

Unavailable

14

RET.RING-TRUARC

7718407

$4.79

14

BEARING

3514303

$11.99

14

ASM., WHEEL, BOGIE

1590328

$48.56

15

SCREW, SOCKET SET

7518262

$3.99

16

Spacer

5133988

Unavailable

17

CLIP-PUSH ON

7080394

$2.39

18

ROLLER-SPRING,ADJ,SQUARE,X10

5432983

$9.70

19

Screw

7515415

$1.49

20

Asm., Rod, Shock (Incl. Bushings)

1542170

$106.65

20

BUSHING

5435722

$5.59

20

BUSHING

5435723

$5.59

21

Screw

7518263

$3.99

22

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

22

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

23

Bushing

5134602

Unavailable

24

NUT-3/8-24 FLG LOC

7547263

$3.19

24

NUT-3/8-24 FLG LOC

7547263

$3.19

25

SLEEVE

5333905

$15.99

26

Shock, Rear Track

7043047

$214.99

26

SHOCK, REAR TRACK W/RES [SEE SHOCK REAR TRACK PG.C13 FOR DETAILS]

-------

Unavailable

27

BUSHING

5010422

$11.99

28

BUSHING

5134601

$15.99
