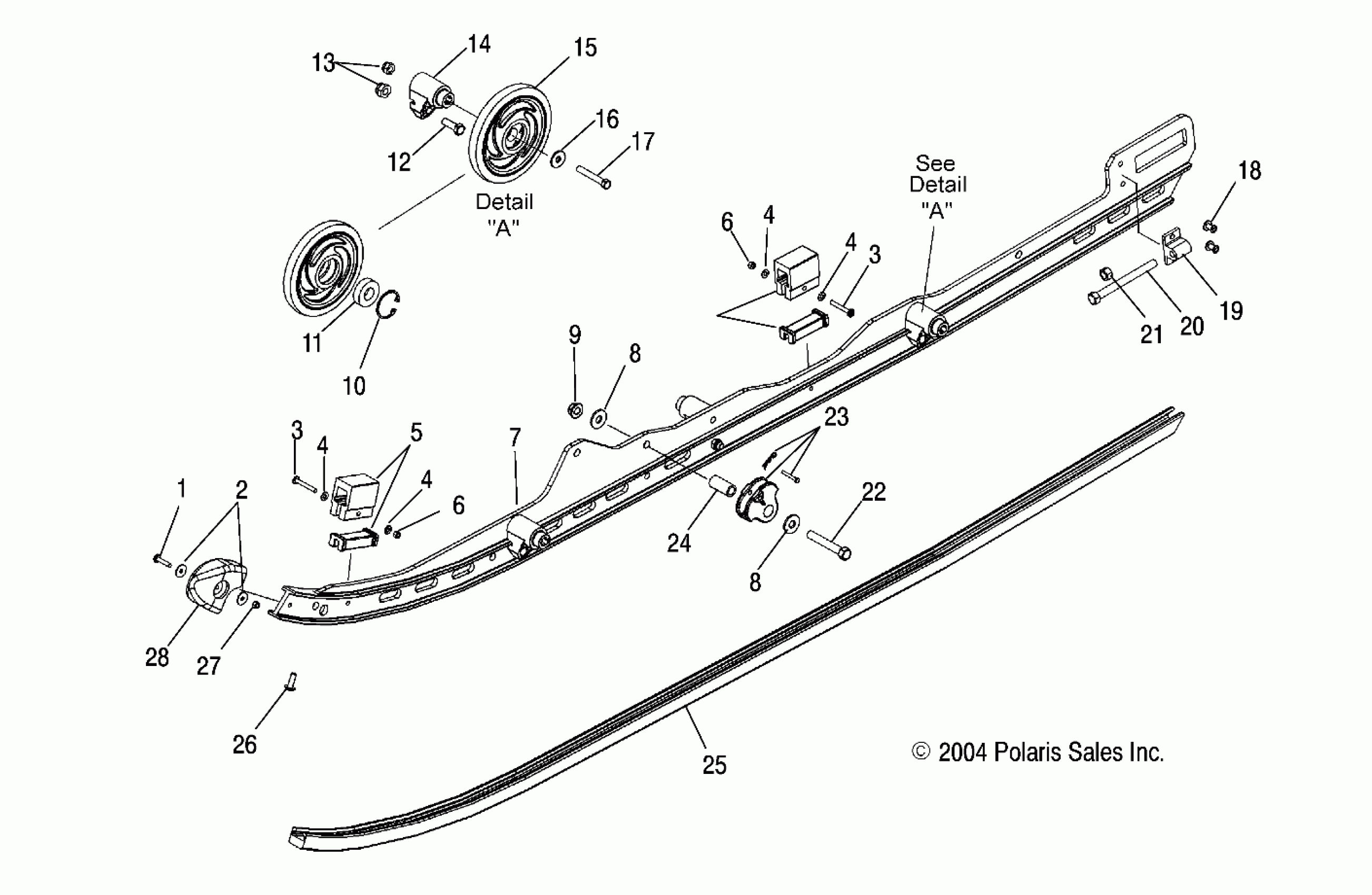

Polaris 900 RMK ALL OPTIONS - S05PL8/PM8/PN8 RAIL MOUNTING SUSPENSION - S05PL8/PM8/PN8/ALL OPTIONS (4992929292B11) Diagram

#

Description
Price

1

Bolt

7518335

Unavailable

2

WASHER

7555792

$4.79

3

Screw

7510504

$6.76

3

Screw

7510504

$6.76

4

Washer, Flat

7555783

$3.99

4

Washer, Flat

7555783

$3.99

4

Washer, Flat

7555783

$3.99

4

Washer, Flat

7555783

$3.99

5

BUMPER, JOUNCE, REAR

5521498

$8.89

5

LINER-BUMPER

5432946

$9.70

6

Nut, Nylok

7541925

$1.49

6

Nut, Nylok

7541925

$1.49

7

Asm., Rail, 151, LH [Incl. 1-7,18,19,27,28]

1541960

$354.99

7

Asm., Rail, 151, RH [Incl. 1-7,18,19,27,28]

1541961

$283.99

7

Asm., Rail, 159, LH [Incl. 1-7,18,19,27,28]

1541985

$298.99

7

Asm., Rail, 159, RH [Incl. 1-7,18,19,27,28]

1541986

$308.99

7

Asm., Rail, 166, LH [Incl. 1-7,18,19,27,28]

1542038

$319.99

7

Asm., Rail, 166, RH [Incl. 1-7,18,19,27,28]

1542039

$279.99

8

WASHER

7555983

Unavailable

8

WASHER

7555983

Unavailable

9

NUT-3/8-24 FLG LOC

7547263

$3.19

10

RING-RETAINING [1 PER WHEEL]

7710444

$8.79

11

BEARING [1 PER WHEEL]

3514303

$11.99

12

BOLT

7515317

$4.79

13

NUT-5/16-18 NYLOK-Y

7542324

$1.49

14

BLOCK, WHEEL MOUNT

5631446

$24.27

15

Asm., Wheel, Scrolled, Indy Red [Incl. 10,11]

1590387-293

$52.60

15

Asm., Wheel, Scrolled, Bright Silver [Incl. 10,11]

1590387-244

$52.60

16

Washer, Spring

7556179

$7.99

17

Screw

7515346

$5.59

18

RIVET

7621501

$2.39

19

BLOCK, IDLER BOLT ADJUSTABLE

5130530

$32.37

20

SCREW

7517227

$7.19

21

NUT

7542404

$1.59

22

Bolt

7515438

$4.79

23

Pin, Clevis

7661123

$3.99

23

GUIDE, SPRING SQUARE

5434334

$28.32

23

PIN, HITCH

7661644

$2.39

24

SPACER

5333948

$6.39

25

Hi-Fax, 156 Inch [151]

5521581-309

$40.46

25

Hi-Fax, 159 Inch

5521595-309

$40.46

25

Hi-Fax, 166 Inch

5521674-309

$40.46

26

Screw

7515199

$1.49

27

Nut, Nylok

7541925

$1.49

28

Cap, Rail Tip

5435527

$27.78
