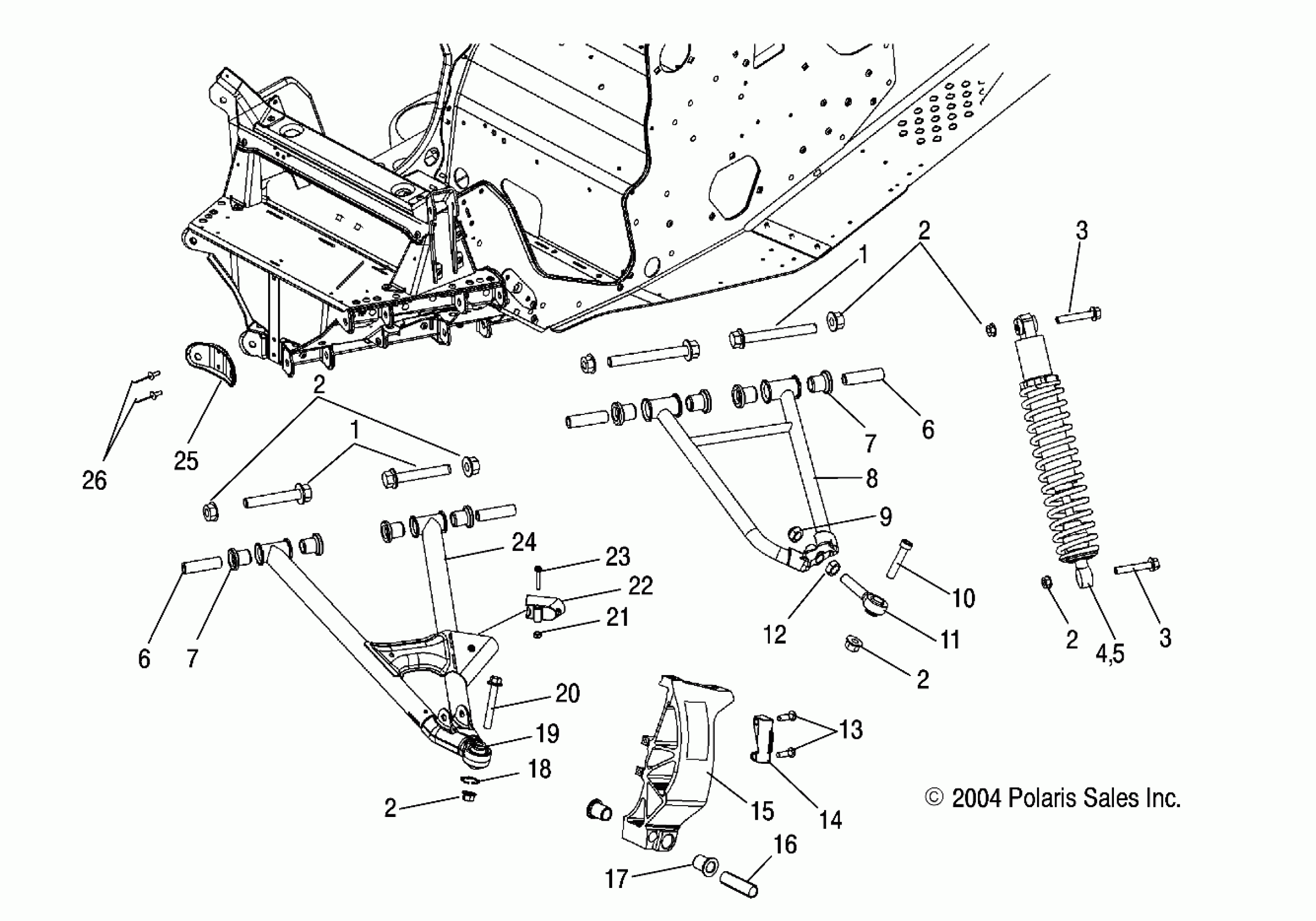

Polaris 900 RMK ALL OPTIONS - S05PL8/PM8/PN8 FRONT SUSPENSION - S05PL8/PM8/PN8/ALL OPTIONS (4992929292B03) Diagram

#

Description
Price

1

SCREW

7518384

$3.99

1

SCREW

7518384

$3.99

2

Nut, Flanged, Nylon

7547180

$2.39

2

Nut, Flanged, Nylon

7547180

$2.39

2

Nut, Flanged, Nylon

7547180

$2.39

2

Nut, Flanged, Nylon

7547180

$2.39

2

Nut, Flanged, Nylon

7547180

$2.39

3

Screw

7518278

$8.99

3

Screw

7518278

$8.99

4

Retainer, Spring, Slotted

5630580

Unavailable

4

RETAINER, SPRING

5245067

$23.99

4

Shock, IFS [Select]

7043049

$214.99

4

Spring, Compression, Indy Red

7042052-293

Unavailable

4

Spring, Compression, Gold

7041576-462

Unavailable

5

RETAINER, SPRING

5245067

$23.99

5

Spring, Compression, Black

7041576-067

$43.99

5

SHOCK, IFS [IFP][SEE SHOCK FRONT TRACK PG.C11 FOR DETAILS]

-------

Unavailable

6

Shaft, Pivot

5133860

$11.60

6

Shaft, Pivot

5133860

$11.60

7

BUSHING, PIVOT

5434932

$6.39

7

BUSHING, PIVOT

5434932

$6.39

8

Kit, Upper Control Arm, LH (Incl. 2,6-9,11,12)

2202936

Unavailable

8

Kit, Upper Control Arm, RH (Incl. 2,6-9,11,12)

2202937

Unavailable

9

NUT-1/2-20 NYLOK,THIN HT-Y

7547104

$1.49

10

Screw

7510003

$4.99

11

Rod End

7061124

$48.56

12

Nut, Jam

7542711

$2.39

13

SCREW

7515177

$3.19

14

Stop, Steering, LH

5631603

$4.95

14

Stop, Steering, RH

5631604

$4.95

15

Asm., Spindle, LH, Red (Incl. 13,14,17, and Decal)

1822720

$236.99

15

Asm., Spindle, LH, Blue (Incl. 13,14,17, and Decal)

1822718

$236.99

15

Asm., Spindle, RH, Red (Incl. 13,14,17, and Decal)

1822721

$199.19

15

Asm., Spindle, RH, Blue (Incl. 13,14,17, and Decal)

1822719

$226.99

16

BUSHING, PIVOT

5010158

$19.99

17

BUSHING-SKI PIVOT

5133983

$14.99

18

RING, RETAINING

7710539

$2.39

19

BEARING, SPHERICAL, LOWER

-------

Unavailable

20

Screw

7518276

Unavailable

21

Nut, Nylok

7541925

$1.49

22

Slide, Sway Bar

5435738

$24.27

23

Screw

7510504

$6.76

24

Kit, Lower Control Arm, RH (Incl. 2,6,7,18,19,21,22,23)

2202939

Unavailable

24

Kit, Lower Control Arm, LH (Incl. 2,6,7,18,19,21,22,23)

2202938

Unavailable

25

BRACE, FRONT LOWER A-ARM

5247372

$54.99

26

RIVET-3/16-.090-.290

7661637

$1.49
