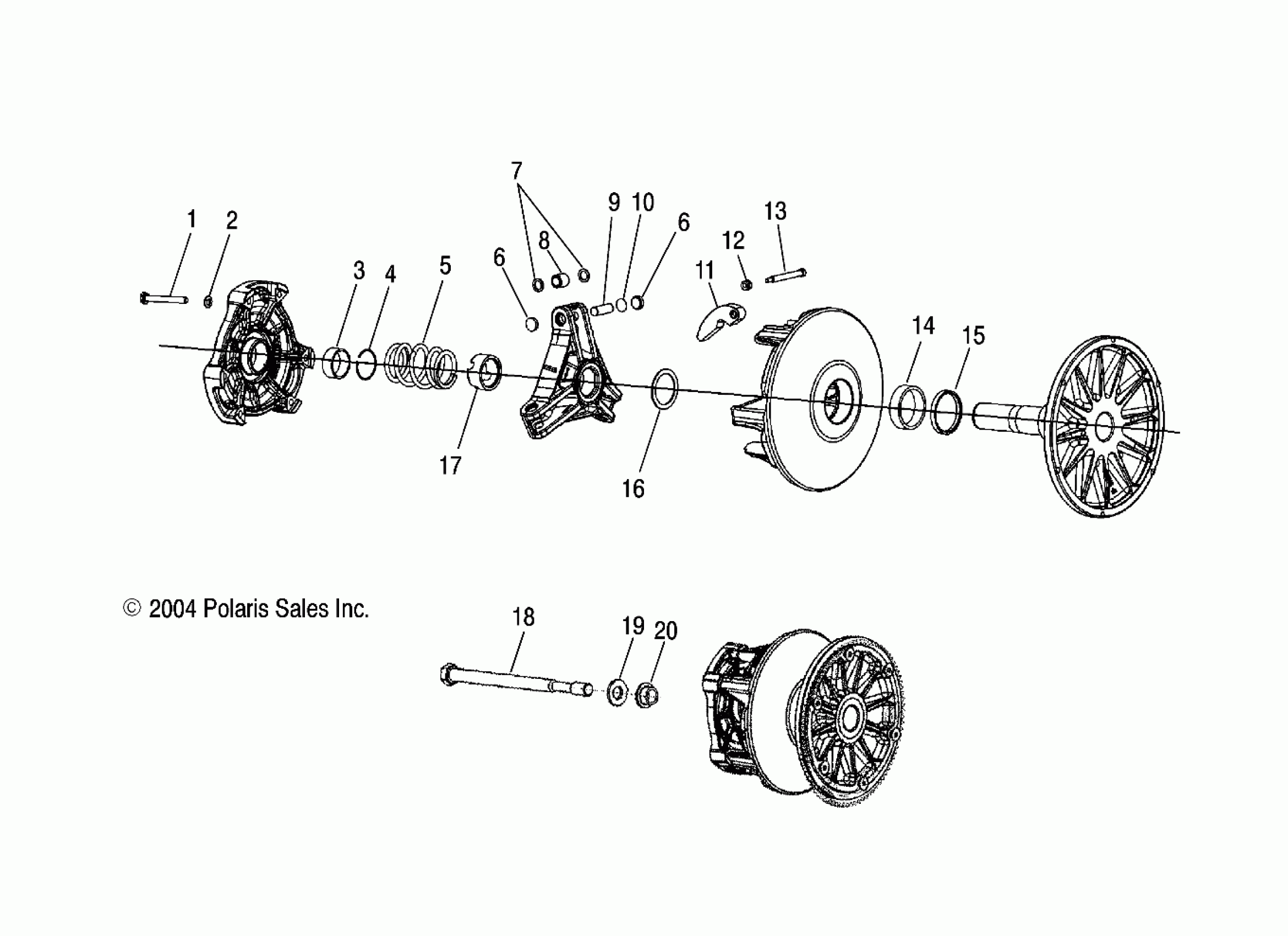

Polaris 900 RMK ALL OPTIONS - S05PL8/PM8/PN8 DRIVE CLUTCH - S05PL8/PM8/PN8/ALL OPTIONS (4992929292C03) Diagram

#

Description
Price

-

Asm., Drive Clutch, Basic 223 [Less 5,11]

1322535

Unavailable

1

Bolt

7512265

$3.99

2

WASHER, SPRING LOCK

7552801

$1.59

3

BEARING COVER GARMAX

3514347

$36.41

4

RING-RETAINING,COVER

7710417

$1.49

5

SPRING, CLUTCH, BLACK/GREEN

7042083

$56.65

6

BUTTON, GUIDE

5430445

$6.39

6

BUTTON, GUIDE

5430445

$6.39

7

WASHER,MULTILUBE

5430945

$1.59

8

ASM-ROLLER AND BUSHING

1321622

$32.37

9

Pin, Roller

5133054

Unavailable

10

Kit - Shim, Drive Clutch

2200387

$24.27

11

ASM., WEIGHT/BUSHING, 10-70

1322414

$40.46

12

NUT, FLEXLOC

7541906

$3.19

13

PIN-WEIGHT,HARDENED,1/4X2.00

7515105

$13.75

14

Bearing, Sleeve

3576502

$23.99

15

INSERT-MOVEABLE

5010188

$7.99

16

SPACER, .050

5210754

Unavailable

16

SPACER, .025

5242981

Unavailable

16

SPACER, .020

5210752

Unavailable

16

SPACER, .032

5210753

Unavailable

16

Spacer, .130

5134018

Unavailable

17

NUT-JAM

5020425

$23.99

18

SCREW

7518412

$34.99

19

Washer

7556336

$17.99

20

WASHER-CLUTCH RET,M14

5132441

$23.99
