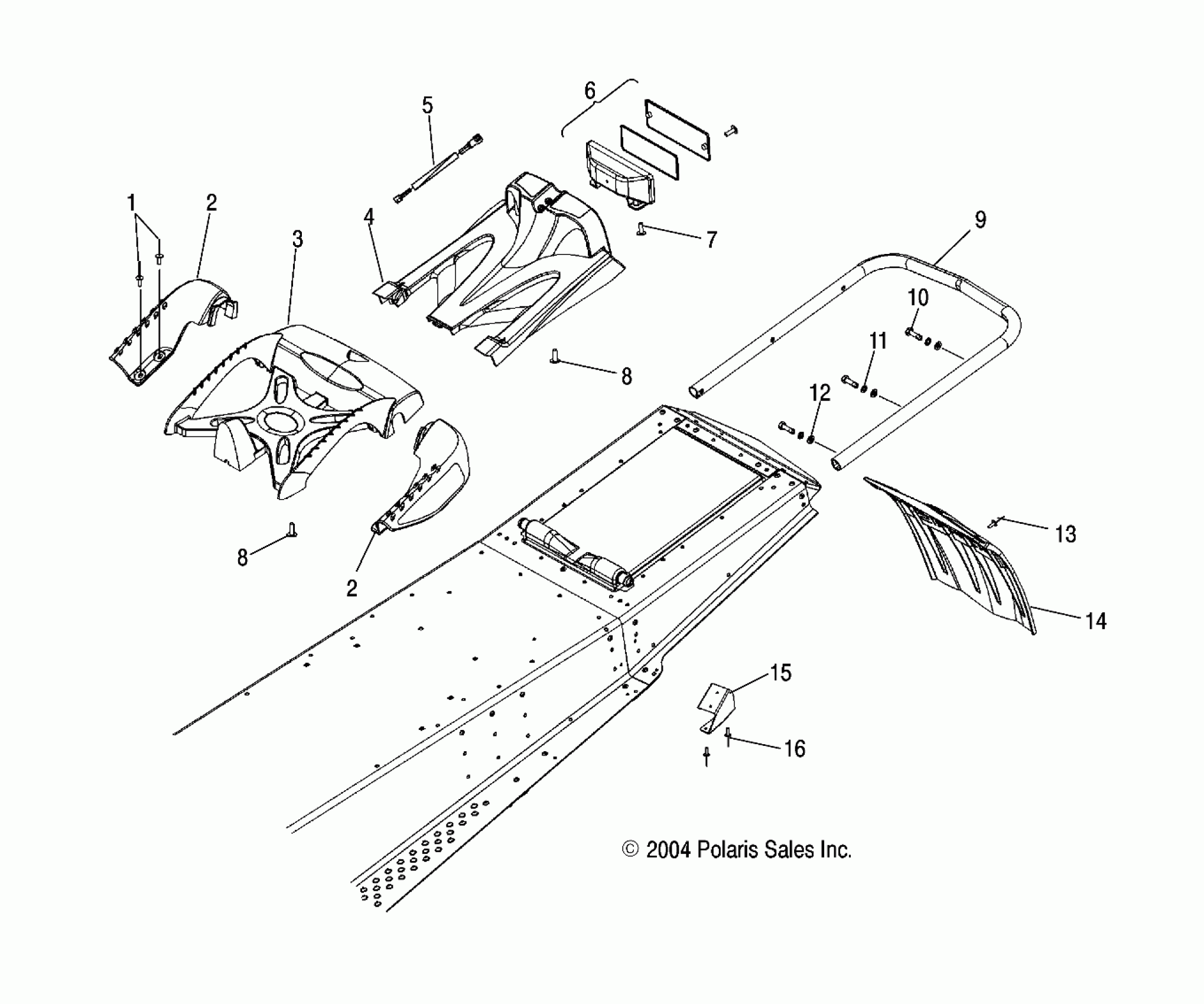

Polaris 900 RMK ALL OPTIONS - S05PL8/PM8/PN8 CHASSIS, REAR - S05PL8/PM8/PN8/ALL OPTIONS (4992929292A04) Diagram

#

Description
Price

1

RIVET

7621467

$1.49

2

Cover, Gripper/Deicer, Black, LH [144/151]

5430014-070

Unavailable

2

Cover, Gripper/Deicer, Black, RH [144/151]

5430015-070

Unavailable

2

Cover, Gripper, Long, Black, LH [159/166]

5435566-070

$6.63

2

Cover, Gripper, Long, Black, RH [159/166]

5435567-070

$6.63

2

Cover, Gripper/Deicer, Black, LH [144/151]

5430014-070

Unavailable

2

Cover, Gripper/Deicer, Black, RH [144/151]

5430015-070

Unavailable

2

Cover, Gripper, Long, Black, LH [159/166]

5435566-070

$6.63

2

Cover, Gripper, Long, Black, RH [159/166]

5435567-070

$6.63

3

Rack, Rear, Black [144/151]

5435237-070

$41.59

3

Rack, Rear, 159/166 Black

5435371-070

$53.59

4

Cover, Closeoff, 144/151, Black

2632983-070

Unavailable

4

Cover, Closeoff Cooler, 159/166, Black

2632984-070

$93.32

5

Harness, Taillight

2410543

$41.59

6

Bulb, Taillight

4030043

$6.46

6

Gasket

4032015

Unavailable

6

Lens

4032014

$36.41

6

Asm., Taillight

2410544

$91.19

6

Screw

7518019

$2.63

7

SCREW

7512026

$1.49

8

SCR-#14X1 HI/LO-PH-PN TRX-M

7518158

$4.79

8

SCR-#14X1 HI/LO-PH-PN TRX-M

7518158

$4.79

9

Bumper, Rear, Natural [144/151]

2632988-309

$124.99

9

Asm., Bumper, Rear, Long, Natural [159/166]

2633013-309

Unavailable

10

Bolt

7512113

$3.99

11

WASHER, SPRING LOCK

7552801

$1.59

12

Washer, Flat

7558301

$1.49

13

RIVET

7621472

$1.49

14

Flap, Snow, Black/White

5434954-1038

Unavailable

15

Bracket, Gripper Cover, 144/151, LH

5247876

$9.05

15

Bracket, Gripper Cover, 144/151, RH

5247877

$9.84

15

Bracket, Gripper Cover, Long, LH [159/166]

5248576

$6.63

15

Bracket, Gripper Cover, Long, RH [159/166]

5248577

$6.63

16

RIVET-3/16-.090-.290

7661637

$1.49
