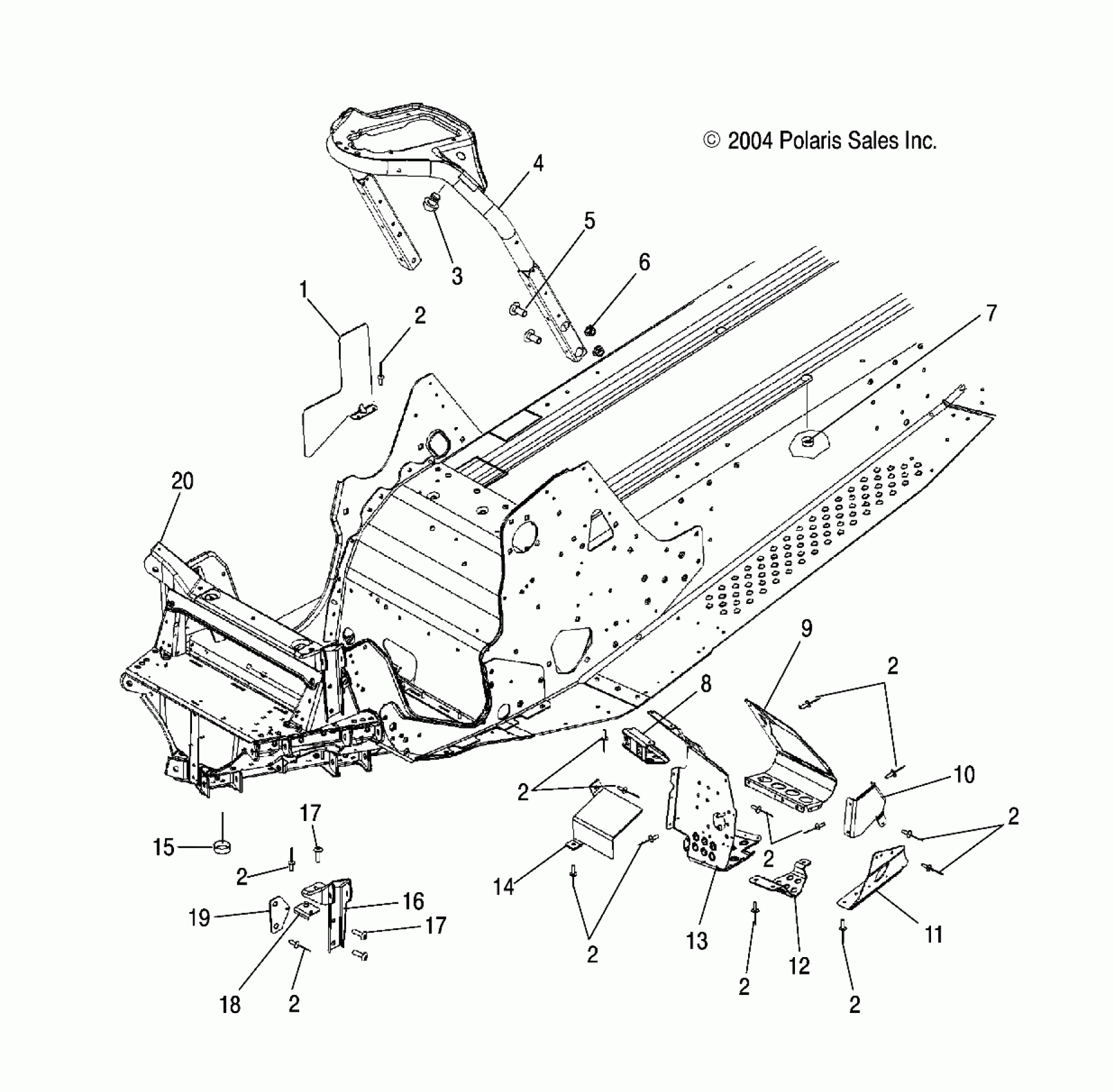

Polaris 900 RMK ALL OPTIONS - S05PL8/PM8/PN8 CHASSIS, FRONT - S05PL8/PM8/PN8/ALL OPTIONS (4992929292A03) Diagram

#

Description
Price

1

Shield, Heat

5248618

$5.75

2

RIVET-3/16-.090-.290

7661637

Unavailable

2

RIVET-3/16-.090-.290

7661637

Unavailable

2

RIVET-3/16-.090-.290

7661637

Unavailable

2

RIVET-3/16-.090-.290

7661637

Unavailable

2

RIVET-3/16-.090-.290

7661637

Unavailable

2

RIVET-3/16-.090-.290

7661637

Unavailable

2

RIVET-3/16-.090-.290

7661637

Unavailable

2

RIVET-3/16-.090-.290

7661637

Unavailable

2

RIVET-3/16-.090-.290

7661637

Unavailable

2

RIVET-3/16-.090-.290

7661637

Unavailable

3

Dampener, Vibration

5411576

$7.99

4

Hoop, Steering, Black

1014790-067

$103.19

5

Bolt, Carriage

7512377

$4.79

6

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

7

Plug, Cap

7080592

Unavailable

8

Mount, Plenum

5248405

$4.95

9

Toe Clip, LH

5248406

$13.19

9

Toe Clip, RH

5248407

Unavailable

10

Support, Footrest, Bumper, RH

5248401

Unavailable

10

Support, Footrest, Bumper, LH

5248402

Unavailable

11

Support, Footrest, Lower, LH

5248397

Unavailable

11

Support, Footrest, Lower, RH

5248398

Unavailable

12

Leg, Support, LH

5248403

Unavailable

12

Leg, Support, RH

5248404

$3.51

13

Support, Footrest, Front, LH

5248399

$93.32

13

Support, Footrest, Front, RH

5248400

Unavailable

14

Guard, Belt

5247861

$12.39

15

Plug, Hole

7081076

$3.22

16

Tower, Shock, Black, LH

1014795-067

Unavailable

16

Tower, Shock, Black, RH

1014796-067

$118.99

17

Screw

7517810

$3.99

17

Screw

7517810

$3.99

18

Asm., Plate, Nut, LH

1014821

$3.60

18

Asm., Plate, Nut, RH

1014822

$3.60

19

Asm., Plate, Nut [Shock Tower]

1014820

Unavailable

20

Asm., Chassis, 151

1014325-309

$1,209.99

20

Asm., Chassis, 159/166

1014379-309

$1,249.99
