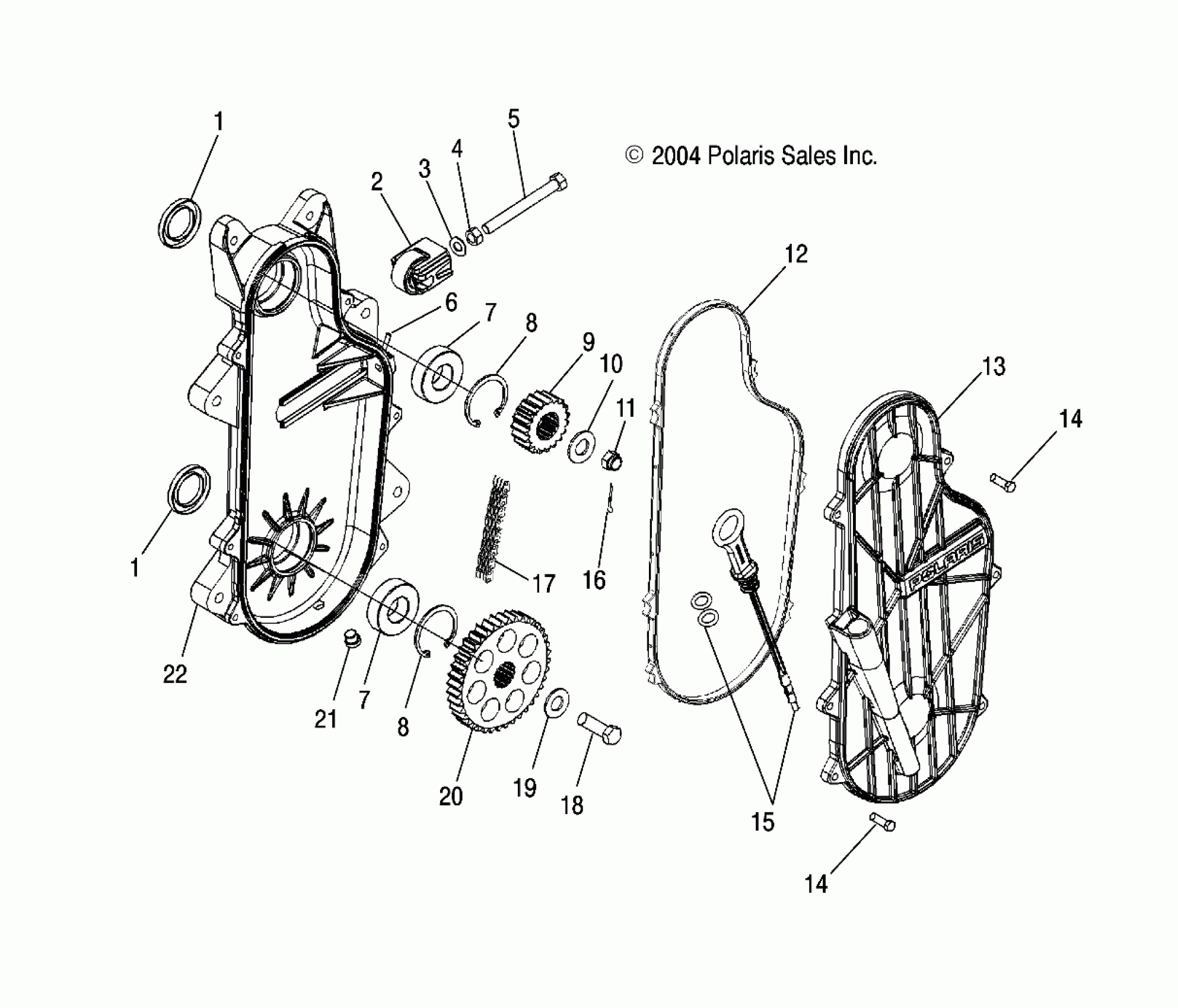

Polaris 900 RMK ALL OPTIONS - S05PL8/PM8/PN8 CHAINCASE - S05PL8/PM8/PN8/ALL OPTIONS (4992929292C01) Diagram

#

Description
Price

1

SEAL-OIL

3610030

$20.22

1

SEAL-OIL

3610030

$20.22

2

Asm., Tightener, Chain

1341437

$71.41

3

Washer

7556340

$3.19

4

Nut, Hex

7547304

$3.19

5

Screw

7512470

Unavailable

6

Pin, Roll

7661867

$2.39

7

BEARING, BALL

3514309

$15.87

7

BEARING, BALL

3514309

$15.87

8

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

8

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

9

SPROCKET, 19T, 3/4W

3221095

$44.99

10

Washer, Spring

7571620

$7.19

11

Nut

7547202

$5.59

12

Gasket, Chaincase Cover

5812575

Unavailable

13

Cover, Chaincase

5435735

Unavailable

14

SCREW

7512242

$2.39

14

SCREW

7512242

$2.39

15

O-RING

5410675

$1.60

15

Asm., Dipstick [Incl. O-Ring]

1341481

$17.43

16

Pin, Cotter

7661203

$1.49

17

Chain, 90P, 3/4W

3221158

Unavailable

18

Screw

7518358

Unavailable

19

WASHER

7556130

$6.39

20

SPROCKET, 39T

3222108

$59.99

21

PLUG

7052115

$5.65

22

Chaincase

5134758

Unavailable
