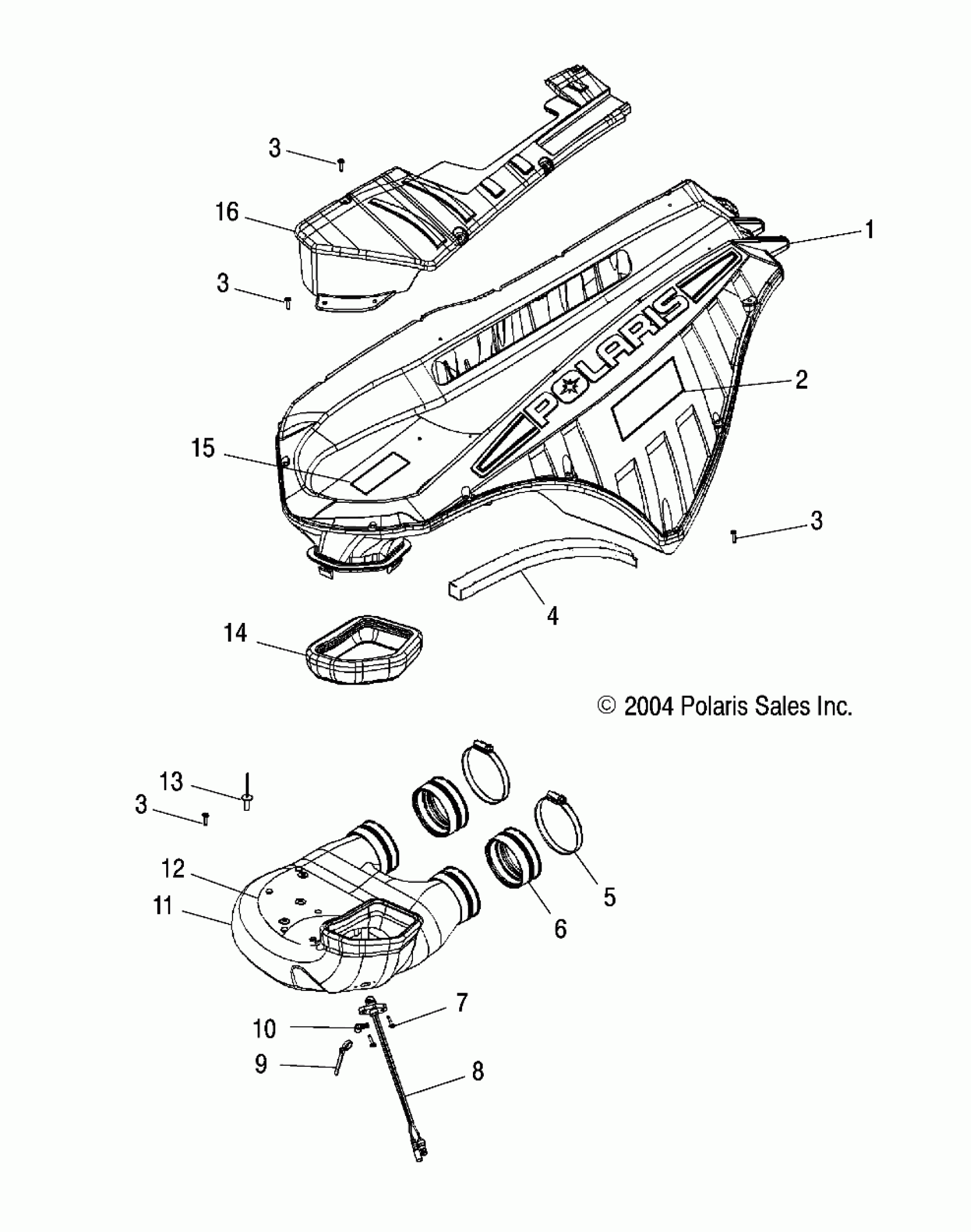

Polaris 900 RMK ALL OPTIONS - S05PL8/PM8/PN8 AIR INTAKE SYSTEM - S05PL8/PM8/PN8/ALL OPTIONS (4992929292C06) Diagram

#

Description
Price

1

Asm., Air Silencer

1253513

$539.99

1

Plenum, Intake, Upper

5434926

$539.99

1

Plenum, Intake, Lower

5435060

$539.99

1

Foil, Plenum Lower

5812618

$4.95

1

Plate, Baffle, Side

5812639

$5.75

1

Foam, Plenum, Internal, .5 x 2

5812647

Unavailable

1

Foam, Plenum, Internal, 1 x 7.5

5812648

$1.49

1

Foam, Plenum, Internal, 1 x 9

5812649

$1.49

1

Foam, Plenum, Internal, 1 x 13.5

5812650

$1.49

2

Decal, Belt Removal

7171037

Unavailable

3

SCREW

7512026

$1.49

3

SCREW

7512026

$1.49

3

SCREW

7512026

$1.49

3

SCREW

7512026

$1.49

4

Foam, Seal, 1.5x19

5812706

$5.75

5

Clamp, Narrow

7080909

$7.99

6

Boot

5412359

$24.19

7

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.49

8

Sensor, Air Temp

4011113

$137.60

9

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

10

Clamp, Nylon

7080539

$4.79

11

Asm., Boost Box [Incl. 12]

1202972

Unavailable

11

Foil

5812620

$4.95

11

Foil

5812622

$1.59

12

Plate, Reinforcement

5248258

$28.56

13

Rivet

7621457

$1.49

14

Boot, Boost Box Rubber

5412761

$11.32

15

Decal, Engine and Clutch

7172672

Unavailable

16

Cover, Plenum

5435774

$13.99
