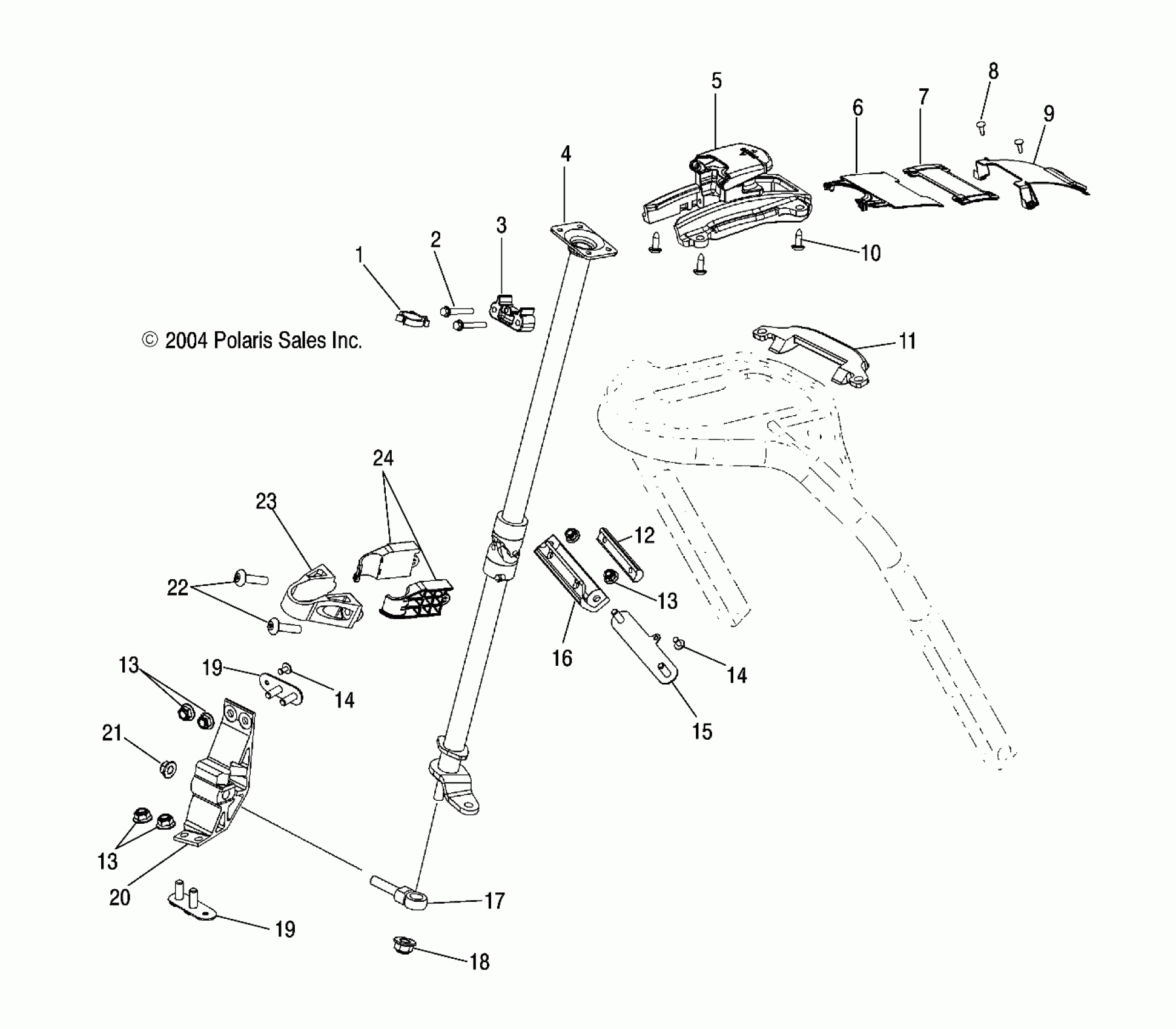

Polaris 900 RMK ALL OPTIONS - S05PL8/PM8/PN8 ADJUSTABLE STEERING POST - S05PL8/PM8/PN8/ALL OPTIONS (4992929292B07) Diagram

#

Description
Price

1

Clip, Cable

7670164

$1.49

2

Screw

7512093

$1.49

3

Block, Steering Post, Front Half

5436167

$13.99

4

Post, Steering, Black

1821529-067

Unavailable

5

Asm., Block, Steering Adjust

1822780

Unavailable

6

Cover, Adjust, Steering, Upper

5435537

$1.83

7

Cover, Adjust, Steering, Center

5435536

$1.43

8

Rivet

7661864

Unavailable

9

Cover, Adjust, Steering, Lower

5435538

$7.43

10

Screw

7518352

$3.19

11

Wedge, Adjust Cover

5412694

$4.15

12

Strap, Bearing Mount

5134447

$12.39

13

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

13

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

13

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

14

RIVET-3/16-.090-.290

7661637

$1.49

14

RIVET-3/16-.090-.290

7661637

$1.49

15

Plate, Mid

1014646

$8.23

16

Mount, Steering Upper

5134446

$21.70

17

Joint, Ball, Steering

7061122

$33.91

18

NUT-3/8-24 FLG LOC

7547263

$3.19

19

Plate, Lower, Bracket

1014645

$9.91

19

Plate, Lower, Bracket

1014645

$9.91

20

Mount, Steering Ball

5134443

$25.79

21

Nut, Flange

7542522

$5.59

22

Screw

7516317

$3.19

23

Mount, Steering, Bushing

5134445

$24.79

24

Bushing, Steering Post, LH

5435511

$5.83

24

Bushing, Steering Post, RH

5435512

$6.63
