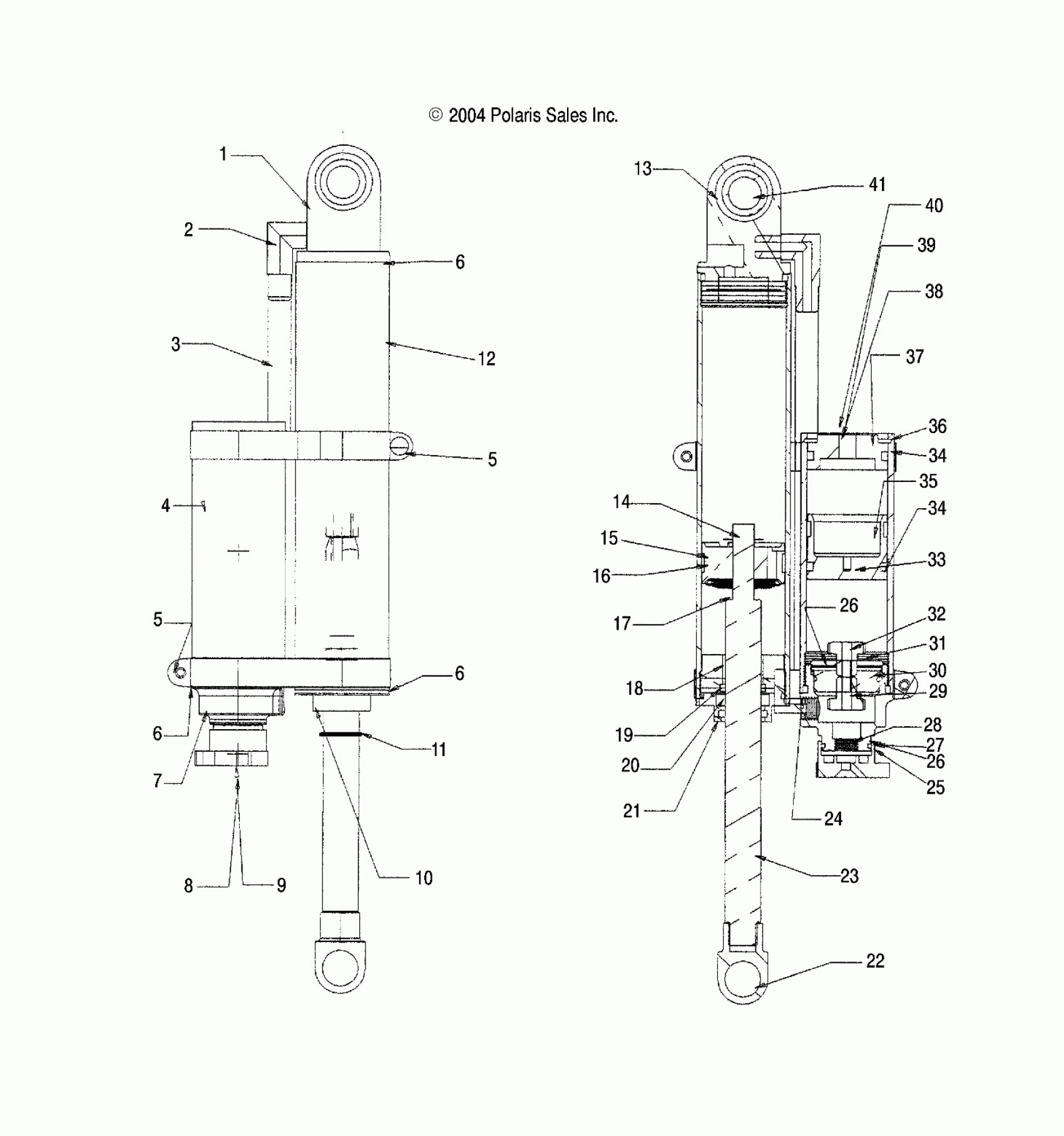

Polaris 900 FUSION - S05MP8DS SHOCK REAR TRACK (WALKER EVANS) - S05MP8DS/DSA/DSB/DSC (4992569256D01) Diagram

#

Description
Price

-

Shock, Rear Track

7043097

$514.99

1

Loop, Body

1800224

$119.99

2

FITTING

1800205

$55.99

3

Hose

1800212

Unavailable

4

Body, Reservoir

1800213

$74.39

5

CLAMP, HOSE

1800022

$12.79

5

CLAMP, HOSE

1800022

$12.79

6

Body, O-Ring

1800027

$2.02

6

Body, O-Ring

1800027

$2.02

6

Body, O-Ring

1800027

$2.02

7

Housing, Adjust

1800220

$139.99

8

Knob

1800218

$51.99

9

Screw

1800203

$2.39

10

Asm., Shaft Seal Housing

1800131

Unavailable

11

O-RING

1800095

$1.49

12

Body

1800225

$141.65

13

BUSHING

1800036

Unavailable

14

Nut

1800031

$3.99

15

Asm., Piston

1800230

$133.56

16

Band, Wear

1800026

Unavailable

17

Washer

1800118

$3.59

18

BUSHING, SHAFT

1800038

$12.79

19

O-Ring Shaft Seal Head

1800037

$1.60

20

Shaft Seal U-Cup

1800035

Unavailable

21

WIPER, D-TYPE

1800034

$31.99

22

Eyelet

1800096

$101.17

23

Shaft

1800228

Unavailable

24

Elbow

1800113

$29.99

25

SPRING-COMP .025X.3, 40.5#

1800128

$10.39

26

BALL, D-TENT

1800127

$6.39

26

BALL, D-TENT

1800127

$6.39

27

O-Ring, Knob

1800221

Unavailable

28

O-Ring, Stud

1800215

$7.68

29

WASHER

1800050

$3.99

30

PISTON

1800217

$56.65

31

Shim, Valve

1800070

$6.59

32

Screw w/Thru Hole

1800219

$11.19

33

O-RING, BLEED SCREW

1800210

$1.59

33

Screw, Bleed

1800211

$2.23

33

Reservoir Piston w/Bleed Screw

1800214

$35.99

34

Reservoir, O-Ring

1800028

$1.60

34

Reservoir, O-Ring

1800028

$1.60

35

Band, Wear

1800029

Unavailable

36

RING, SNAP, RESERVOIR

1800019

$6.46

37

Cap, End

1800106

Unavailable

38

Valve, Needle

1800107

$16.35

39

O-Ring

1800108

$1.49

40

SCREW, BUTTON HEAD

1800109

$3.19

41

SLEEVE

1800032

$19.99
