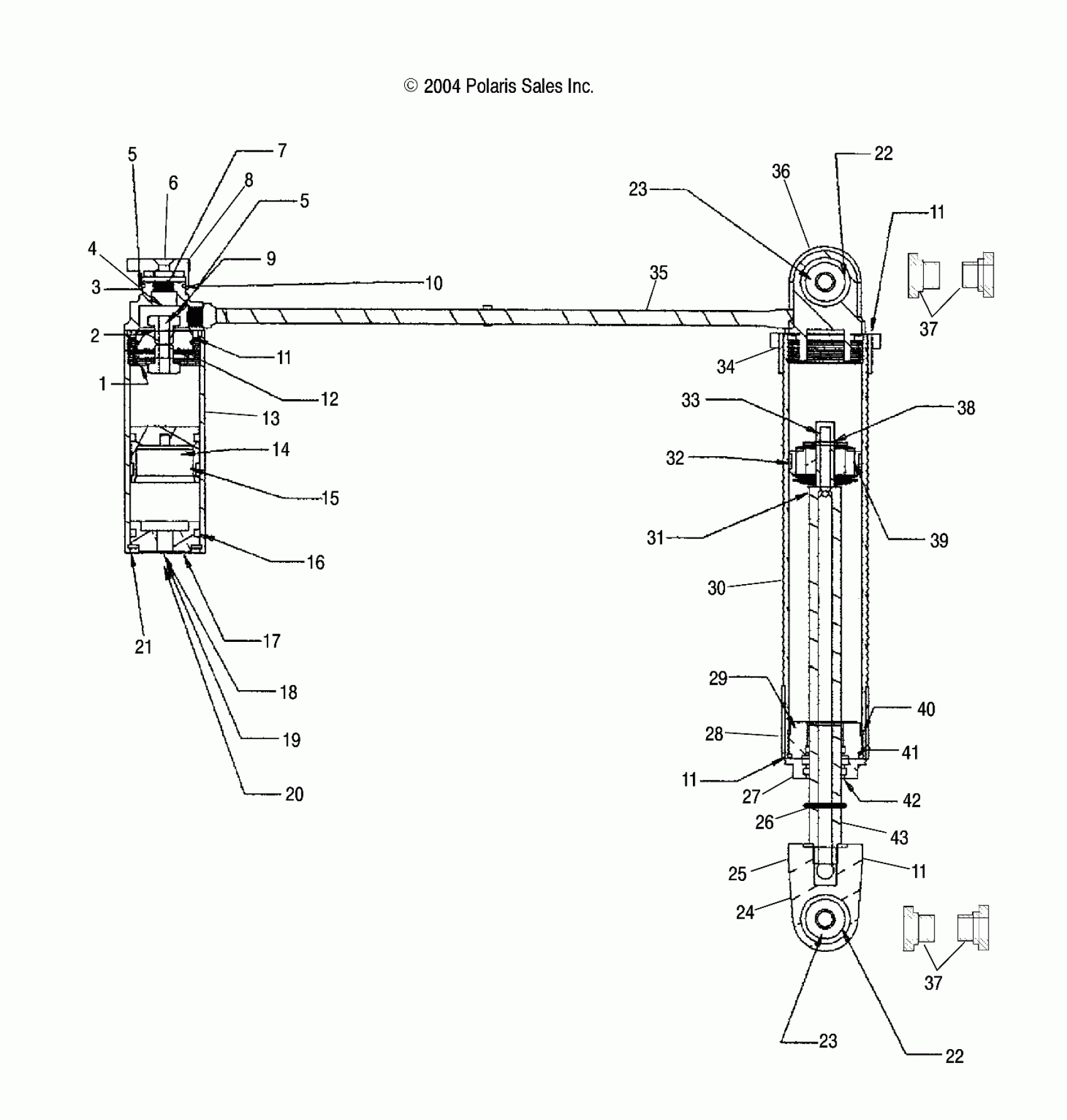

Polaris 900 FUSION - S05MP8DS SHOCK IFS (WALKER EVANS) - S05MP8DS/DSA/DSB/DSC (4992569256C11) Diagram

#

Description
Price

-

Shock, IFS

7043095

Unavailable

1

Shim, Valve

1800072

Unavailable

2

Shim, Valve

1800052

Unavailable

3

O-Ring, Stud

1800215

$7.68

4

Housing, Adjust

1800220

$139.99

5

BALL, D-TENT

1800127

$6.39

5

BALL, D-TENT

1800127

$6.39

6

Screw

1800203

$2.39

7

SPRING-COMP .025X.3, 40.5#

1800128

$10.39

8

Knob

1800218

$51.99

9

Screw w/Thru Hole

1800219

$11.19

10

O-Ring, Knob

1800221

Unavailable

11

Body, O-Ring

1800027

$2.02

11

Body, O-Ring

1800027

$2.02

11

Body, O-Ring

1800027

$2.02

11

Body, O-Ring

1800027

$2.02

12

PISTON

1800217

$56.65

13

Reservoir, Body

1800120

$89.03

14

O-RING, BLEED SCREW

1800210

$1.59

14

Screw, Bleed

1800211

$2.23

14

Reservoir Piston w/Bleed Screw

1800214

$35.99

15

Band, Wear

1800029

Unavailable

16

Reservoir, O-Ring

1800028

$1.60

17

Cap, End

1800106

Unavailable

18

Valve, Needle

1800107

$16.35

19

O-Ring

1800108

$1.49

20

SCREW, BUTTON HEAD

1800109

$3.19

21

RING, SNAP, RESERVOIR

1800019

$6.46

22

RING, SNAP, END BEARING

1800041

$7.27

22

RING, SNAP, END BEARING

1800041

$7.27

23

BEARING, END

1800040

$94.99

23

BEARING, END

1800040

$94.99

24

Eyelet

1800103

Unavailable

25

SPRING, RETAINING RING

1800116

$60.70

26

O-RING

1800095

$1.49

27

Asm., Shaft Seal Housing

1800131

Unavailable

28

SLEEVE, WEAR

1800133

$23.99

29

BUSHING, SHAFT

1800038

$12.79

30

IFS, Threaded Body

1800100

$87.30

31

WASHER

1800204

$3.99

32

Band, Wear

1800026

Unavailable

33

Nut

1800031

$3.99

34

RETAINER, SPRING

1800046

$36.41

35

Asm., Hose

1800192

$91.99

36

Loop, Body

1800098

Unavailable

37

Spacer

5133320

Unavailable

37

Spacer

5133320

Unavailable

38

WASHER

1800050

$3.99

39

Asm., Piston w/Band

1800130

$129.51

40

O-Ring Shaft Seal Head

1800037

$1.60

41

Shaft Seal U-Cup

1800035

Unavailable

42

WIPER, D-TYPE

1800034

$31.99

43

Shaft

1800102

Unavailable
