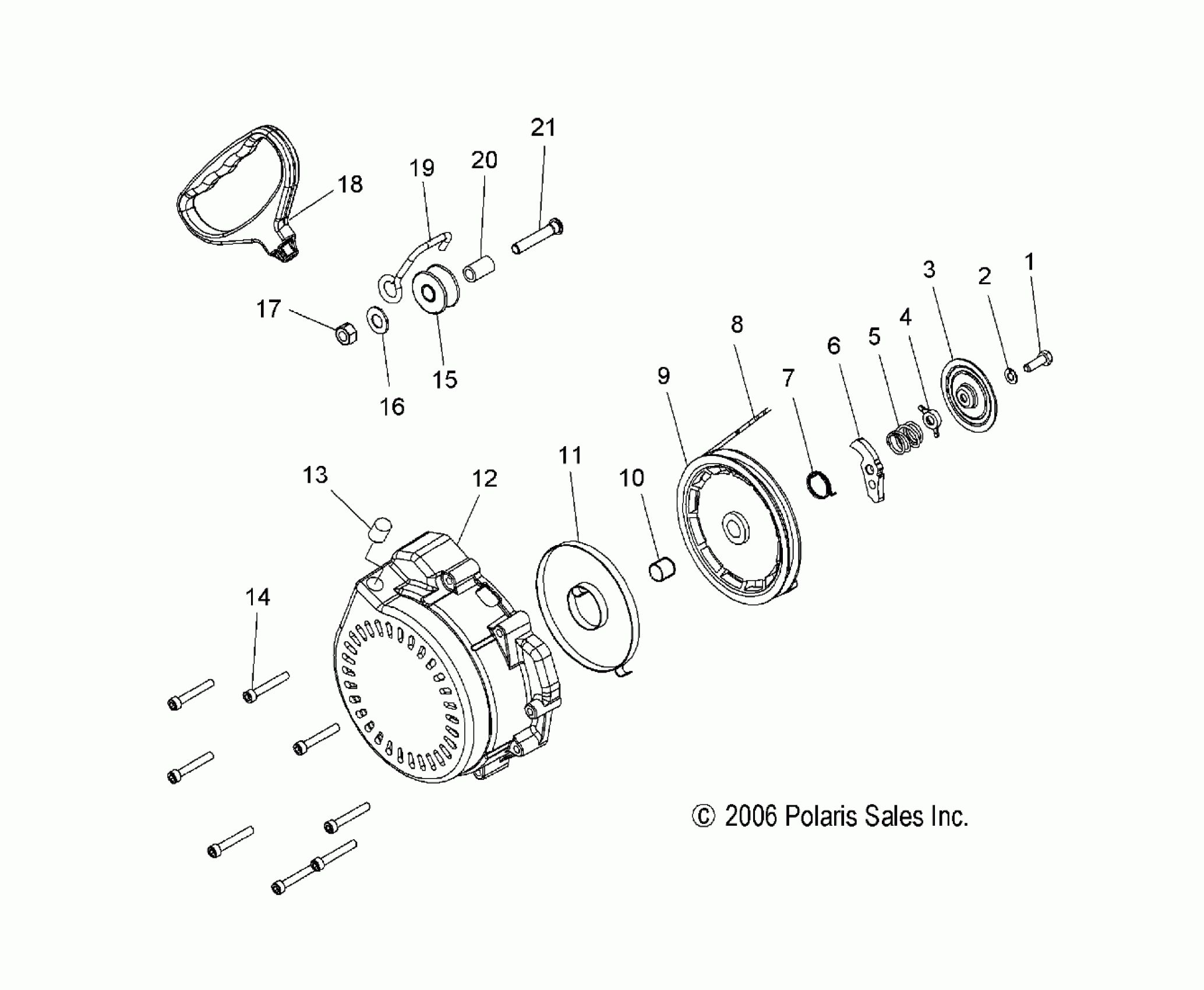

Polaris 900 FUSION - S05MP8DS RECOIL - S05MP8DS/DSA/DSB/DSC (4992569256D12) Diagram

Description

Price

Asm., Recoil

1202453

$214.51

SCREW

7517984

$4.79

WASHER

7556319

Unavailable

PLATE, FRICTION

3021650

$28.32

Guide, Ratchet

5435488

$12.94

Spring, Friction

3021649

$24.27

RATCHET

5247844

$15.99

Spring, Return

3040166

Unavailable

ROPE, STARTER

3040169

$24.27

Reel, Recoil

5434936

$214.51

Bushing

5435487

$3.99

SPRING, SPIRAL

3021648

Unavailable

Housing, Recoil Starter

5631420

$214.51

BUSHING,ROPE SLIDE

3040171

$3.48

SCREW

7510005

$5.70

ROLLER, RECOIL

5435390

$16.44

Washer

7558403

$4.79

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

HANDLE, RECOIL, BLACK

5435154-070

$8.89

Guide, Rope

5334646

$28.32

Bushing, Roller

5134265

$4.75

Screw

7518419

$7.99
