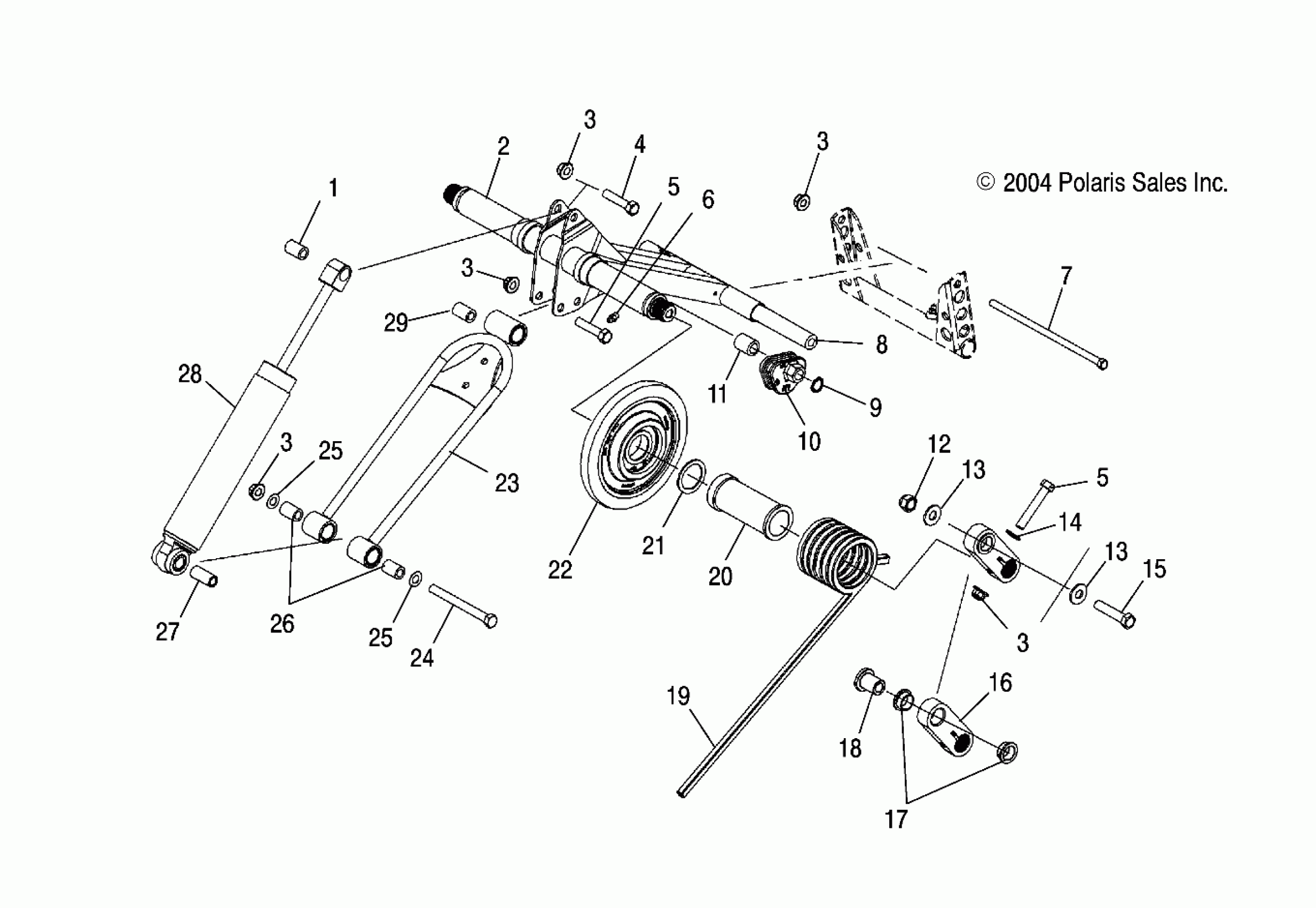

Polaris 900 FUSION - S05MP8DS REAR TORQUE ARM - S05MP8DS/DSA/DSB/DSC (4992569256B14) Diagram

#

Description
Price

1

BUSHING

5010422

$11.99

2

Arm, Torque, Rear, Black

1542113-067

$179.83

3

NUT-3/8-24 FLG LOC

7547263

$3.19

3

NUT-3/8-24 FLG LOC

7547263

$3.19

3

NUT-3/8-24 FLG LOC

7547263

$3.19

3

NUT-3/8-24 FLG LOC

7547263

$3.19

3

NUT-3/8-24 FLG LOC

7547263

$3.19

4

SCREW

7512410

Unavailable

5

Screw

7515415

$1.49

5

Screw

7515415

$1.49

6

FITTING-LUBRICATION 1/4-28

7080424

$4.79

7

SCREW

7518241

$35.99

8

SHAFT

5133973

$24.27

9

CLIP-PUSH ON

7080394

$2.39

10

ROLLER-SPRING,TRI-ADJ,RH

5434590

$28.32

10

ROLLER-SPRING,TRI-ADJ,LH

5434589

$32.37

11

SPACER

5334285

$2.39

12

Nut, Nylok

7547066

$1.59

13

Washer, Flat

7555984

$2.39

13

Washer, Flat

7555984

$2.39

14

WASHER, FLAT

7556188

$3.19

15

BOLT

7518271

$3.19

16

Asm. Arm [Incl. 17]

1541967

$114.99

17

BUSHING

3514331

$19.99

18

SHAFT, FLANGE

5134046

$24.27

19

Spring, Torsion, 12.5, .359, Black, LH [Std.]

7043079-067

$113.32

19

Spring, Torsion, 12.5, .359, Black, RH [Std.]

7043080-067

$113.32

19

Spring, Torsion, 16.25, .405, Black, RH [Opt]

7043129-067

$139.99

19

Spring, Torsion, 16.25, .405, Black, LH [Opt]

7043128-067

$139.99

19

Spring, Torsion, 11.25, .359, Black, LH [Opt]

7043130-067

$89.90

19

Spring, Torsion, 11.25, .359, Black, RH [Opt]

7043131-067

$95.14

20

SLEEVE-TORSION SPRING

5434989

$3.99

21

Washer

7555939

Unavailable

22

BEARING

3514445

Unavailable

22

ASM., WHEEL

1590001

$72.84

22

Ring, Retaining

7710471

$13.59

23

BUSHING

5435722

$5.59

23

BUSHING

5435723

$5.59

23

Asm., Rod, Shock (Incl. Bushings)

1542167

$106.49

24

Screw

7518263

$3.99

25

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

25

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

26

Bushing

5134602

Unavailable

27

SLEEVE

5333905

$15.99

28

Shock, Rear Track (See Shock Rear Track Pg. D03 for Details)

7042218

$319.99

28

Shock, Rear Track (See Shock Rear Track (Walker Evans) Pg. D02 of Details)

7043097

$514.99

29

BUSHING

5134601

$15.99
