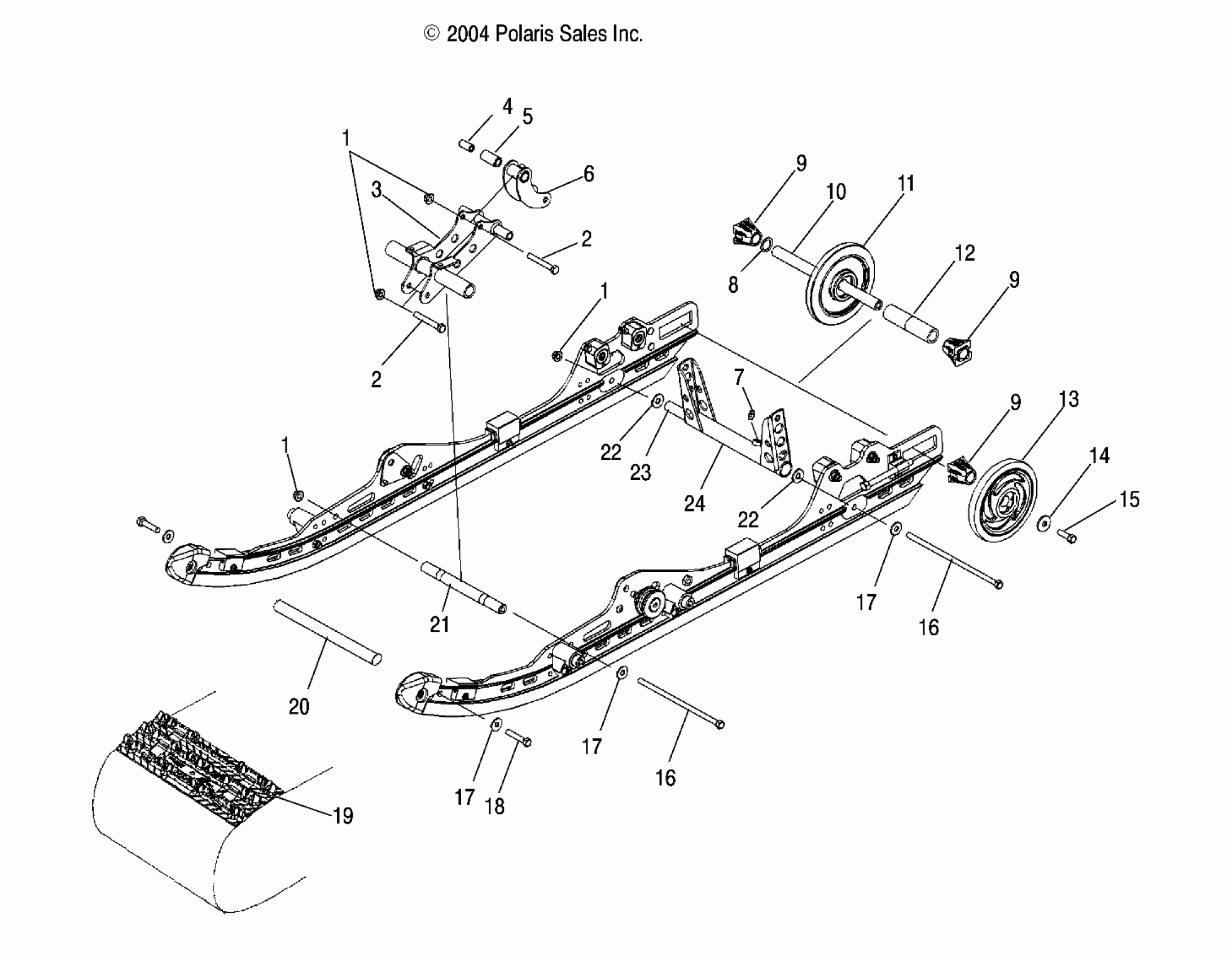

Polaris 900 FUSION - S05MP8DS REAR SUSPENSION - S05MP8DS/DSA/DSB/DSC (4992569256B11) Diagram

#

Description
Price

1

NUT-3/8-24 FLG LOC

7547263

$3.19

1

NUT-3/8-24 FLG LOC

7547263

$3.19

1

NUT-3/8-24 FLG LOC

7547263

$3.19

2

SCREW

7515417

$4.79

2

SCREW

7515417

$4.79

3

Bracket, H, Black

1542129-067

Unavailable

4

SLEEVE

5333906

$15.99

5

Bushing

5134600

Unavailable

6

Pivot, Shock, Black

1542059-067

$44.51

7

FITTING-LUBRICATION 1/4-28

7080424

$4.79

8

BUSHING

7555918

$1.59

9

SPACER-IDLER

5432535

$11.99

9

SPACER-IDLER

5432535

$11.99

9

SPACER-IDLER

5432535

$11.99

10

SHAFT, IDLER

5020744

$59.99

11

ASM., WHEEL

1594087

$72.84

12

SPACER-IDLER, LONG

5333285

$11.99

13

BEARING

3514384

$19.84

13

RING-RETAINING

7710444

$8.79

13

Asm., Wheel, Idler, Bright Silver

1590303-244

Unavailable

13

Asm., Wheel, Idler, Red

1590303-293

$48.56

14

WASHER

7556130

$6.39

15

BOLT

7517731

$1.49

16

SCREW

7517921

$23.99

16

SCREW

7517921

$23.99

17

WASHER, FLAT

7556188

$3.19

17

WASHER, FLAT

7556188

$3.19

17

WASHER, FLAT

7556188

$3.19

18

SCREW

7518005

$3.19

19

CLIP, GUIDE

5222840

Unavailable

19

Track, Ripsaw

5412728

$699.00

20

SHAFT

5134078

$38.71

21

SHAFT

5134517

$28.32

22

Washer, Flat

7555893

$1.49

22

Washer, Flat

7555893

$1.49

23

SHAFT

5333404

$24.27

24

ARM, PIVOT, REAR, BLACK

1541928-067

$48.87
