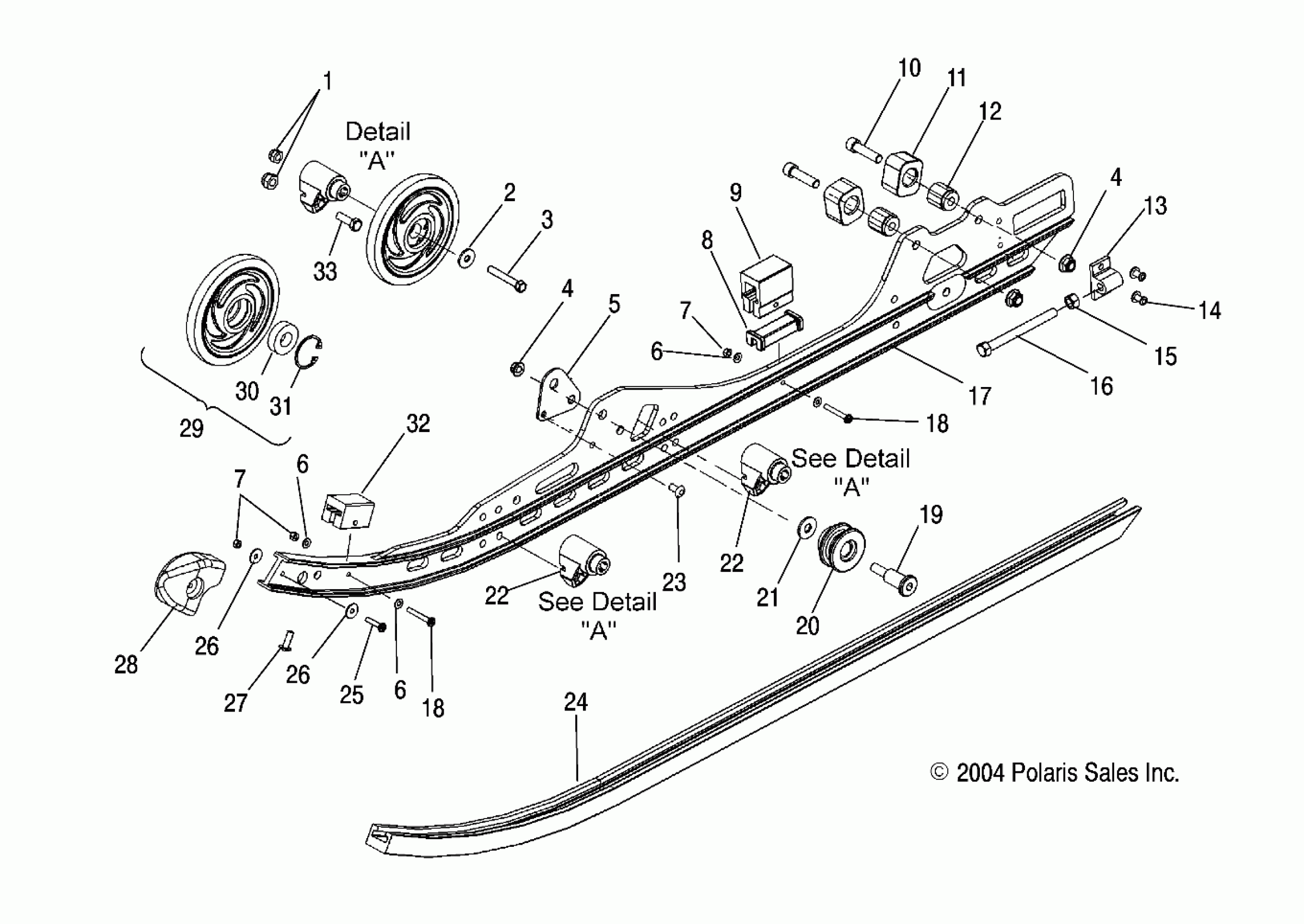

Polaris 900 FUSION - S05MP8DS RAIL MOUNTING - S05MP8DS/DSA/DSB/DSC (4992569256B12) Diagram

#

Description
Price

1

NUT-5/16-18 NYLOK-Y

7542324

$1.49

2

Washer, Spring

7556179

$7.99

3

Screw

7515346

$5.59

4

NUT-3/8-24 FLG LOC

7547263

$3.19

4

NUT-3/8-24 FLG LOC

7547263

$3.19

5

BRACKET, RAIL REINFORCEMENT

5248414

$36.41

6

Washer, Flat

7555783

$3.99

6

Washer, Flat

7555783

$3.99

6

Washer, Flat

7555783

$3.99

7

Nut, Nylok

7541925

$1.49

7

Nut, Nylok

7541925

$1.49

8

LINER-BUMPER

5432946

$9.70

9

BUMPER, JOUNCE, REAR

5521498

$8.89

10

BOLT

7515537

$10.99

11

BUMPER, PIVOT ARM

5410925

$12.94

12

MOUNT, BUMPER

5131113

$28.32

13

BLOCK, IDLER BOLT ADJUSTING

5130530

$32.37

14

RIVET

7621501

$2.39

15

NUT

7542404

$1.59

16

SCREW

7517227

$7.19

17

Asm., Rail, LH [Incl. 6-9,11,13,14,25,26,28,32]

1542086

$329.99

17

Asm., Rail, RH [Incl. 6-9,11,13,14,25,26,28,32]

1542087

$308.99

18

Screw

7510504

$6.76

18

Screw

7510504

$6.76

19

Screw

7518359

$5.99

20

ROLLER, SPRING

5432982

$9.70

21

WASHER

7555983

Unavailable

22

BLOCK, MOUNT, WHEEL

5631446

$24.27

22

BLOCK, MOUNT, WHEEL

5631446

$24.27

23

RIVET

7661845

$1.49

24

Hi-Fax

5521632

$39.98

25

Bolt

7518335

Unavailable

26

WASHER

7555792

$4.79

26

WASHER

7555792

$4.79

27

Screw

7515199

$1.49

28

Cap, Rail Tip

5435527

$27.78

29

Asm., Wheel, Indy Red [Incl. 30,31]

1590387-293

$52.60

29

Asm., Wheel, Bright Silver [Incl. 30,31]

1590387-244

$52.60

30

BEARING [1 PER WHEEL]

3514384

$19.84

31

RING-RETAINING [1 PER WHEEL]

7710444

$8.79

32

BUMPER, JOUNCE, FRONT

5521499

$8.89

33

BOLT

7515317

$4.79
