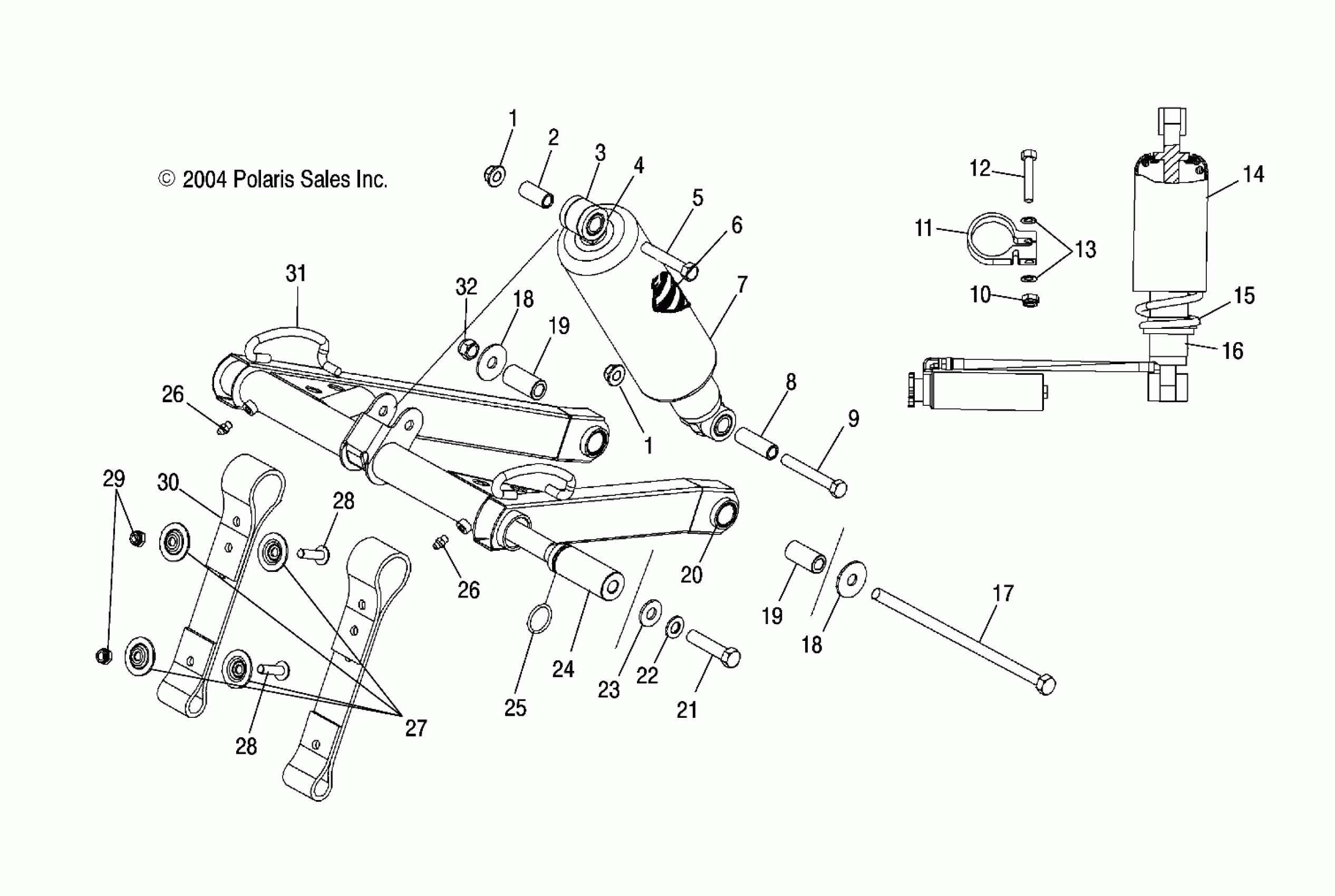

Polaris 900 FUSION - S05MP8DS FRONT TORQUE ARM - S05MP8DS/DSA/DSB/DSC (4992569256B13) Diagram

#

Description
Price

1

NUT-3/8-24 FLG LOC

7547263

$3.19

1

NUT-3/8-24 FLG LOC

7547263

$3.19

2

SLEEVE

5333905

$15.99

3

Shock, Front Track

7042327

Unavailable

4

Retainer, Slotted Spring

5630580

Unavailable

5

Screw

7515415

$1.49

6

Spring, Compression, Black

7042050-067

$106.49

7

SHIELD, SPRING

5433503

$24.27

8

SLEEVE

5333906

$15.99

9

SCREW

7515417

$4.79

10

NUT, NYLOK

7542344

$3.99

11

CLAMP, RESERVOIR

5132832

$23.99

12

Bolt

7512329

$3.99

13

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

14

SHIELD, SPRING

5433503

$24.27

15

Spring, Compression, Black

7042325-067

$16.47

16

Shock, Front Track

7043096

Unavailable

17

SCREW

7518339

$10.99

18

WASHER

7556156

$4.79

18

WASHER

7556156

$4.79

19

SHAFT

5133365

$39.99

19

SHAFT

5133365

$39.99

20

Bushing

5133682

Unavailable

21

SCREW

7518261

$3.99

22

WASHER-LOCK, 7/16-B

7552614

$1.59

23

Washer, Flat

7555984

$2.39

24

SHAFT, UPPER

5133892

$114.99

25

O-RING

5411411

$1.49

26

FITTING-LUBRICATION 1/4-28

7080424

$4.79

26

FITTING-LUBRICATION 1/4-28

7080424

$4.79

27

Washer, Domed

5220646

$2.39

28

SCREW

7518070

$5.59

28

SCREW

7518070

$5.59

29

NUT, NYLOK

7542344

$3.99

30

Strap, Limiter

5412610

Unavailable

31

Asm., Arm, Torque, Front, Black

1541948-067

Unavailable

32

Nut, Nylok

7547066

$1.59
