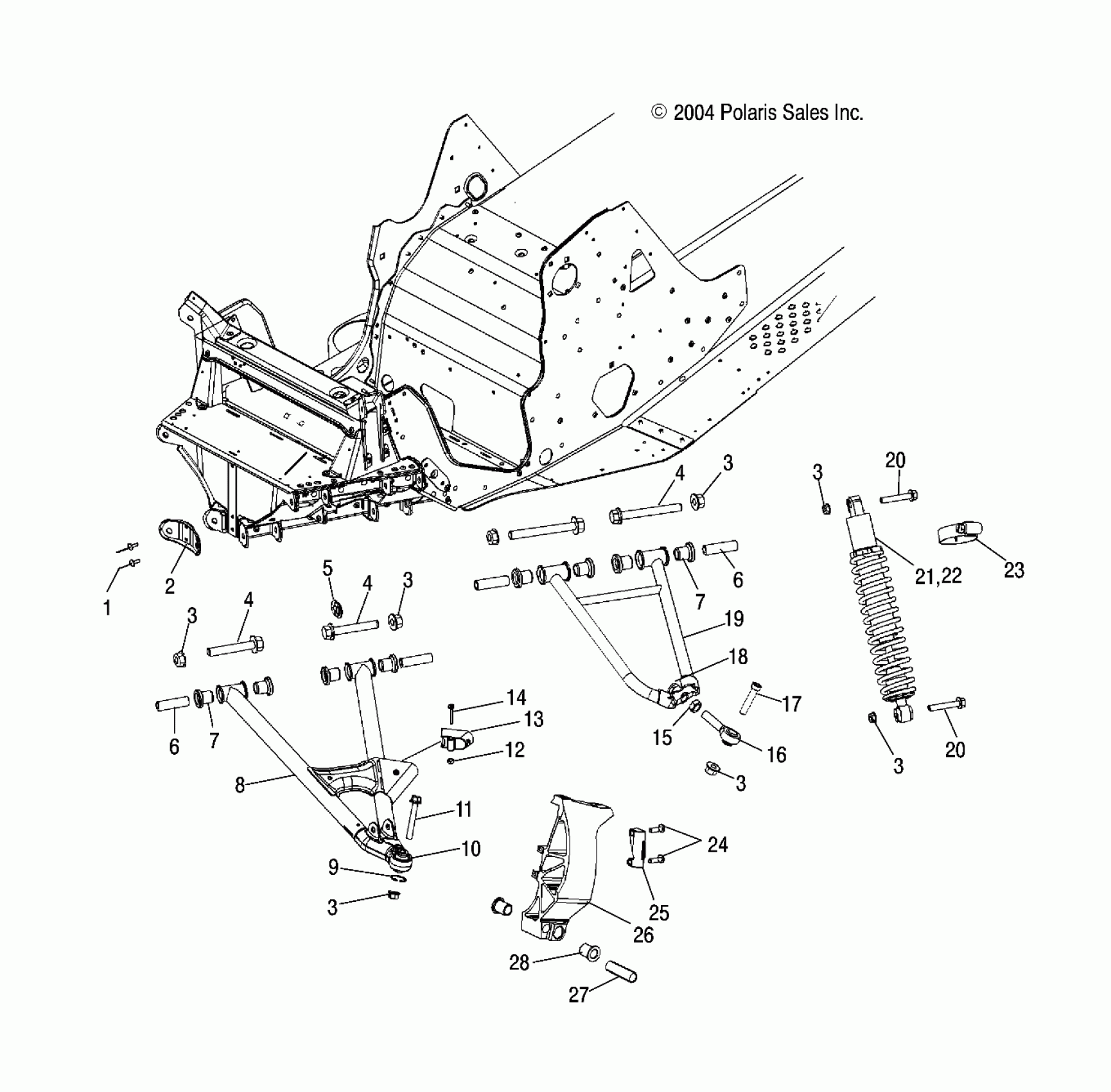

Polaris 900 FUSION - S05MP8DS FRONT SUSPENSION - S05MP8DS/DSA/DSB/DSC (4992569256B03) Diagram

#

Description
Price

1

RIVET-3/16-.090-.290

7661637

$1.49

2

BRACE, FRONT LOWER A-ARM

5247372

$54.99

3

NUT, FLANGED

7547180

$2.39

3

NUT, FLANGED

7547180

$2.39

3

NUT, FLANGED

7547180

$2.39

3

NUT, FLANGED

7547180

$2.39

3

NUT, FLANGED

7547180

$2.39

3

NUT, FLANGED

7547180

$2.39

3

NUT, FLANGED

7547180

$2.39

4

SCREW

7518384

$3.99

4

SCREW

7518384

$3.99

4

SCREW

7518384

$3.99

5

Washer, Flat

7555893

$1.49

6

Shaft, Pivot

5133860

$11.60

6

Shaft, Pivot

5133860

$11.60

7

BUSHING, PIVOT

5434932

$6.39

7

BUSHING, PIVOT

5434932

$6.39

8

Kit, Lower Control Arm, RH (Incl. 3,6-10,12-14)

2202935

Unavailable

8

Kit, Lower Control Arm, LH (Incl. 3,6-10,12-14)

2202934

Unavailable

9

RING, RETAINING

7710539

$2.39

10

BEARING, SPHERICAL, LOWER

-------

Unavailable

11

Screw

7518276

Unavailable

12

Nut, Nylok

7541925

$1.49

13

SLIDE, SWAY BAR

5435522

$24.27

14

Screw

7510504

$6.76

15

Nut, Jam

7542711

$2.39

16

Rod End

7061124

$48.56

17

Screw

7510003

$4.99

18

NUT-1/2-20 NYLOK,THIN HT-Y

7547104

$1.49

19

Kit, Upper Control Arm, LH (Incl. 3,6,7,12,15,16,18)

2202932

$195.99

19

Kit, Upper Control Arm, RH (Incl. 3,6,7,12,15,16,18)

2202933

$195.99

20

Screw

7518278

$8.99

20

Screw

7518278

$8.99

21

Spring, Compression, Indy Red

7041575-293

$72.60

21

Spring, Compression, Black

7041575-067

$52.60

21

SHOCK, IFS [SEE SHOCK IFS WALKER EVANS PG. C12 FOR DETAILS]

-------

Unavailable

21

Spring, Compression, Anniversary Gold

7041575-462

$52.60

22

Retainer, Spring

5630580

Unavailable

22

Spring, Compression, Black

7041576-067

$43.99

22

SHOCK, IFS, IFP [SEE SHOCK IFS RYDE FX PG. D3 FOR DETAILS]

-------

Unavailable

23

CLAMP-HOSE, 1.750-SS

7080560

$11.19

24

Screw

7518397

$0.65

25

Stop, Steering, LH

5631603

$4.95

25

Stop, Steering, RH

5631604

$4.95

26

Asm., Spindle, Red, LH [Incl. Decal, 24,25,28]

1822724

Unavailable

26

Asm., Spindle, Red, RH [Incl. Decal, 24,25,28]

1822725

$236.99

26

Asm., Spindle, Blue, LH [Incl. Decal, 24,25,28]

1822722

$205.99

26

Asm., Spindle, Blue, RH [Incl. Decal, 24,25,28]

1822723

$226.99

27

BUSHING, PIVOT

5010158

$19.99

28

BUSHING-SKI PIVOT

5133983

$14.99
