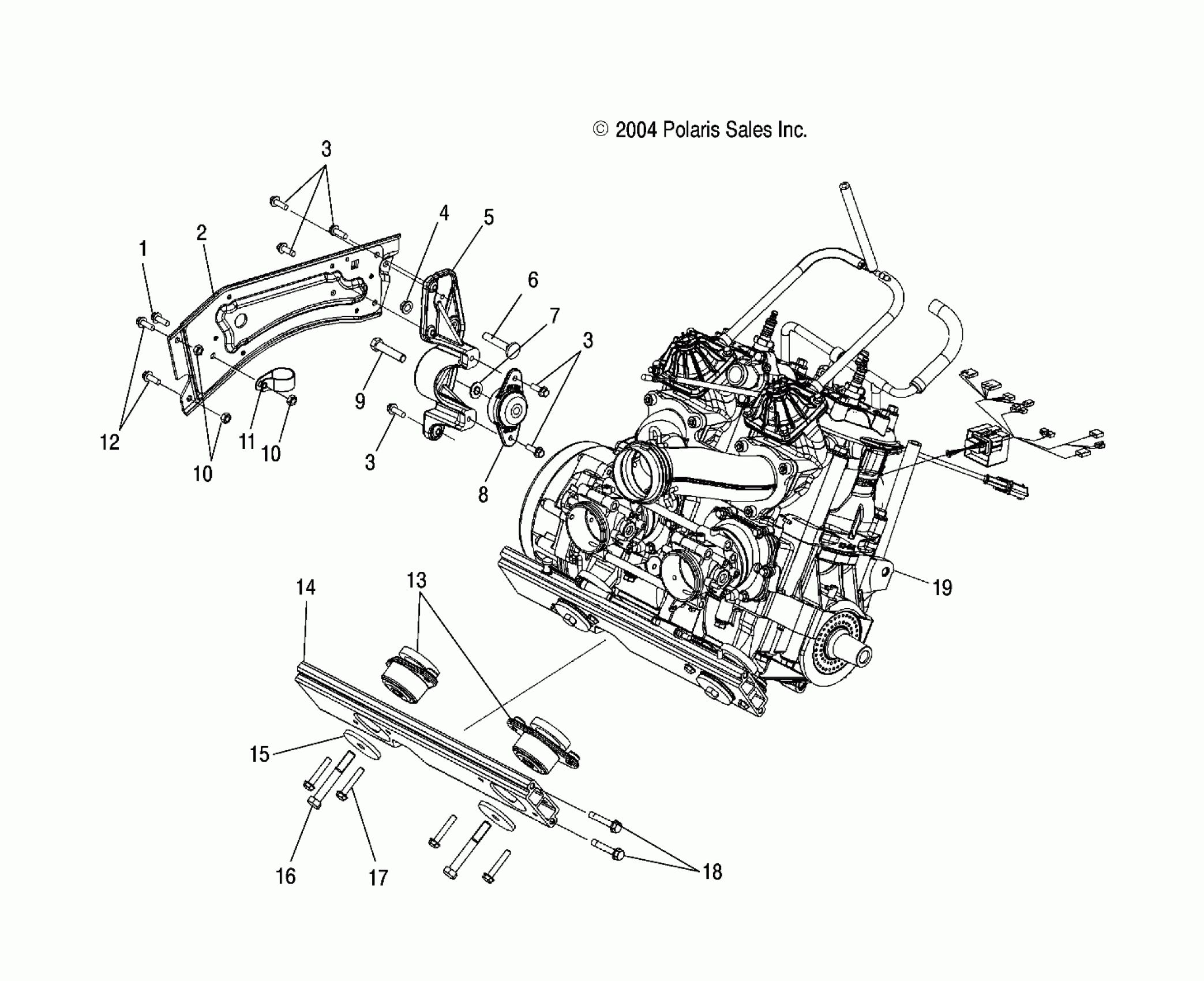

Polaris 900 FUSION - S05MP8DS ENGINE MOUNTING RH and FRONT - S05MP8DS/DSA/DSB/DSC (4992569256C09) Diagram

Screw

7512225

$3.99

Asm., Support, Upper, RH

1014935

$43.22

Bolt

7512232

$1.49

Bolt

7512232

$1.49

Bolt

7512232

$1.49

NUT, FLANGED

7547180

$2.39

Support, Engine Mount, RH

5134875

$49.59

Bolt, Carriage

7518029

$3.03

Washer, Flat

7555806

$1.49

Mount, Engine, Rear

3021564

$41.59

Screw

7518422

Unavailable

NUT, NYLOK, FLANGED

7542153

$1.59

NUT, NYLOK, FLANGED

7542153

$1.59

Clamp

7081049

Unavailable

Screw

7512253

$3.99

Mount, Engine, Front

3021577

$66.99

Support, Engine Base, Front

5134872

$90.48

Washer

7556313

Unavailable

Screw

7517297

$5.99

Bolt

7515391

$4.79

BOLT

7518425

$3.99

Kit, Short Block, S86-86, Anniversary NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston and crankshaft assembly. Prior authorization is

2202805

Unavailable

Kit, Short Block, S86-86 NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston and crankshaft assembly. Prior authorization is required for

2202806

Unavailable
