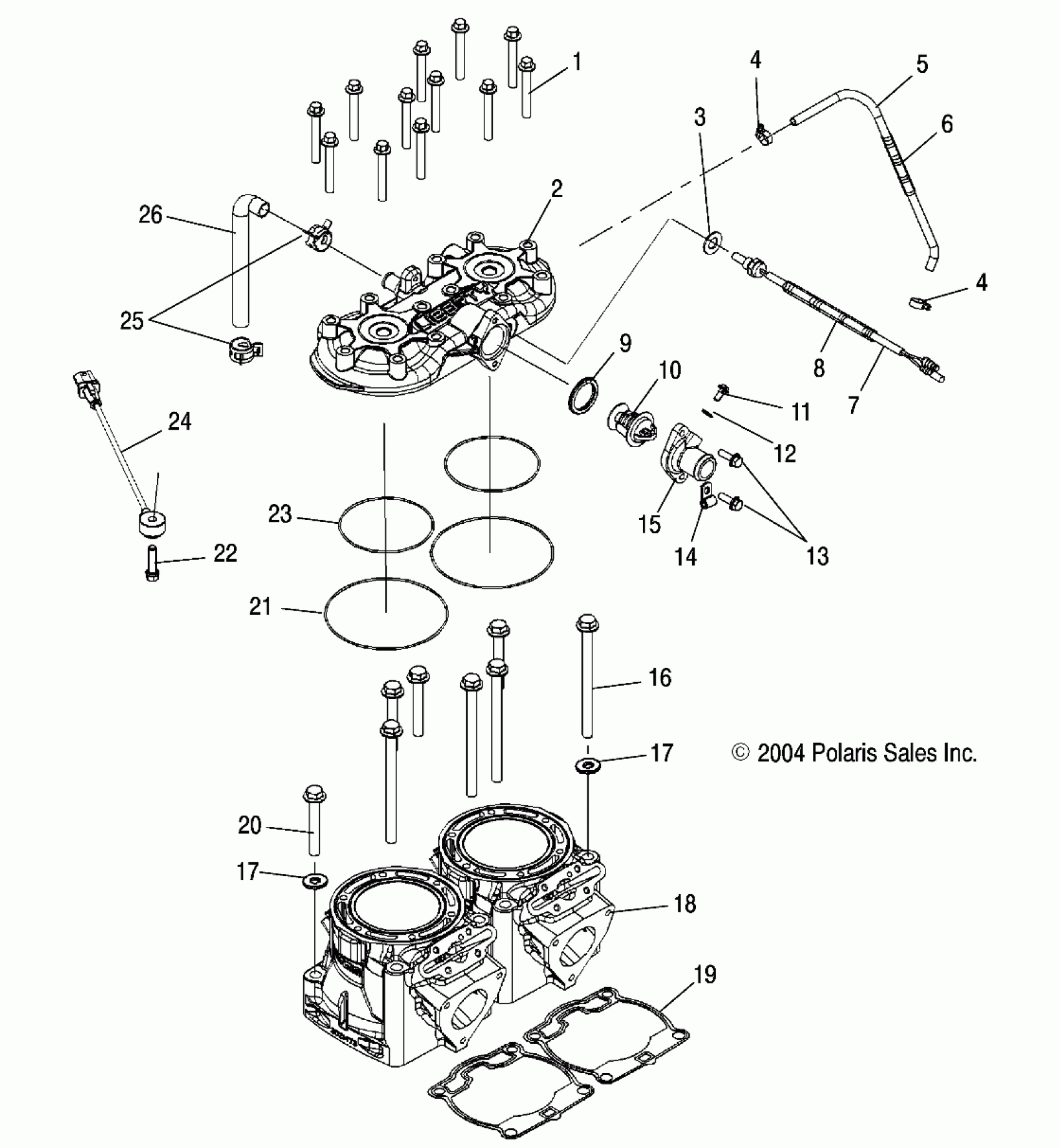

Polaris 900 FUSION - S05MP8DS CYLINDER - S05MP8DS/DSA/DSB/DSC (4992569256D06) Diagram

#

Description
Price

1

SCREW

7517533

$4.79

2

Cylinder, Head, Red

1202664-093

$649.99

2

Cylinder, Head, Gold

1202664-462

$309.99

3

Washer, Gasket

7518242

Unavailable

4

Clamp, Hose

7080476

$6.39

4

Clamp, Hose

7080476

$6.39

5

Hose, Coolant

5412682

Unavailable

6

TUBING, CONVOLUTED

8360052-30

Unavailable

7

Sensor, Water Temperature

4010868

$44.51

8

Tubing, Convoluted

8360062-15

$1.49

9

O-RING, LIPSEAL

5411521

$24.19

10

Thermostat

7052376

Unavailable

11

SCREW

7517679

$13.59

12

WASHER, FLAT

7555998

$1.49

13

SCREW

7516822

$2.39

14

Clamp

7081246

$1.49

15

Cover, Thermostat

5631394

Unavailable

16

Screw

7518292

$5.99

17

WASHER, FLAT

7556234

$3.19

17

WASHER, FLAT

7556234

$3.19

18

Cylinder

3021615

$563.49

19

Gasket

5812531

$20.22

20

Screw

7518091

$34.99

21

O-RING

5411359

$15.99

22

SCREW

7517262

$5.59

23

O-Ring

5411675

$29.03

24

SENSOR, DETONATION

2410369

$76.89

25

Clamp, Bypass

7081030

$6.39

26

Hose, Bypass

5412362

Unavailable
