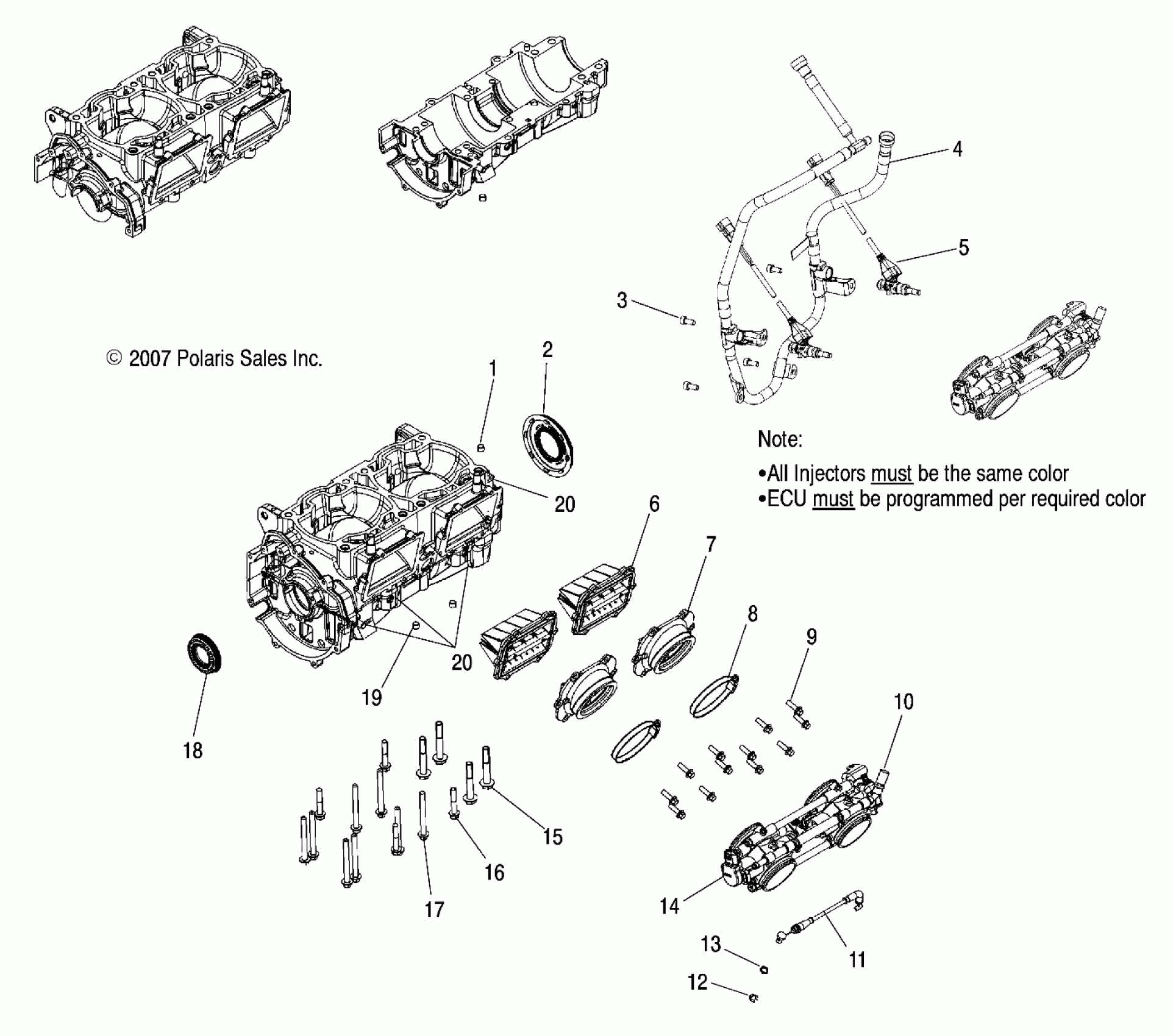

Polaris 900 FUSION - S05MP8DS CRANKCASE/THROTTLE BODY MOUNTING - S05MP8DS/DSA/DSB/DSC (49SNOWCRANKCASE900) Diagram

#

Description
Price

-

Kit, Crankcase [Incl. 1,19](Does not include Water Pump, Crosshaft or Seals)

2202807

$594.79

1

DOWEL, HOLLOW

7663008

$5.27

2

Seal, Flanged

5412218

Unavailable

3

SCREW

7517431

$5.59

4

Fuel, Rail

2520430

$107.14

5

Kit, Injectors (2 Per)

2203096

Unavailable

6

ASM., REED VALVE

1202698

$133.56

7

Adapter, Throttle Body

1253540

$149.99

8

CLAMP-BAND,NARROW 60-80MM

7080707

$3.19

9

SCREW

7517398

$3.19

10

Asm., Throttle Body

1202697

$336.10

11

Cable, Oil, 886

7081158

$49.99

12

Ring, Retaining

7710427

Unavailable

13

Washer, Nylon

7555944

$3.99

14

SENSOR, THROTTLE POSITION

3131591

$242.84

15

Screw

7516919

Unavailable

16

SCREW

7516732

$1.59

17

Screw

7518093

Unavailable

18

Seal, Flanged

5412216

$43.56

19

PLUG

7052337

$3.22

20

VALVE-CHECK,90,1/8"7MM BORE

7051020

$32.37

20

VALVE-CHECK,90,1/8"7MM BORE

7051020

$32.37
