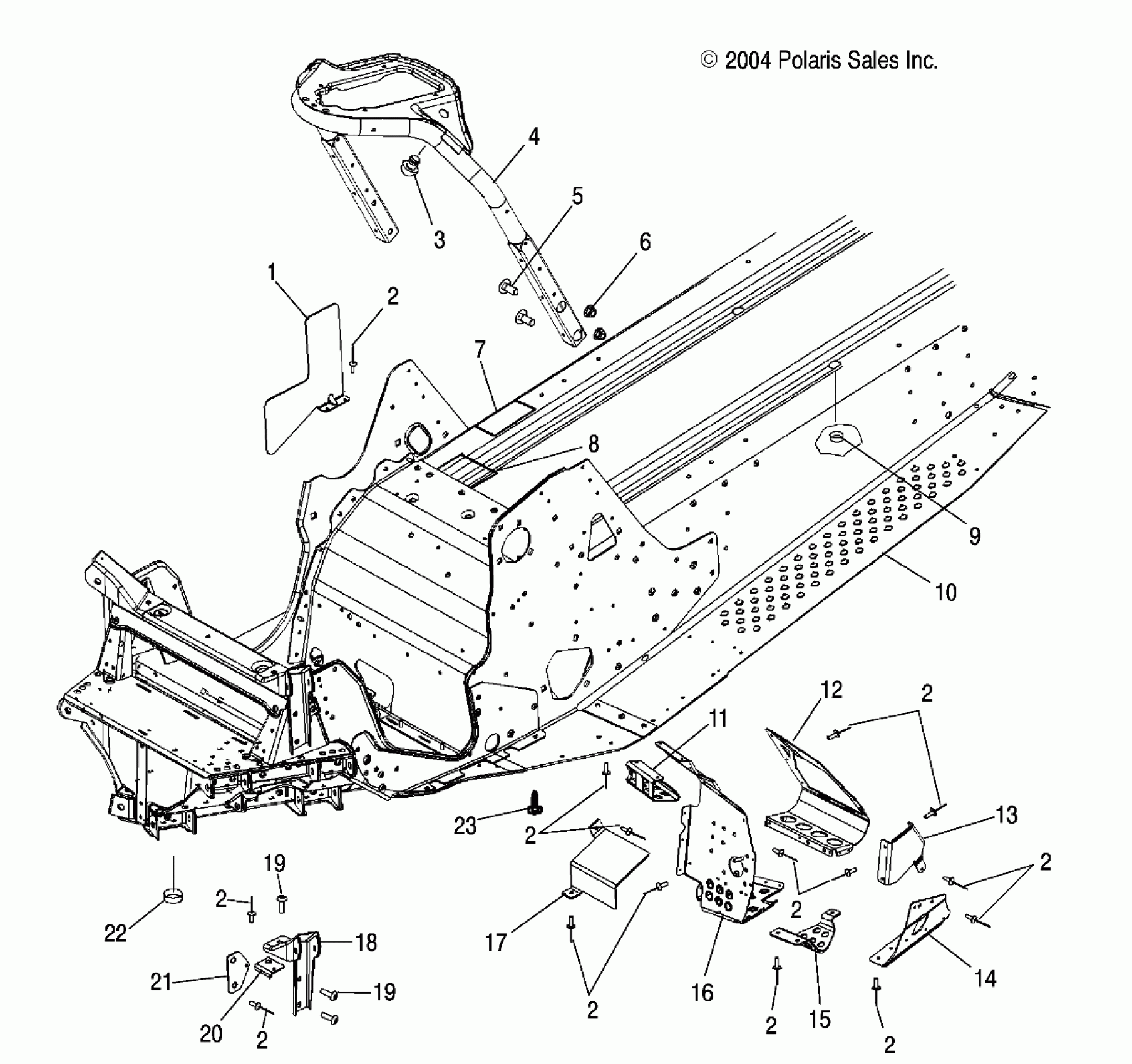

Polaris 900 FUSION - S05MP8DS CHASSIS, FRONT - S05MP8DS/DSA/DSB/DSC (4992569256A03) Diagram

#

Description
Price

1

Shield, Heat

5248618

$5.75

2

RIVET-3/16-.090-.290

7661637

Unavailable

2

RIVET-3/16-.090-.290

7661637

Unavailable

2

RIVET-3/16-.090-.290

7661637

Unavailable

2

RIVET-3/16-.090-.290

7661637

Unavailable

2

RIVET-3/16-.090-.290

7661637

Unavailable

2

RIVET-3/16-.090-.290

7661637

Unavailable

2

RIVET-3/16-.090-.290

7661637

Unavailable

2

RIVET-3/16-.090-.290

7661637

Unavailable

2

RIVET-3/16-.090-.290

7661637

Unavailable

2

RIVET-3/16-.090-.290

7661637

Unavailable

3

Dampener, Vibration

5411576

$7.99

4

Hoop, Steering, Black

1014790-067

$103.19

5

Bolt, Carriage

7512377

$4.79

6

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

7

PAD-BATTERY

5810290

$7.27

8

Seal, Tunnel

5812612

Unavailable

9

Plug, Cap

7080592

Unavailable

10

Asm., Chassis

1014227-309

$1,299.99

11

Mount, Plenum

5248405

$4.95

12

Toe Clip, LH

5248406

$13.19

12

Toe Clip, RH

5248407

Unavailable

13

Support, Footrest, Bumper, RH

5248401

Unavailable

13

Support, Footrest, Bumper, LH

5248402

Unavailable

14

Support, Footrest, Lower, LH

5248807

Unavailable

14

Support, Footrest, Lower, RH

5248808

$10.51

15

Leg, Support, LH

5248403

Unavailable

15

Leg, Support, RH

5248404

$3.51

16

Asm., Support, Footrest, Front, LH

5248809

$93.32

16

Asm., Support, Footrest, Front, RH

5248810

$88.56

17

Guard, Belt

5247861

$12.39

18

Tower, Shock, Black, LH

1014795-067

Unavailable

18

Tower, Shock, Black, RH

1014796-067

$118.99

19

Screw

7517810

$3.99

19

Screw

7517810

$3.99

20

Asm., Plate, Nut, LH

1014821

$3.60

20

Asm., Plate, Nut, RH

1014822

$3.60

21

Asm., Plate, Nut [Shock Tower]

1014820

Unavailable

22

Plug, Hole

7081076

$3.22

23

Clip, Dart

7670067

$3.99
