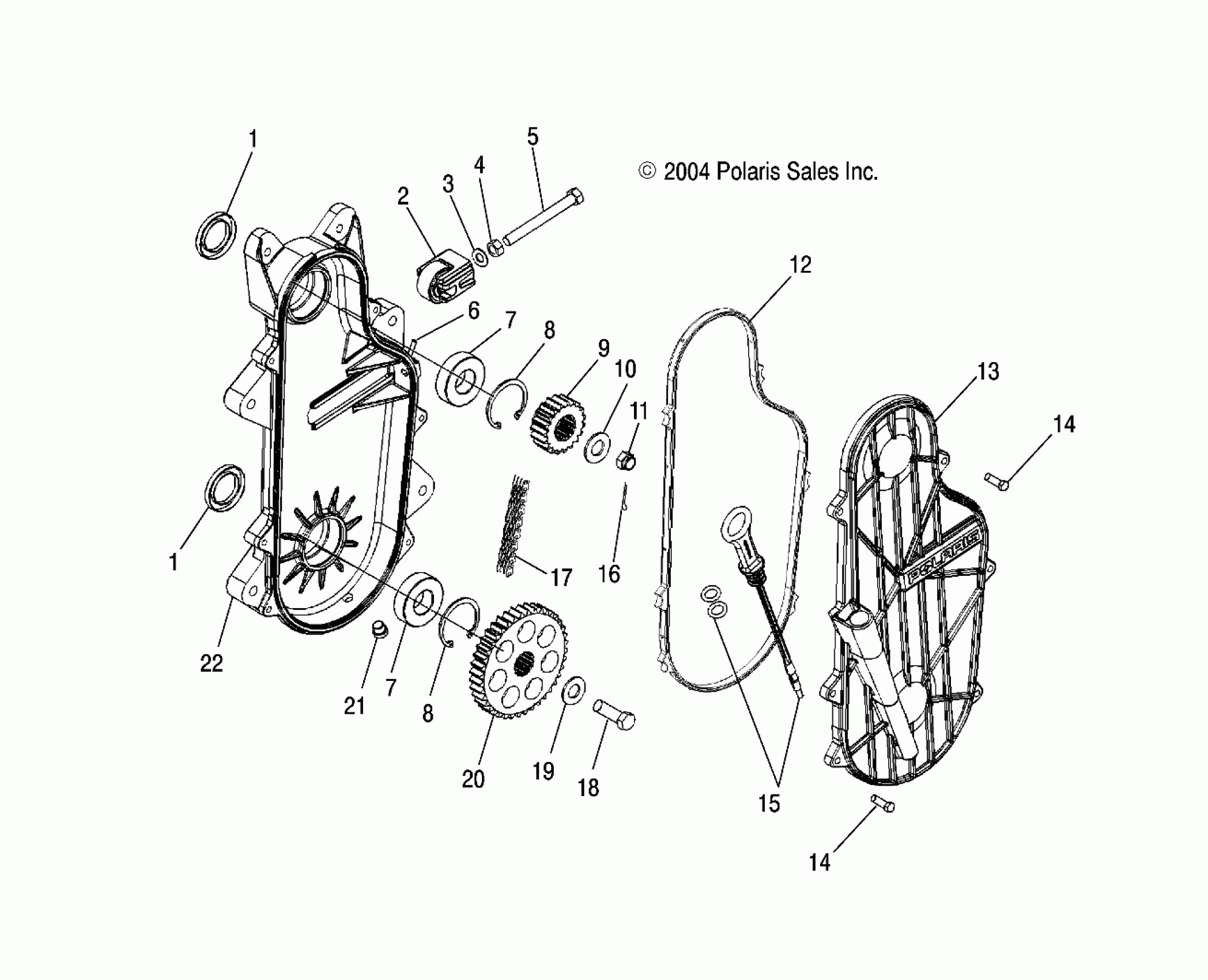

Polaris 900 FUSION - S05MP8DS CHAINCASE - S05MP8DS/DSA/DSB/DSC (4992569256C02) Diagram

Description

Price

SEAL-OIL

3610030

$20.22

SEAL-OIL

3610030

$20.22

Asm., Tightener, Chain

1341437

$71.41

Washer

7556340

$3.19

Nut, Hex

7547304

$3.19

Screw

7512470

Unavailable

Pin, Roll

7661867

$2.39

BEARING, BALL

3514309

$15.87

BEARING, BALL

3514309

$15.87

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

Sprocket, 25T, 3/4W

3221092

$36.41

Washer, Spring

7571620

$7.19

Nut

7547202

$5.59

Gasket, Chaincase Cover

5812575

Unavailable

Cover, Chaincase

5435735

Unavailable

SCREW

7512242

$2.39

SCREW

7512242

$2.39

O-RING

5410675

$1.60

Asm., Dipstick [Incl. O-Ring]

1341481

$17.43

Pin, Cotter

7661203

$1.49

Chain, 92P, 3/4W

3221157

$145.70

Screw

7518358

Unavailable

WASHER

7556130

$6.39

Sprocket, 37T

3222125

Unavailable

PLUG

7052115

$5.65

Chaincase

5134758

Unavailable
