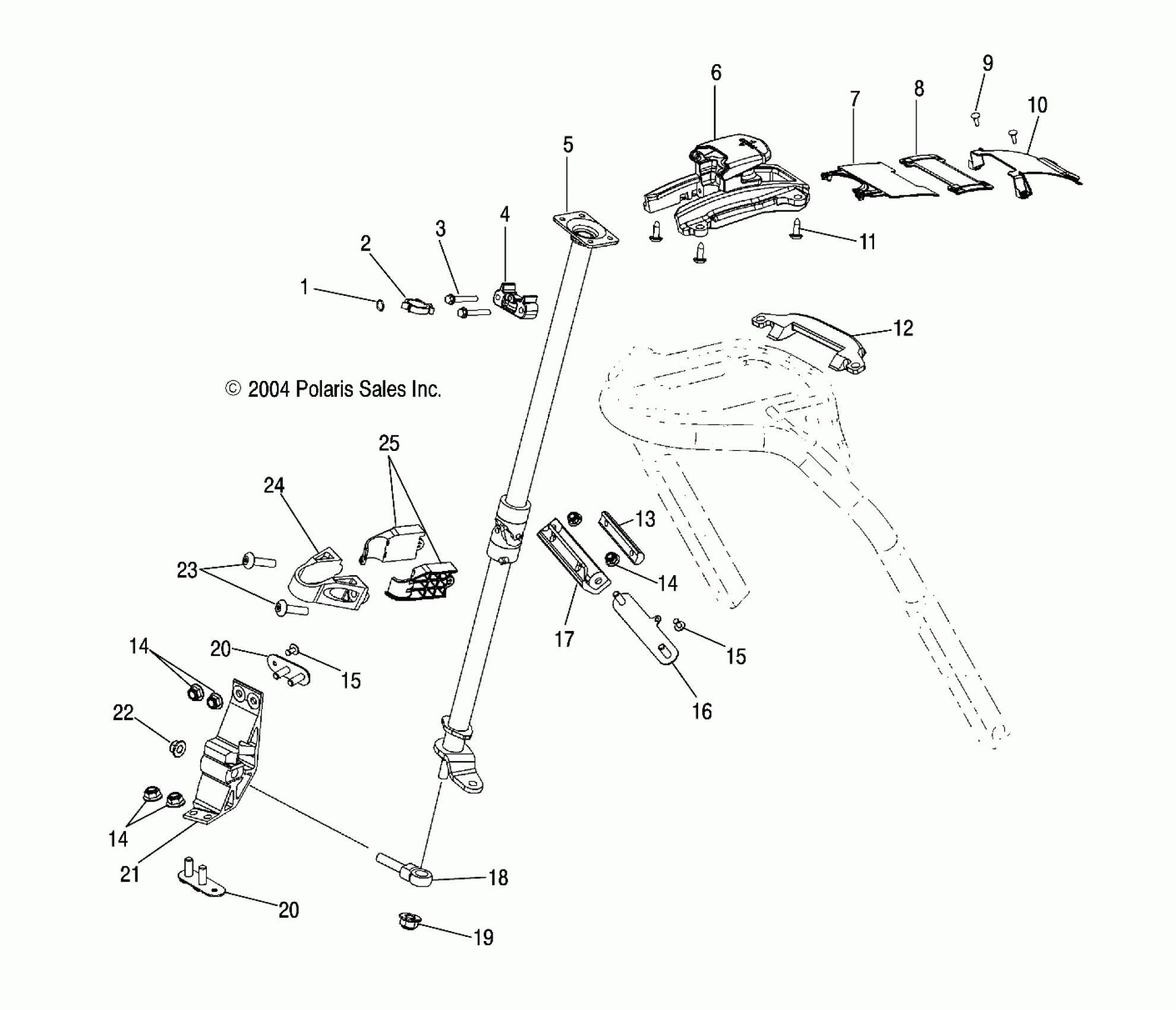

Polaris 900 FUSION - S05MP8DS ADJUSTABLE STEERING POST - S05MP8DS/DSA/DSB/DSC (4992569256B08) Diagram

#

Description
Price

1

O-Ring

5410507

$1.49

2

Clip, Cable

7670164

$1.49

3

Screw

7512093

$1.49

4

Block, Steering Post, Front Half

5435348

$13.89

5

Post, Steering, Black

1821529-067

Unavailable

6

Asm., Block, Steering Adjust

1822650

Unavailable

7

Cover, Adjust, Steering, Upper

5435537

$1.83

8

Cover, Adjust, Steering, Center

5435536

$1.43

9

Rivet

7661864

Unavailable

10

Cover, Adjust, Steering, Lower

5435538

$7.43

11

Screw

7518352

$3.19

12

Wedge, Adjust Cover

5412694

$4.15

13

Strap, Bearing Mount

5134447

$12.39

14

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

14

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

14

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

15

RIVET-3/16-.090-.290

7661637

$1.49

15

RIVET-3/16-.090-.290

7661637

$1.49

16

Plate, Mid

1014646

$8.23

17

Mount, Steering Upper

5134446

$21.70

18

Joint, Ball, Steering

7061122

$33.91

19

NUT-3/8-24 FLG LOC

7547263

$3.19

20

Plate, Lower, Bracket

1014645

$9.91

20

Plate, Lower, Bracket

1014645

$9.91

21

Mount, Steering Ball

5134443

$25.79

22

Nut, Flange

7542522

$5.59

23

Screw

7516317

$3.19

24

Mount, Steering, Bushing

5134445

$24.79

25

Bushing, Steering Post, LH

5435511

$5.83

25

Bushing, Steering Post, RH

5435512

$6.63
