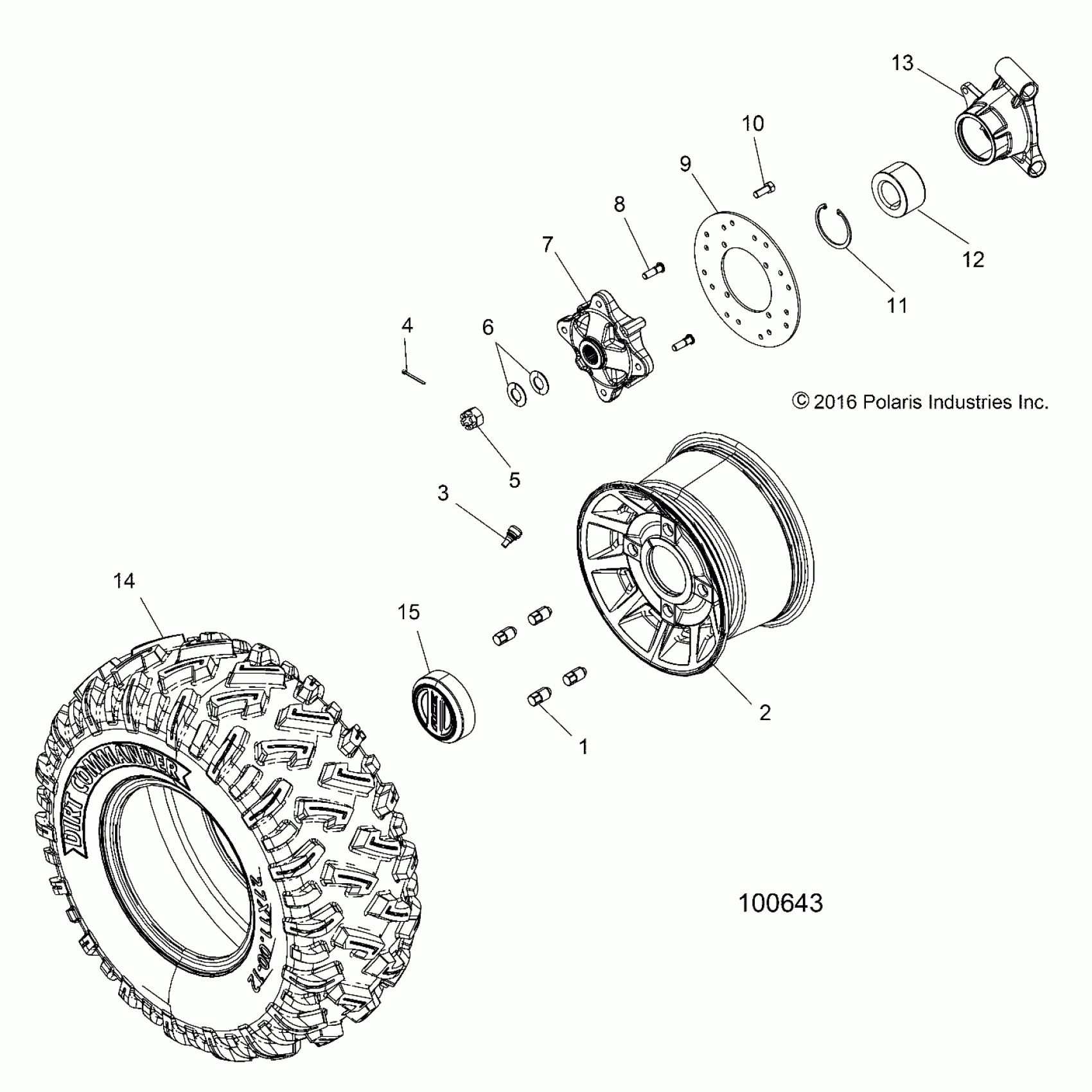

Polaris 900 ACE EPS XC (R08) - A18DCE87BB WHEELS, REAR - A18DCE87BB (100643) Diagram

Description

Price

NUT, WHEEL

7547309

$3.59

RIM-REAR,12X7,CAST,38.5MM,F.BK

1522932-655

$125.99

VALVE-RIM

1525017

$5.59

PIN, COTTER

7661404

$4.79

NUT, CASTLE

7547337

$1.99

WASHER, CONE

7555796

$7.99

HUB, WHEEL, REAR

5139163

Unavailable

STUD

7518378

$1.59

DISC, BRAKE, REAR

5248250

$75.99

BOLT

7519343

$4.79

RING, RETAINING

7710440

$10.39

BEARING, BALL

3514635

$39.99

BEARING-WHEEL,HD,40X74X40MM [OPTIONAL]

3515087

$63.99

CARRIER, BEARING, LH

5138501

$251.73

CARRIER, BEARING, RH

5138502

$251.73

TIRE-REAR,27X11-12

5414992

$182.39

CAP-RIM

1522912

Unavailable
