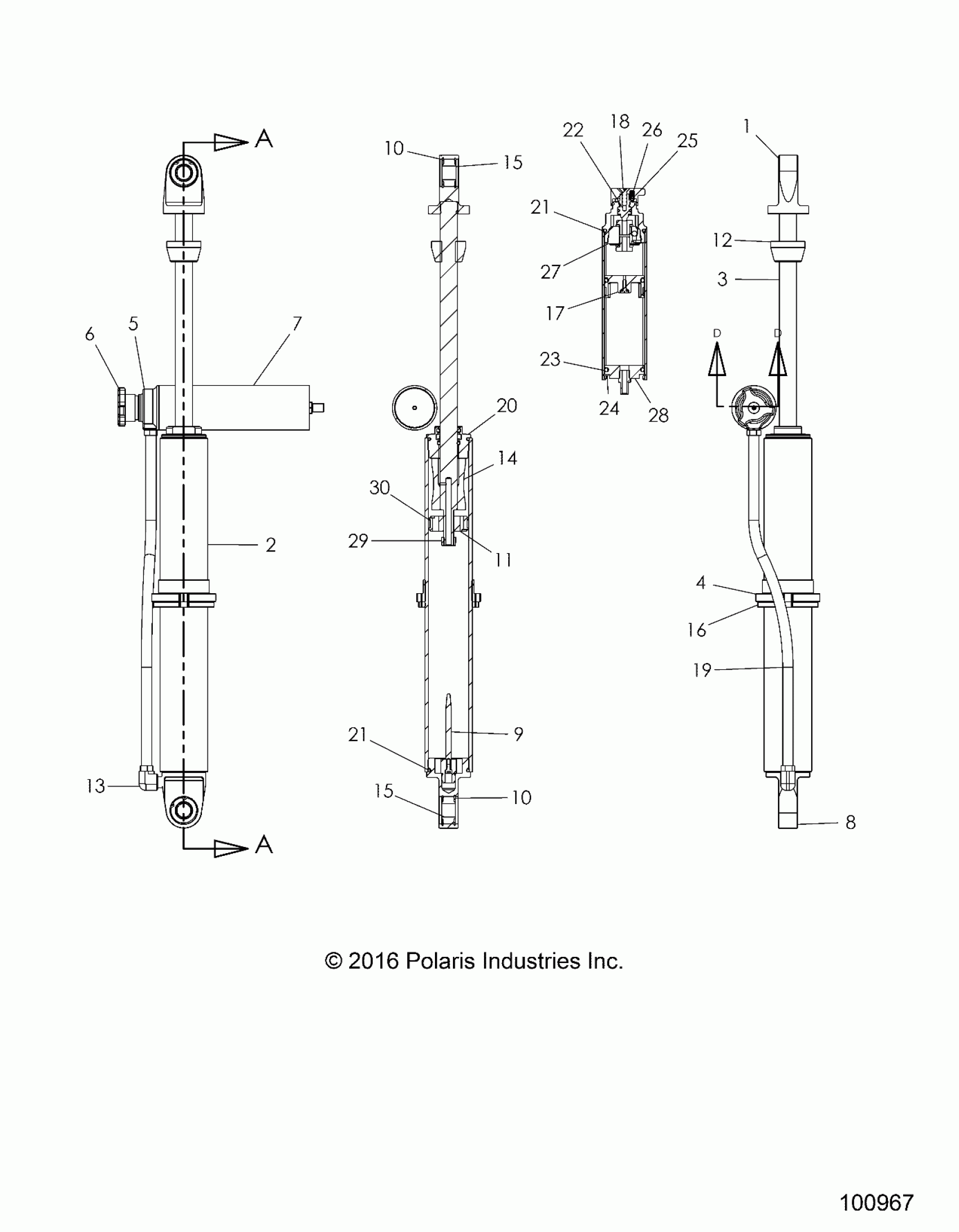

Polaris 900 ACE EPS XC (R08) - A18DCE87BB SUSPENSION, REAR SHOCK - A18DCE87BB (100967) Diagram

#

Description
Price

-

SHOCK-REAR

7044676

$749.99

1

SHAFT LOOP W' SNAP RING

1800762

$133.56

2

BODY

1800815

Unavailable

3

SHAFT, NEEDLE

1800816

$227.52

4

REAINER SPRING NUT

1800046

$36.41

5

CLICKER, HOUSING

1800817

Unavailable

6

TRI-KNOB

1800218

$67.76

7

RES, LONG

1800818

Unavailable

8

BODY LOOP INTERNAL W/SNAP RING

1800819

Unavailable

9

NEEDLE ASM

1800770

$32.37

10

SNAP RING

1800041

$8.08

10

SNAP RING

1800041

$8.08

11

CONVEX PISTON BLEED HOLE

1800821

Unavailable

12

JOUNCE BUMPER

1800462

$36.41

13

FITTING

1800205

$55.56

14

SHAFT SPACER

1800822

Unavailable

15

BEARING

1800616

$76.17

15

BEARING

1800616

$76.17

16

JAM NUT

1800465

$66.65

17

ASM PISTON RES

1800281

$161.89

18

SCREW

1800196

$3.97

19

HOSE

1800432

$94.99

20

SEAL HEAD

1800825

$124.99

21

O-RING

1800027

$1.37

21

O-RING

1800027

$1.37

22

ASM CLICKER STUD

1800758

$29.99

23

O-RING

1800028

$1.09

24

SNAP RING

1800019

$7.27

25

BALL DETENT

1800127

$6.46

25

BALL DETENT

1800127

$6.46

27

ASM CLICKER PISTON

1800757

$84.99

28

CAP, END ASM BLK SLV

1800826

Unavailable

29

CRIMP NUT

1800031

$2.74

30

BAND WEAR

1800297

$39.99
