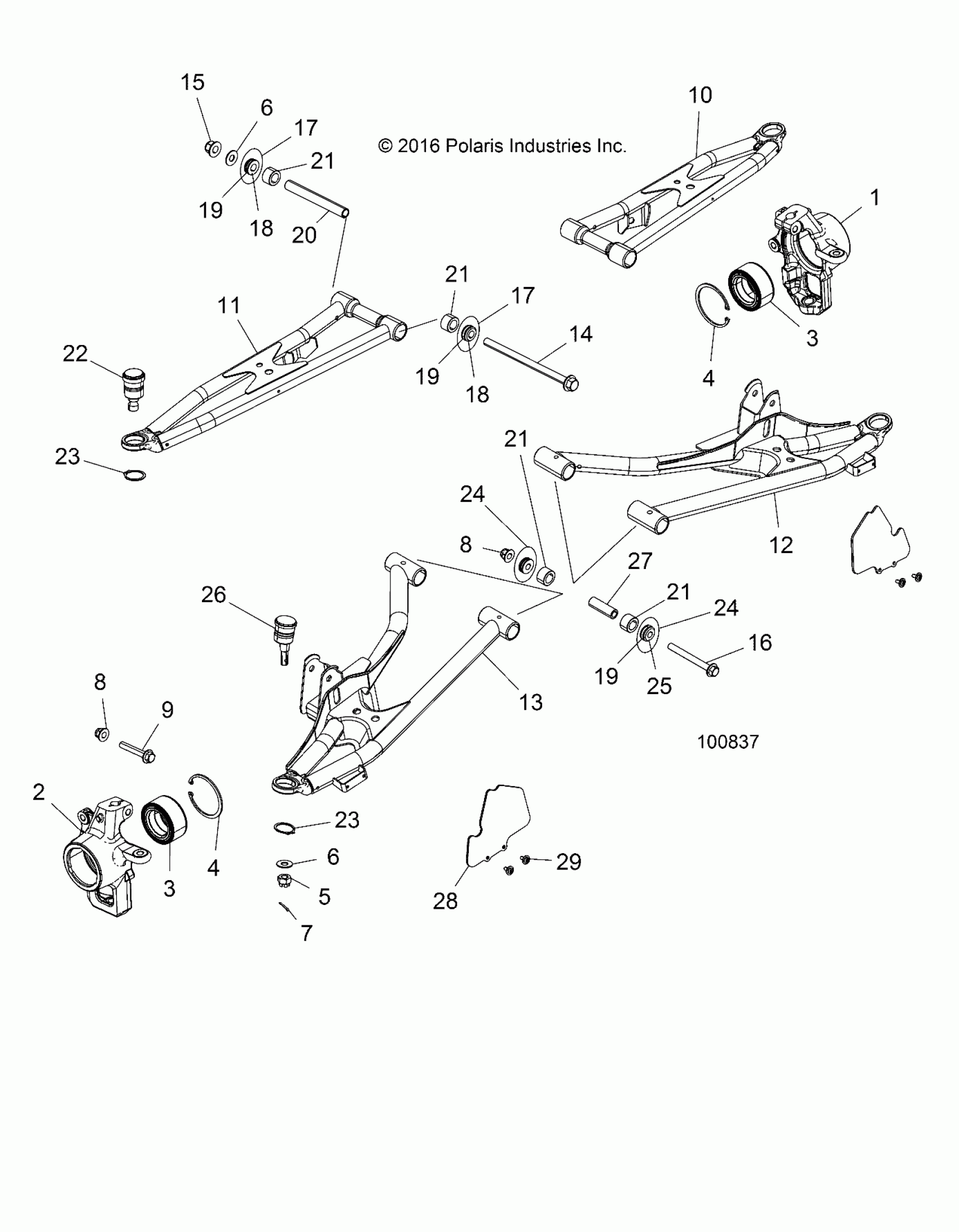

Polaris 900 ACE EPS XC (R08) - A18DCE87BB SUSPENSION, FRONT - A18DCE87BB (100837) Diagram

#

Description
Price

1

ASM-STEERING,KNUCKLE,LH [INCL. BEARING/SNAP RING,3,4]

1824523

Unavailable

1

KNUCKLE-STEERING,MACH,LH

5140671

Unavailable

2

ASM-STEERING,KNUCKLE,RH [INCL. BEARING/SNAP RING,3,4]

1824524

$307.99

2

KNUCKLE-STEERING,MACH,RH

5140672

Unavailable

3

BEARING-BALL,SEALED,44X72X33.1

3514822

Unavailable

3

BEARING-WHEEL,HD,44X72X33.1MM [OPTIONAL]

3515090

$63.99

3

BEARING-BALL,SEALED,44X72X33.1

3514822

Unavailable

3

BEARING-WHEEL,HD,44X72X33.1MM [OPTIONAL]

3515090

$63.99

4

RING-RETAINING,2.835,INTERNAL

7710780

$9.59

4

RING-RETAINING,2.835,INTERNAL

7710780

$9.59

5

NUT-M12X1.5,CASTLE-OLIVE D

7547336

$11.19

6

WASHER-7/16 SAE,STF,THRU-HRD-Y

7556212

$8.79

6

WASHER-7/16 SAE,STF,THRU-HRD-Y

7556212

$8.79

7

PIN-3/32X1-COTTER-Y

7661203

$1.49

8

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

8

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

9

SCR-HXFL-M10X1.25X60 10.9 ZOD

7519306

$5.59

10

WELD-UCA,FRONT,LH,V.BLUE

1022525-689

Unavailable

11

WELD-UCA,FRONT,RH,V.BLUE

1022526-689

Unavailable

12

WELD-LCA,LH,V.BLUE

1543768-689

Unavailable

13

WELD-LCA,RH,V.BLUE

1543769-689

Unavailable

14

SCR-HXFL,M12X1.5X190,10.9 ZOD

7519927

$23.99

15

NUT-M12X1.5,FLG,NYLOC-OLIVE D

7547334

$4.79

16

SCR-HXFL-M10X1.25X95 10.9 ZOD

7519043

$9.59

17

ASM-PIVOT CAP,SEALED,M12

1543790

$7.99

17

ASM-PIVOT CAP,SEALED,M12

1543790

$7.99

18

CAP-PIVOT SEAL,M12

5140783

$26.39

18

CAP-PIVOT SEAL,M12

5140783

$26.39

19

O-RING,2-210

5415653

$1.49

19

O-RING,2-210

5415653

$1.49

19

O-RING,2-210

5415653

$1.49

20

SHAFT-PIVOT,LONG,M12

5339826

$11.99

21

BUSHING-STANDARD,SUSP,M10

5452233

$2.39

21

BUSHING-STANDARD,SUSP,M10

5452233

$2.39

21

BUSHING-STANDARD,SUSP,M10

5452233

$2.39

21

BUSHING-STANDARD,SUSP,M10

5452233

$2.39

22

BALL-JOINT,10MM STUD

7081924

Unavailable

23

RING-RETAINER,EXTERNAL,1.188

7710533

$2.39

23

RING-RETAINER,EXTERNAL,1.188

7710533

$2.39

24

ASM-PIVOT CAP,SEALED,M10

1543611

$5.59

24

ASM-PIVOT CAP,SEALED,M10

1543611

$5.59

25

CAP-PIVOT SEAL,M10

5139968

$4.79

26

BALL-JOINT,M12X1.50,TAPERED

7061230

$39.99

27

SHAFT-PIVOT,SHORT,M10

5139966

$5.59

28

SHIELD-CV,FRONT,BLK

5438641-070

$3.19

29

SCR-10-24X1/2,PHTXTRIRD,SEMS-Y

7512084

$1.49
