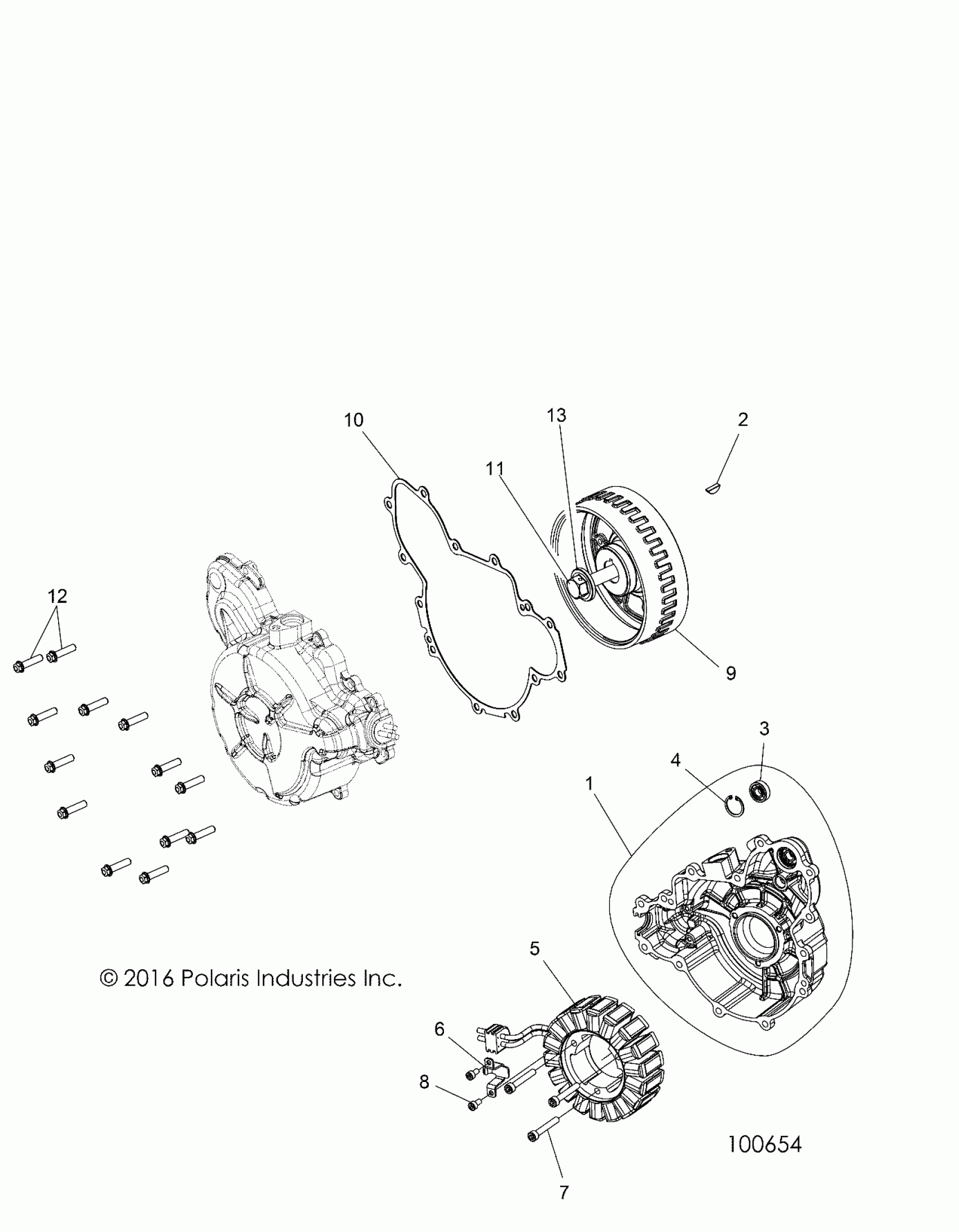

Polaris 900 ACE EPS XC (R08) - A18DCE87BB ENGINE, STATOR and COVER - A18DCE87BB (100654) Diagram

#

Description
Price

1

ASM., IGNITION COVER, STARTER BEARING [INCL. 3,4]

1204518

$159.75

2

KEY-WOODRUFF,4X5

7721122

$7.84

3

BEARING, BALL

3514717

$8.79

4

RING, SNAP

7710654

$23.99

5

STATOR

4014839

$480.30

6

BRACKET, RETAINER, WIRE

5255473

$7.19

7

SCREW

7510005

$5.70

8

SCREW

7517847

$3.19

9

FLYWHEEL

4014688

$181.49

10

GASKET, COVER, MAG

5814160

$39.99

11

SCR-HXFL-M12X1.25X43 12.9

7520178

$27.99

12

SCREW

7519297

$3.99

13

WSHR-32X12X4,HARD

7556885

$5.59
