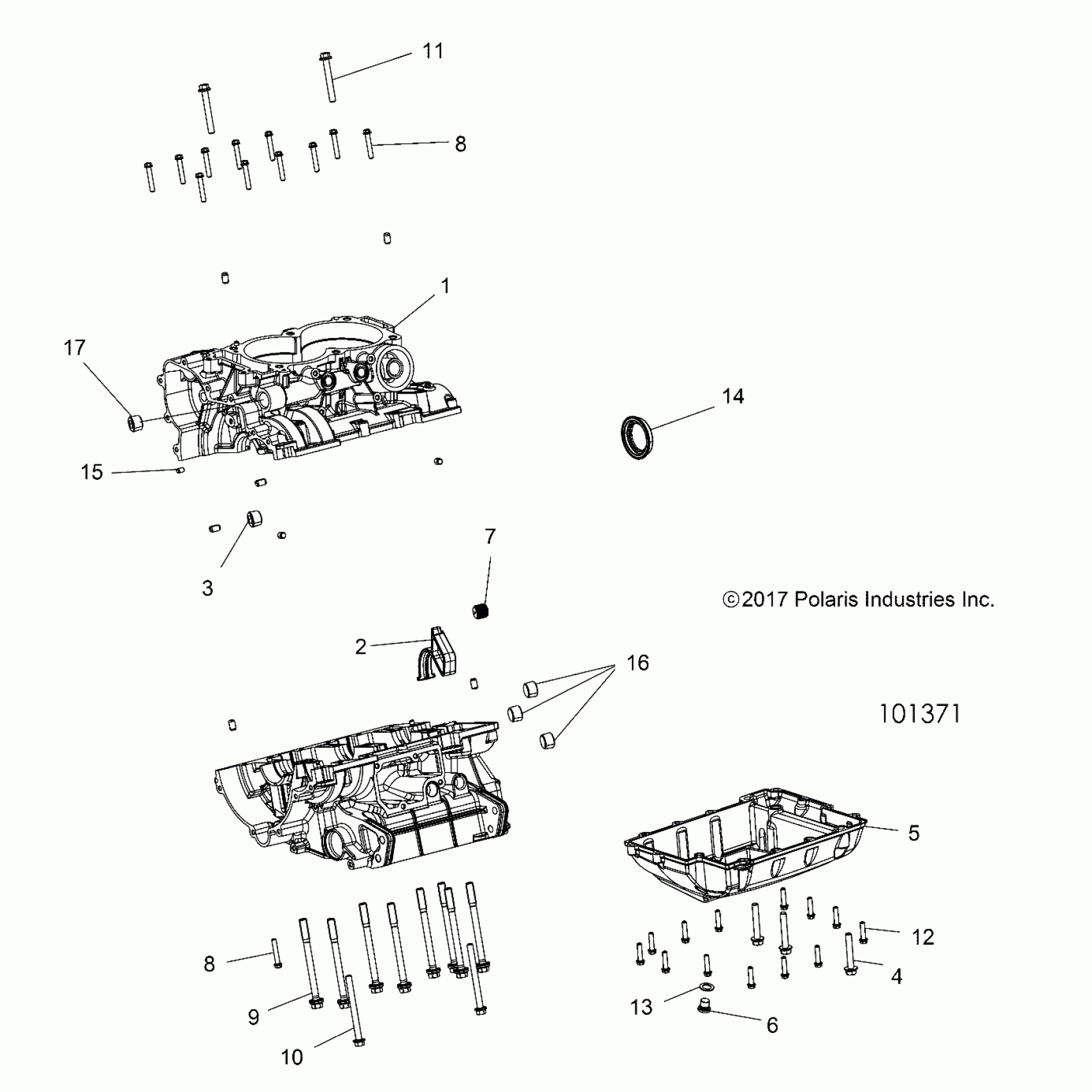

Polaris 900 ACE EPS XC (R08) - A18DCE87BB ENGINE, CRANKCASE - A18DCE87BB (101371) Diagram

#

Description
Price

1

K-CRANKCASE [INCL. CASES, PLUGS, 2,9,15]

2207371

$1,280.39

2

DIVERTER, OIL DRAIN

5452616

$20.22

3

PLUG

7052413

$3.99

4

SCREW

7517793

$5.59

5

COVER, SUMP

5137873

Unavailable

6

PLUG, SOCKET

7052306

$15.37

7

PLUG, HEX SOCKET

7518835

$5.59

8

SCREW

7518578

$3.99

8

SCREW

7518578

$3.99

9

SCREW

7519141

Unavailable

10

SCREW

7519154

$7.19

11

SCREW

7519186

$6.53

12

SCREW

7519297

$3.99

13

WASHER, COPPER

5812232

$1.59

14

SEAL-CRANKSHAFT

3610284

$32.37

15

PIN-DOWEL,M6X10

5136879

Unavailable

16

PLUG-HEX SCKT,W/O-RING,M16X1.5

7052642

$7.91

16

O-RING, 14.5X1.5, FKM

5416549

Unavailable

17

PLUG-HEX SCKT,W/O-RING,M20X1.5

7052643

$7.99

17

O-RING, 18.0X2.0, FKM

5416548

Unavailable
