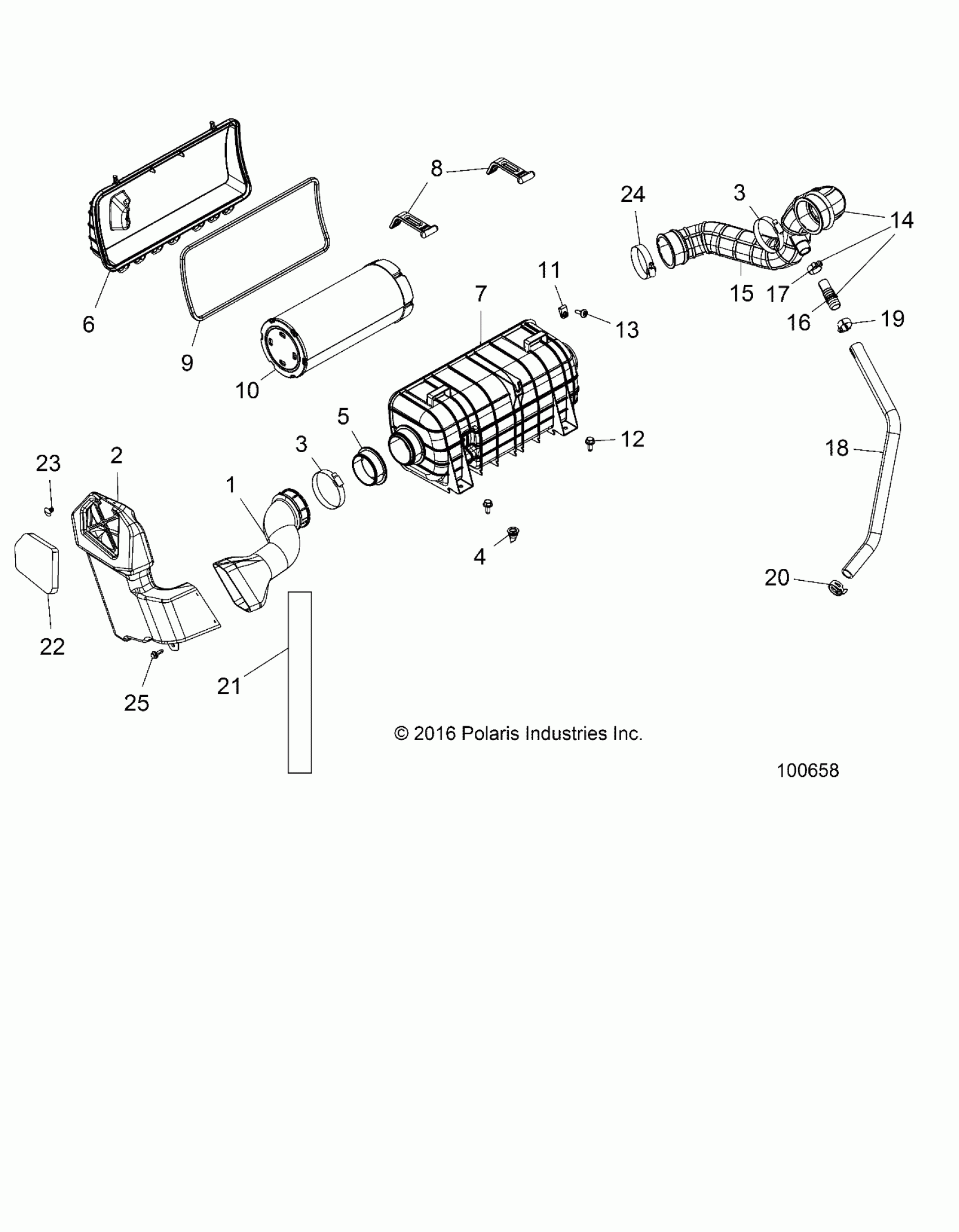

Polaris 900 ACE EPS XC (R08) - A18DCE87BB ENGINE, AIR INTAKE SYSTEM - A18DCE87BB (100658) Diagram

#

Description
Price

1

DUCT-INTAKE,AIRBOX

5452344

$43.99

2

BOX-INTAKE,ENGINE,RH

5450728

$101.19

3

CLAMP-HOSE,3.25-SS

7080439

$9.59

3

CLAMP-HOSE,3.25-SS

7080439

$9.59

4

PLUG-DRAIN

5414472

$5.59

5

SEAL-INTAKE,AIRBOX

5415155

$5.59

6

COVER-AIRBOX

5451097

$51.99

7

AIRBOX

5451098

$135.99

8

STRAP-AIRBOX

5451099

$4.79

9

SEAL-AIRBOX

5814054

Unavailable

10

FILTER-AIR [STD]

7082115

$35.99

10

K-FILTER-AIR,PERF,RZX [OPT]

2881063

Unavailable

11

NUT-M6-1.0,U-TYPE (2.5-3.8)

7547674

$1.49

12

BOLT-M8X1.25X20,HXFLG

7518555

$2.39

13

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

14

ASM-INTAKE DUCT

1240975

$71.99

15

DUCT-INTAKE,ENG

5452345

$55.99

16

FITTING-3/4 DOUBLE BARB

7052580

$5.59

17

CLAMP-HOSE

7081903

$7.19

18

HOSE-VENT,ENG

5415564

$27.99

19

CLAMP-HOSE WORM GEAR 1.25

7080614

$7.19

20

SPRINGBAND-CLAMP 27/12,GREEN

7080841

$7.19

21

SEAL, FOAM

5814033

$11.99

22

FILTER, INTAKE, FOAM

5814026

$12.79

23

CLIP-PLASTIC DART, NYLON

7670088

$1.59

24

CLAMP-HOSE, 2.75"-SS

7080446

$11.19

25

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49
