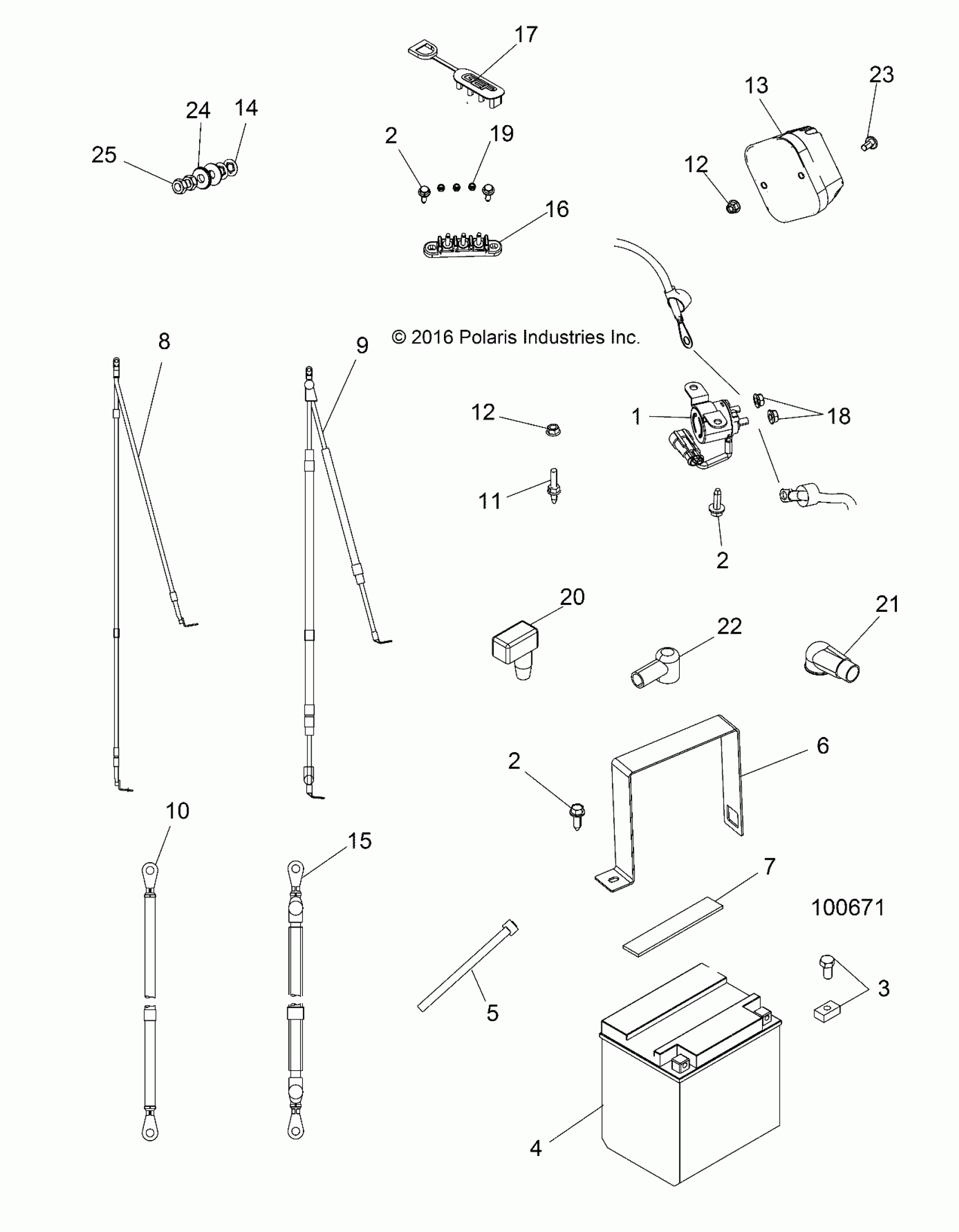

Polaris 900 ACE EPS XC (R08) - A18DCE87BB ELECTRICAL, BATTERY - A18DCE87BB (100671) Diagram

#

Description
Price

1

SOLENOID, STARTER

4012001

$47.60

2

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

2

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

2

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

3

KIT, BATTERY BOLT

2202213

$3.79

4

BATTERY-30AH,12 VOLT,AGM

4014609

$199.98

4

BATTERY-SEALED,32 AH,500 CCA [OPT]

4015955

$259.99

5

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

6

BRKT-BATTERY STRAP

5264056

$39.99

7

PAD, RACK MOUNT

5810455

$3.22

8

CABLE-BATT,6GA,BK,BAT/CHASS/TB

4015545

$62.92

9

CABLE-BATT,6GA,RD,BATT/SOL/TB

4015546

$72.60

10

CABLE, BATTERY, FLAT

4014423-940

$33.87

11

STUD

7519333

$7.94

12

NUT-M6 FLANGE,NYLOC

7547274

$1.19

12

NUT-M6 FLANGE,NYLOC

7547274

$1.19

13

REGULATOR-3PH,50A,SERIES,HISPD

4016868

$156.74

14

RETAINER-BOLT,1/4-20

7670154

$2.38

15

CABLE, BATTERY, FLAT [INCL. 22]

4014424-990

Unavailable

16

BLOCK-TERMINAL,3 POST,TALL

4015778

$32.37

17

COVER, TERMINAL BLOCK, 3 POST

4014659

$11.32

18

NUT-6MM X 1 NYLOK-Z

7546703

$1.19

19

NUT

7547341

$0.79

20

BOOT, BATTERY, RED

4014836

$8.08

21

BOOT, BATTERY, RED

4014994

$7.27

22

INSULATOR-CABLE

5410346

$7.73

23

M6X1.0X30 CARRIAGE CL8.8 ZC CL

7520559

$3.97

24

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.76

25

NUT-6MM X 1 NYLOK-Z

7546703

$1.19
