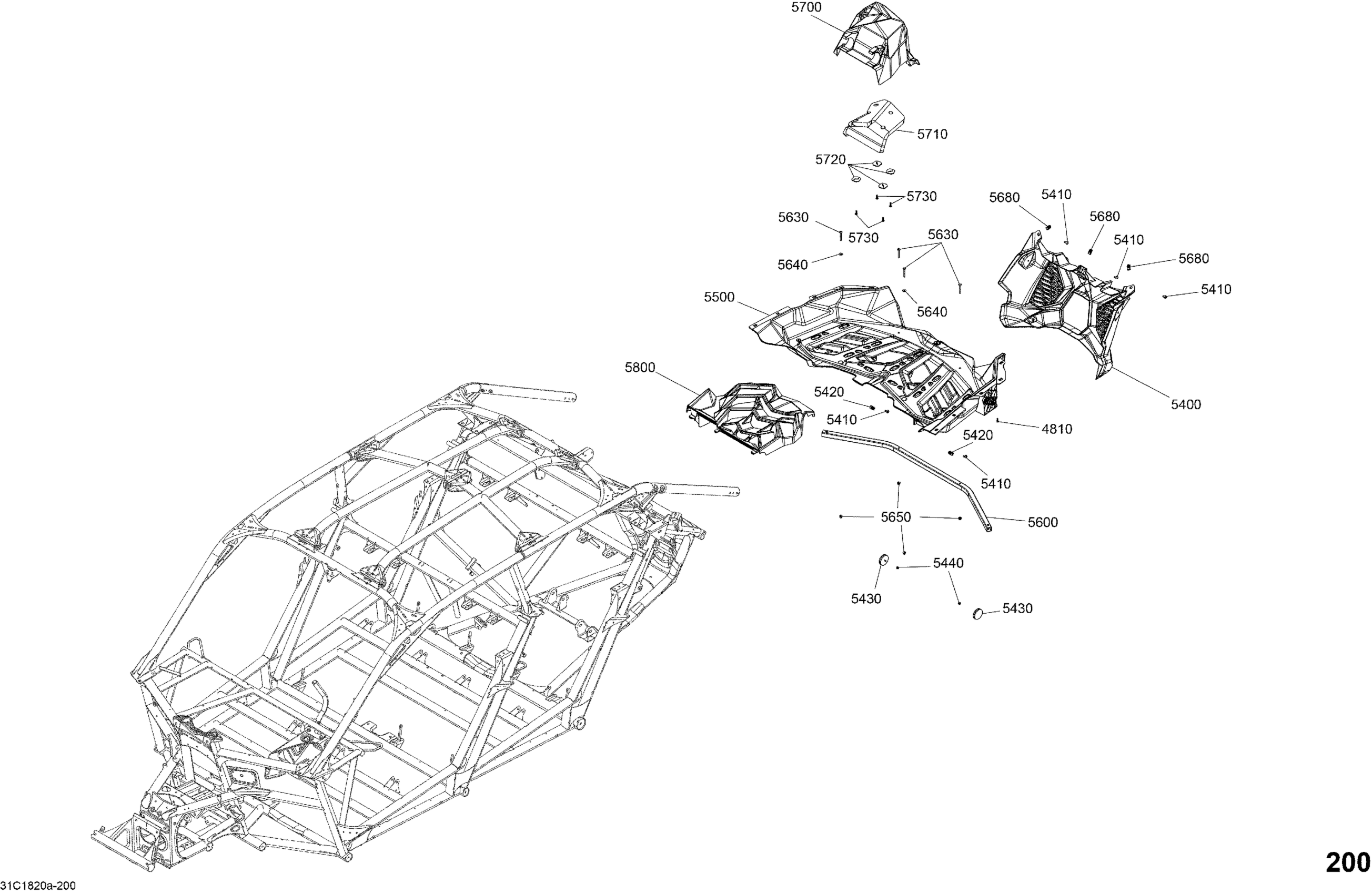

Can-Am Maverick X3 MAX Turbo - STD, 2018 Body Parts - Hyper Silver - Package STD - Rear Section Diagram

Description

Price

4810

Torx Screw K50 X 16

250000720

$1.39

5400

Rear Fairing

705017558

$193.05

5410

Torx Screw M6 X 20

250000722

$1.34

5420

Panel Nut M6 X 1.0

250100198

$1.73

5430

Red Reflector

705011221

$12.32

5440

Elastic Flange Nut M5

233251494

$1.74

5500

Luggage Rack Kit

715006590

$438.43

5600

Luggage rack Tube

705012589

$32.28

5630

Torx Truss M6 X 50

250000868

$1.74

5640

Stainless Steel Flat Washer

234062670

$1.74

5650

Hex. Flange Elastic Nut M6

233261494

$1.26

5680

Panel Nut M6 X 1.0

250100198

$1.73

5700

Air Inlet Cover

705012700

$46.12

5710

Foam Air Intake Cover

705011293

$11.83

5720

Support Plate

705003841

$0.91

5730

Torx Screw Truss Head K50X20 T20

250000760

$1.74

5800

Rear Cover

705013757

$212.28
