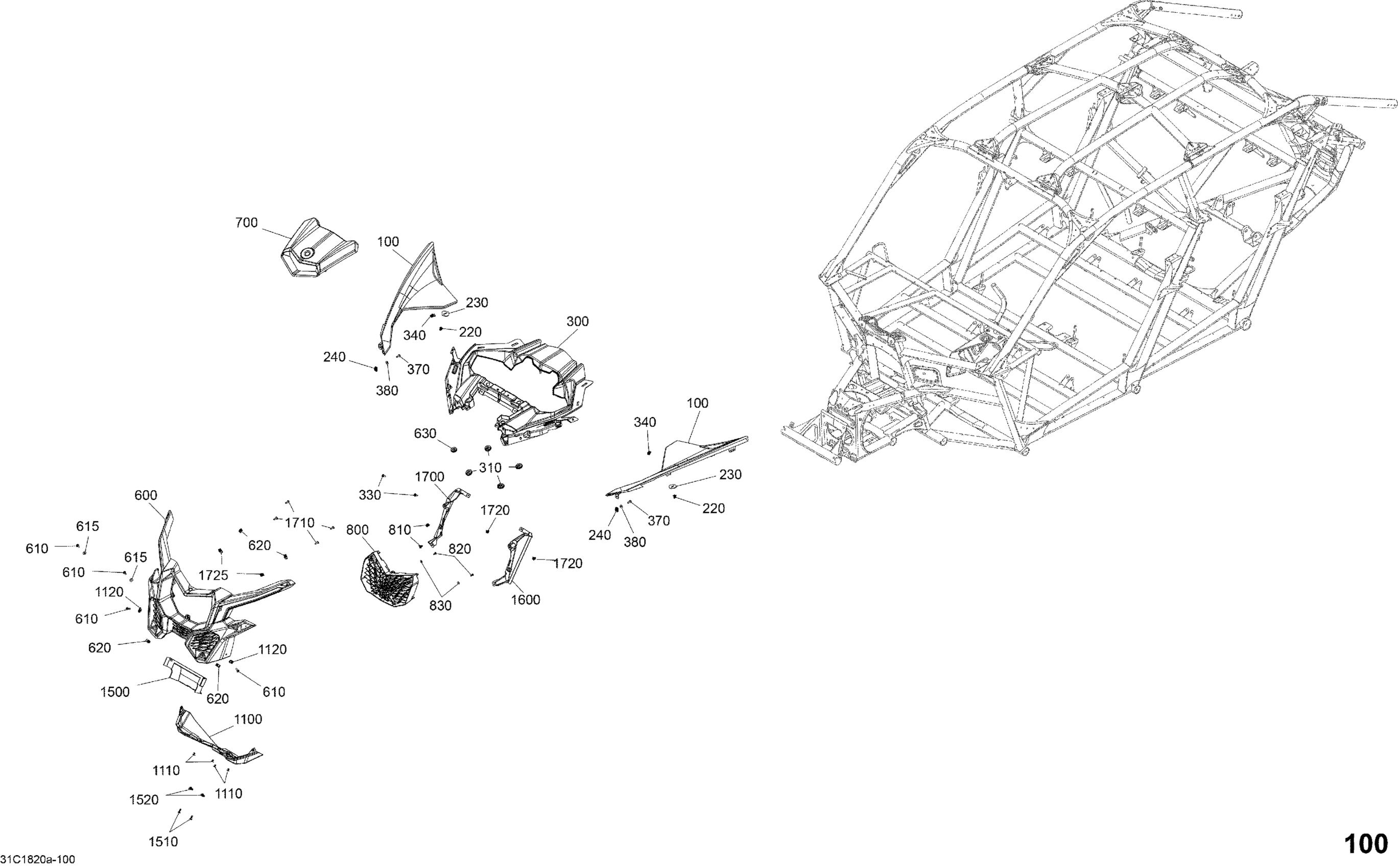

Can-Am Maverick X3 MAX Turbo - STD, 2018 Body Parts - Hyper Silver - Package STD - Front Section Diagram

Description

Price

100

Silver, LH Front Fender

705012463

$203.05

100

Hyper Silver, RH Front Fender This part replaces 705012464.

705014305

$128.43

220

Edge Clip

517302785

$0.70

230

Support Plate

705003841

$0.91

240

Panel Nut M6 X 1.0

250100198

$1.73

300

Central Hood

705014684

$72.19

310

Grommet

705010718

$2.69

330

Torx Screw M6 X 20

250000722

$1.34

340

Panel Nut M6 X 1.0

250100198

$1.73

370

Torx Screw M6 X 20

250000722

$1.34

380

Stainless Steel Flat Washer

234062670

$1.74

600

Front Facia

705009508

$69.20

610

Torx Screw M6 X 20

250000722

$1.34

615

Stainless Steel Flat Washer

234062670

$1.74

620

Panel Nut M6 X 1.0

250100198

$1.73

630

Grommet

517303756

$3.15

700

Sunburst Yellow, Facia Cover

705012465

$172.28

800

Radiator Front Grille

703501021

$50.74

810

Edge Clip

517302785

$0.70

820

Torx Screw K50 X 16

250000720

$1.39

830

Washer M5

250200025

$0.61

1100

Front Deflector

705009978

$70.74

1110

Pop Rivet 3/16"

293150103

$0.54

1500

Lower Radiator deflector

705010742

$16.89

1510

Torx Screw M6 X 20

250000722

$1.34

1520

Panel Nut M6 X 1.0

250100198

$1.73

1600

LH Front Radiator Deflector

705017559

$17.66

1700

RH Front Radiator Deflector

705017560

$17.66

1710

Torx Screw M6 X 20

250000722

$1.34

1720

Edge Clip

517302785

$0.70

1725

Panel Nut M6 X 1.0

250100198

$1.73
