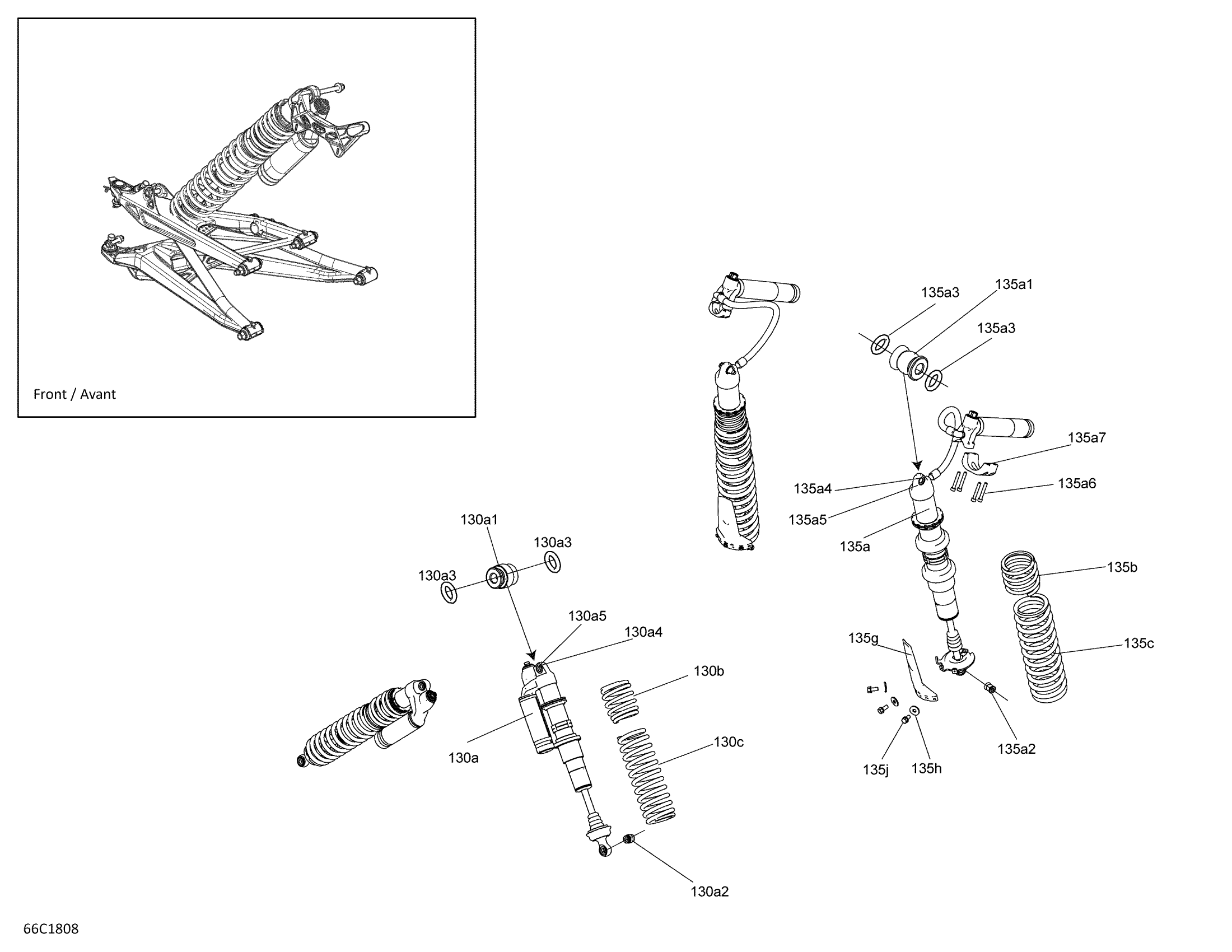

Can-Am Maverick X3 MAX Turbo - STD, 2018 Shocks Maverick X3 MAX - Turbo - STD Diagram

Description

Price

130a

LH Front Shock | MAX STD

706202782

$919.99

130a

RH Front Shock | MAX STD

706202783

$889.99

130a1

Spherical Bearing

715900337

$84.99

130a2

Ball Joint

706004078

$47.49

130a3

O-Ring Bushing

715900338

$12.63

130a4

Circlip

715900480

$11.49

130a5

Reducer

715900481

$27.99

130b

Deep Black, Compression Spring

706205333

$126.99

130b

Sunburst Yellow Front Spring | Hyper Silver

706203118

$126.99

130c

Black Front Spring | XRSDPS Package, Timeless Black Metallic

706202790

$153.49

130c

Sunburst Yellow Front Spring | Hyper Silver

706203119

$153.49

135a

LH Rear Shock | Standard Package

706002666

$989.99

135a

RH Rear Shock | Standard Package

706002667

$999.99

135a1

Spherical Bearing

715900337

$84.99

135a2

Ball Joint

706004078

$47.49

135a3

O-Ring Bushing

715900338

$12.63

135a4

Circlip

715900480

$11.49

135a5

Reducer

715900481

$27.99

135b

Deep Black, Compression Spring

706005126

$100.49

135b

SPRING - Call your local BRP dealership | Hyper Silver

706002935

Unavailable

135c

Black Rear Spring | Except XRSDPS Package

706002661

$153.49

135c

Sunburst Yellow Rear Spring | Hyper Silver

706002936

$153.49

135g

Protector

706202215

$11.99

135h

Washer M5

250200025

$0.74

135j

Hex Flange Screw M5 X 11

210251150

$2.11
