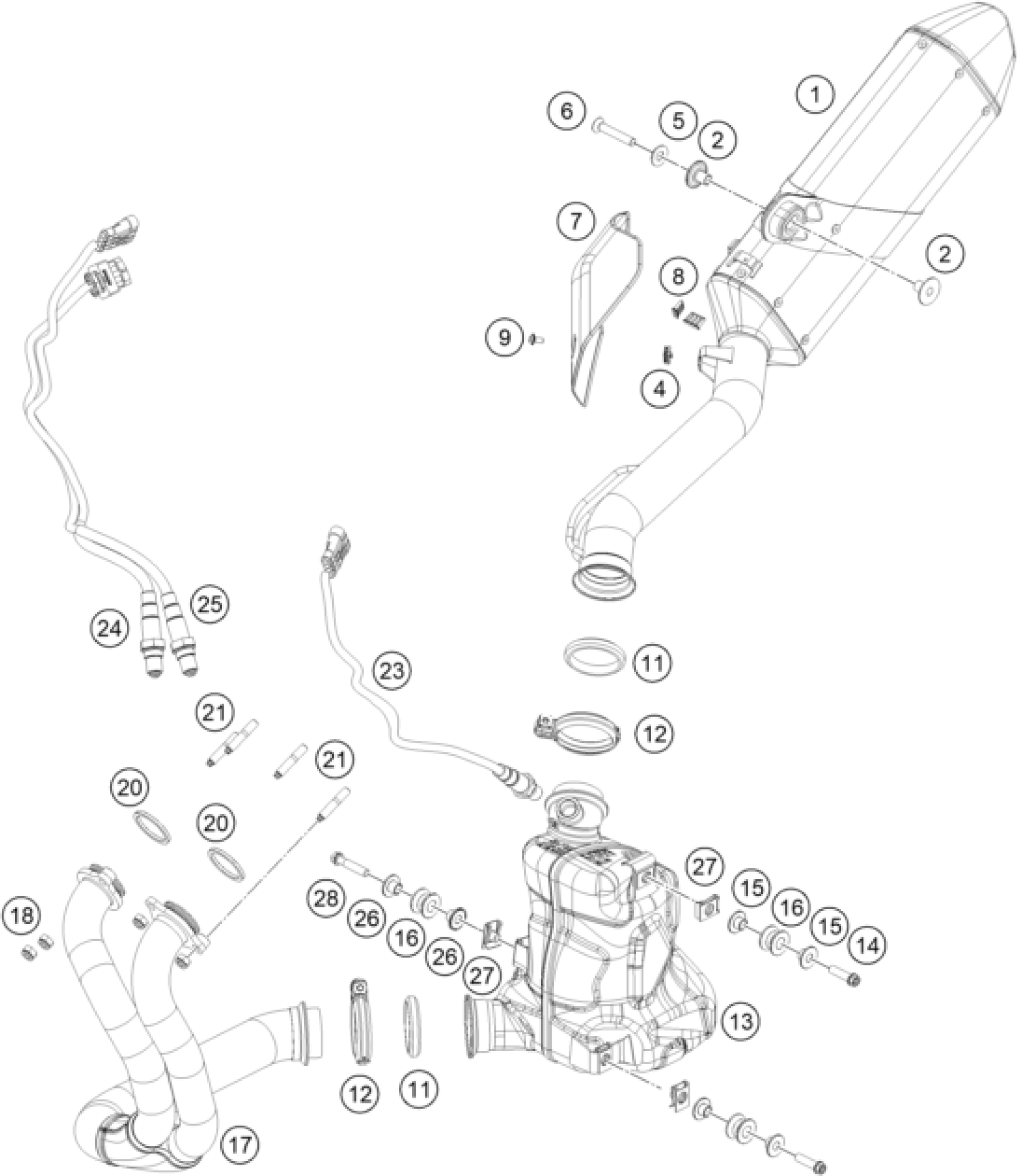

KTM 890 SMT 2024 EXHAUST SYSTEM Diagram

#

Description
Price

1

Silencer

63505183000

Unavailable

2

Bushing 8.5X11X29

61305069000

Unavailable

4

RANGE CHANGE METAL NUT M5 INOX

54603048600

Unavailable

5

Shape disc Alu

60405069000

Unavailable

6

COUN.-SUNK SCREW M8X50 ISA10.9

0019080506

Unavailable

7

Heat protection black cmpl.

63505111000C1

Unavailable

8

DAMPING ELEMENT SILICON

27005011011

Unavailable

9

SCREW TORX M5X10

78105081010

Unavailable

11

Manifold gasket

69005105005

Unavailable

12

Exhaust clamp tube 50 mm

63605058100

Unavailable

13

Premuffler

A61005050000

Unavailable

14

HH COLLAR SCREW M8X35 TX40

0025080356S

Unavailable

15

collar bushing 8.5x12x23.5x10

58405050065

Unavailable

16

damp. component silicone grey

54305068100

Unavailable

17

Manifold

63605007000

Unavailable

18

self-locking nut M8 Cu

51010086100

Unavailable

20

Exhaust gasket

64105005000

Unavailable

21

stud screw 835 M8x25 - 10.9

63505015000

Unavailable

24

O2 Sensor LSF 4

63541090000

Unavailable

25

O2 Sensor LSF 4

63541190000

Unavailable

26

Collar bushing, 8.5x12x23.5x11

0800000901200

Unavailable

27

RANGE CHANGE METAL NUT M8

54603048000

Unavailable

28

HH COLLAR SCREW M8X35 TX40

0025080356S

Unavailable

23

Oxygen sensor

A60741090000

Unavailable
