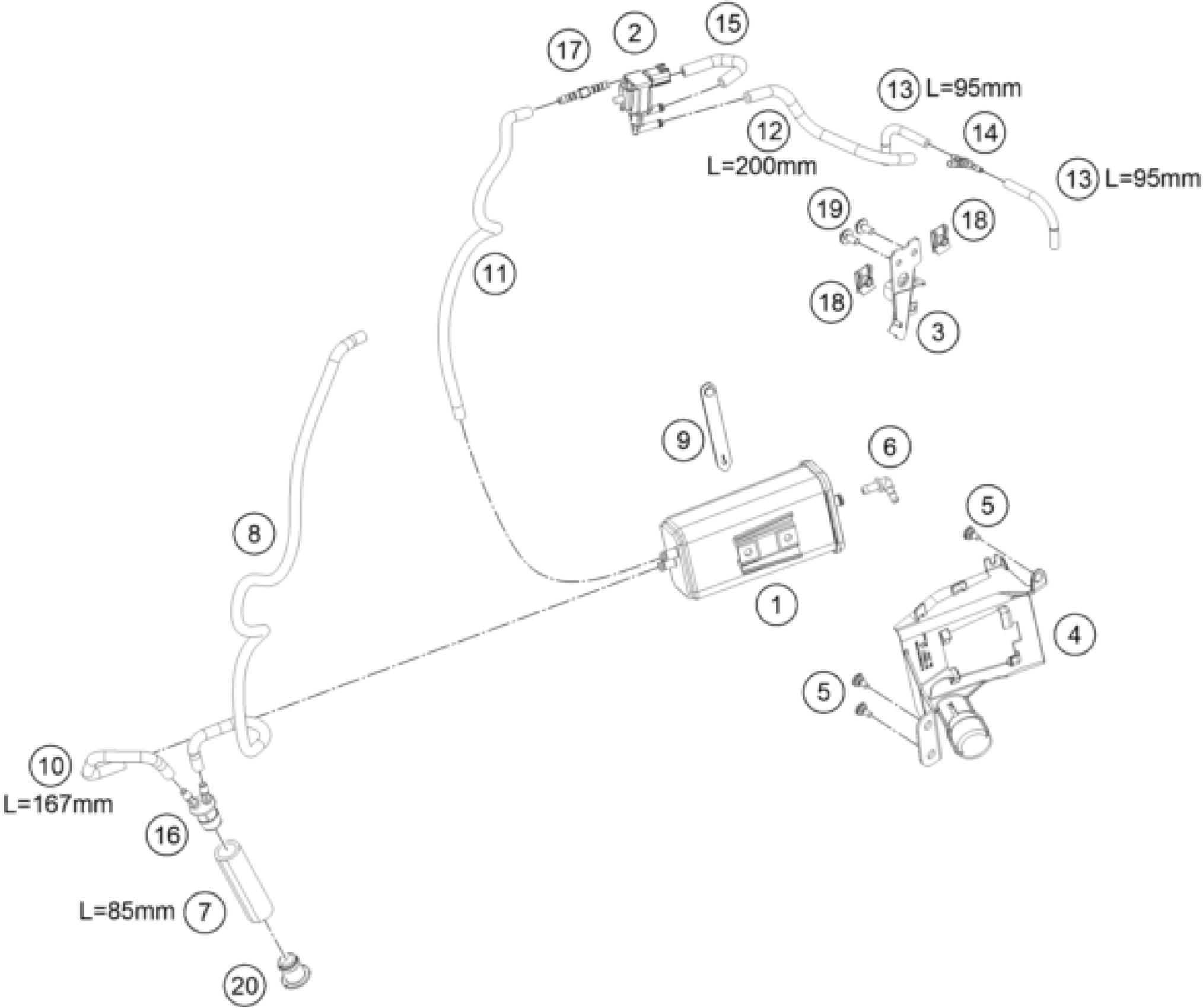

KTM 890 SMT 2024 EVAPORATIVE CANISTER Diagram

#

Description
Price

1

CARBON CANISTER

75015001200

Unavailable

2

Purge valve

A62415015000

Unavailable

3

Retain. bracket evap. canis. v

A61015126015

Unavailable

4

Active Carbon Filter holder

A67515003010

Unavailable

5

special screw M5x12

69008021160

Unavailable

6

Angle piece, reservoir

60035068000

Unavailable

7

Hose, FKM/ECO, 18x25 per m.

61915022001

Unavailable

8

Hose fuel tank vent evap. cani

A67515022000

Unavailable

9

RUBBER CABLE TIE 75MM 03

60011093075

Unavailable

10

Hose 6x10 FKM/ECO L=167

A67515024000

Unavailable

11

Evaporative canister hose - pu

63515028100

Unavailable

12

Hose FPM/ECO 6x10 L=200

78015019200

Unavailable

13

Hose, FPM/ECO 4/8 L=95

78015021095

Unavailable

14

Hose connection nozzles

64115026000

Unavailable

16

Y-PIECE YS 6-18-6

61915028000

Unavailable

18

clip nut M6

54603048100

Unavailable

19

special screw M6x18-8.8 ISA30

69014017000S

Unavailable

20

Plug D=18

61915026000

Unavailable

15

HOSE PURGE VALVE

61415021000

Unavailable

17

HOSE CONNECTION STRAIGHT

69015019010

Unavailable
