Description

Price

1

Main harness

A61011075000

$1,078.42

2

Engine wiring harness

63711085000

$65.16

3

Cover flap, starter relay

64111058110

$3.08

4

Starter relay

76211058000

$79.19

5

RUBBER CABLE TIE 75MM 03

60011093075

Unavailable

5

RUBBER CABLE TIE 45MM 03

60011093045

Unavailable

6

BAR SPACER 4/7 BLACK

60111094100

$5.79

7

RELAY CM1A-R-12V-H80 07

61111057000

$16.82

8

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

8

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

8

Cable tie 200/4.6mm black

44011076200

Unavailable

9

Plug-in fuse, big 30A

58011109130

$2.05

10

Temperatur sensor

61111018100

$31.59

11

Cable holder, attachable

64111059020

$3.08

12

DC HORN 12V

76011060100

$20.66

13

CCU control unit support

A61011083000

$12.43

17

HH collar screw M6x20 TX30

0024060206

$3.08

16

VOLTAGE REGULATOR

60311034000

$177.55

15

Oval head screw M5x14 TX25

58605083014

$3.08

19

Power socket 12V

60711042000

$55.81

18

Lid 12V-socket

60311042050

$7.38

14

Front connector support

A61011083050

$11.49

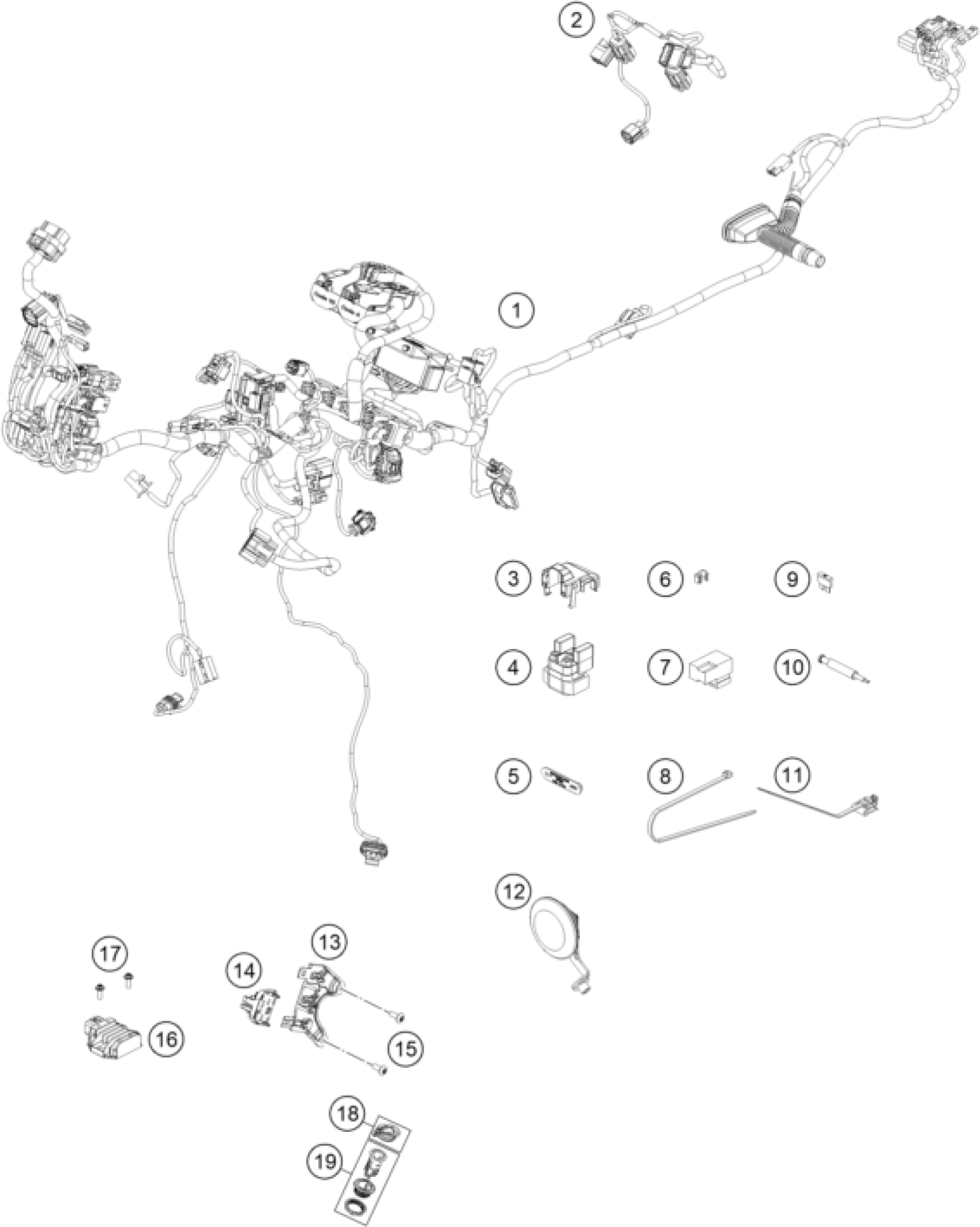

KTM 890 SMT 2023 WIRING HARNESS Diagram

Main harness

Engine wiring harness

Cover flap, starter relay

Starter relay

RUBBER CABLE TIE 75MM 03

RUBBER CABLE TIE 45MM 03

BAR SPACER 4/7 BLACK

RELAY CM1A-R-12V-H80 07

CABLE TIE 300/4,8MM BLACK

CABLE TIE 140/2,5MM BLACK

Cable tie 200/4.6mm black

Plug-in fuse, big 30A

Temperatur sensor

Cable holder, attachable

DC HORN 12V

CCU control unit support

HH collar screw M6x20 TX30

VOLTAGE REGULATOR

Oval head screw M5x14 TX25

Power socket 12V

Lid 12V-socket

Front connector support
