Partiron

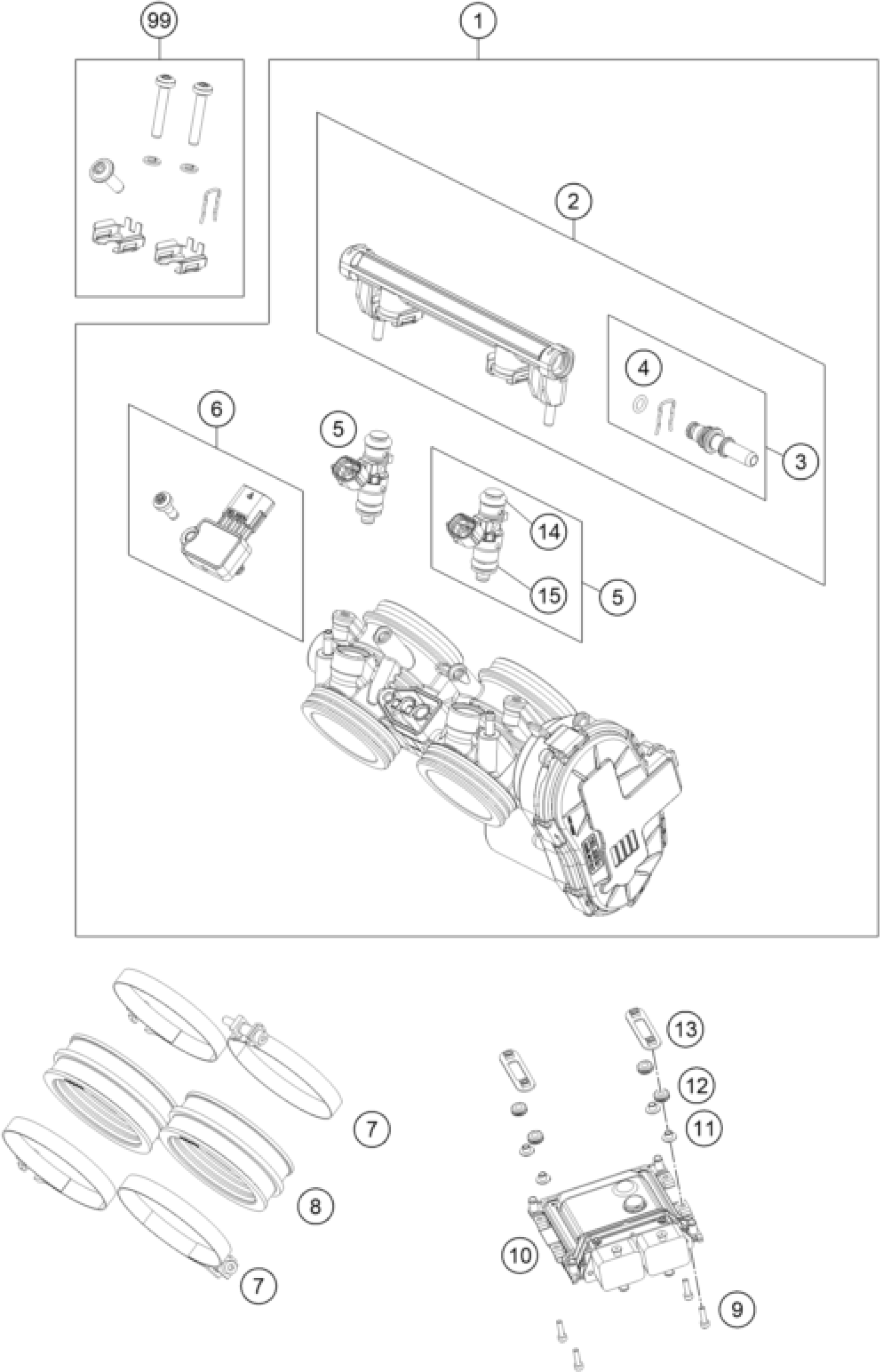

KTM 890 SMT 2023 THROTTLE BODY Diagram

#

Description
Price

1

Throttle body

63641101000

$970.71

2

Fuel line

63541113050

$150.15

3

Fuel connection compl.

63541113044

$37.48

4

Square and dust seal

63541013010

$3.08

5

Injektor

63641023044

$310.69

6

MAP sensor, cmpl.

63641085044

$317.42

7

hose clamp Gemi 66

61236048000

$9.53

8

Intake Sleeve

63536044000

$27.57

9

AH screw DIN0912 M4x16 self-lo

0912040163S

$1.49

10

EFI control unit

63541031100

$1,173.04

11

Collar Bushing 4.5x6x12x6.3

64141030010

$2.05

12

Rubber grommet control unit

64141030000

$1.49

13

Mounting Bracket ECU cpl.

64141029000

$9.06

99

Smallpart kit

63641099000

$43.00

14

O-ring

55641023020

$10.56

15

O-ring

55641023010

$7.66
