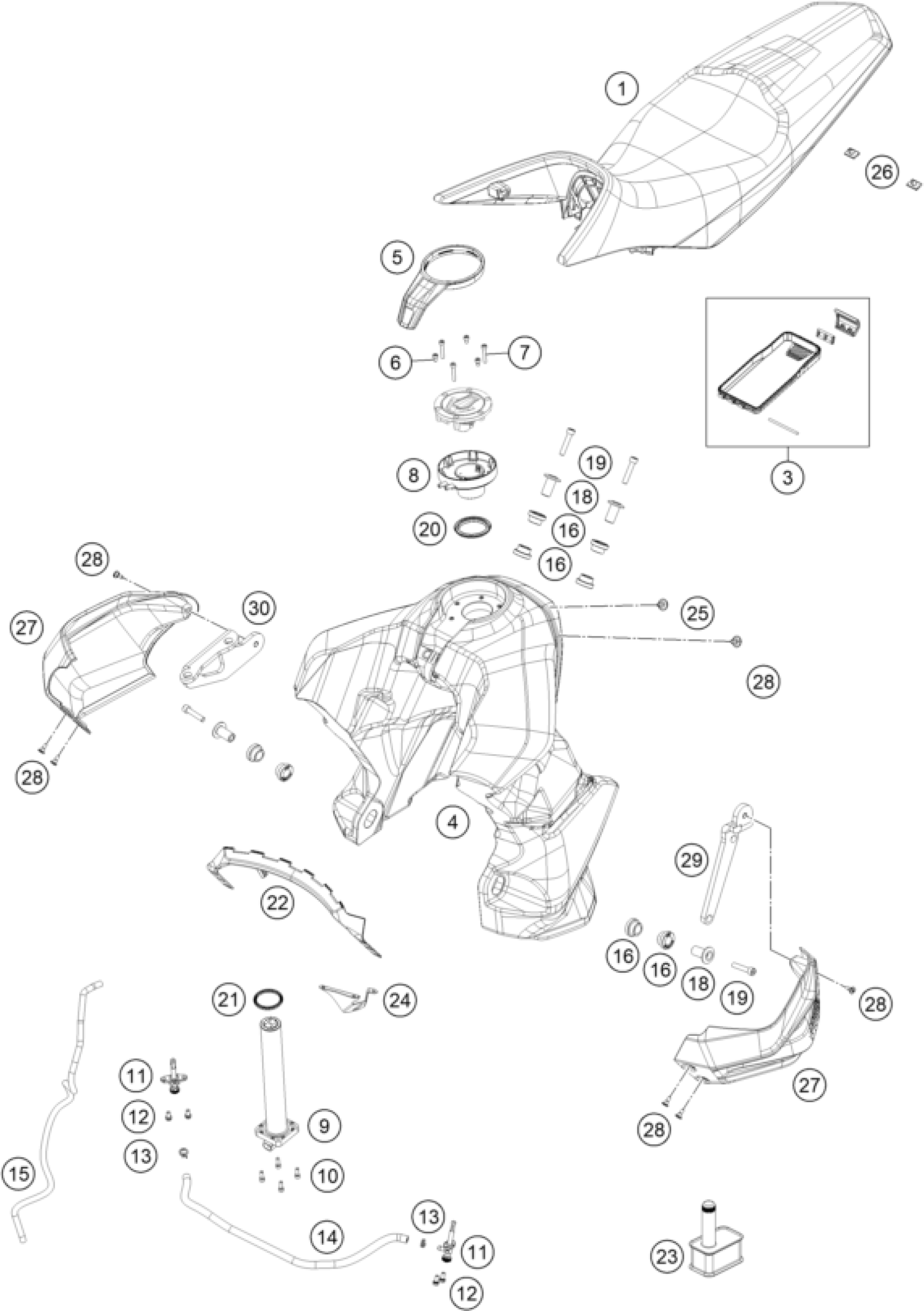

KTM 890 SMT 2023 TANK, SEAT Diagram

#

Description
Price

1

Reat rider Adv. R

A67507140000C11

$270.30

3

Tech-Box Kit

63507047044

$60.58

4

Fuel tank

A67507013000CC

$1,472.62

5

Tank Cover

A67507058000

$10.87

6

SHCS DIN 912 M5x8

0912050083

$1.49

7

AH SCREW DIN0912-M 5X30

0912050303

$1.49

8

Fuel tank filler neck

A61007008050

$13.46

9

Fuel level sensor

A67507080000

$138.46

10

AH collar screw DIN 912 M5x16

0912050163

$1.49

11

Fuel cock cmpl.

58507003200

$26.55

12

HH collar screw M6x12 TX30

0025060126

$3.08

13

CLAMP YDNAC 10128 12MM

58031005000

$3.08

14

Tank equalization hose

A67507016000

$118.92

15

Tank overflow hose 810 mm

A67515027000

$41.79

16

collar bushing, front tank hol

61007065000

$7.85

18

Bearing sleeve, external

6100716000001

$9.90

19

AH collar screw DIN0912 M8x40

0912080403

$2.05

20

gasket tank insert

21007008151

$14.02

21

Gasket fuel lever sensor

60307080090

$50.67

23

Motorex Fuel Stabilizer 125ml

00001000015

$19.81

24

Cover fuel pump

63507087010

$16.82

25

Seat screw M6x11.5 ISA30

0900000601200

$4.11

26

Isolation pad

77307040041

$2.05

27

Tank protector set

A67507025011

$32.55

28

Special screw M5x14

60708008071

$2.05

22

Radiator Protector

A67535036000

$9.26

29

Tank protector engine fixing a

A67507025035

$34.77

30

Tank protector engine fixing a

A67507025045

$36.64
