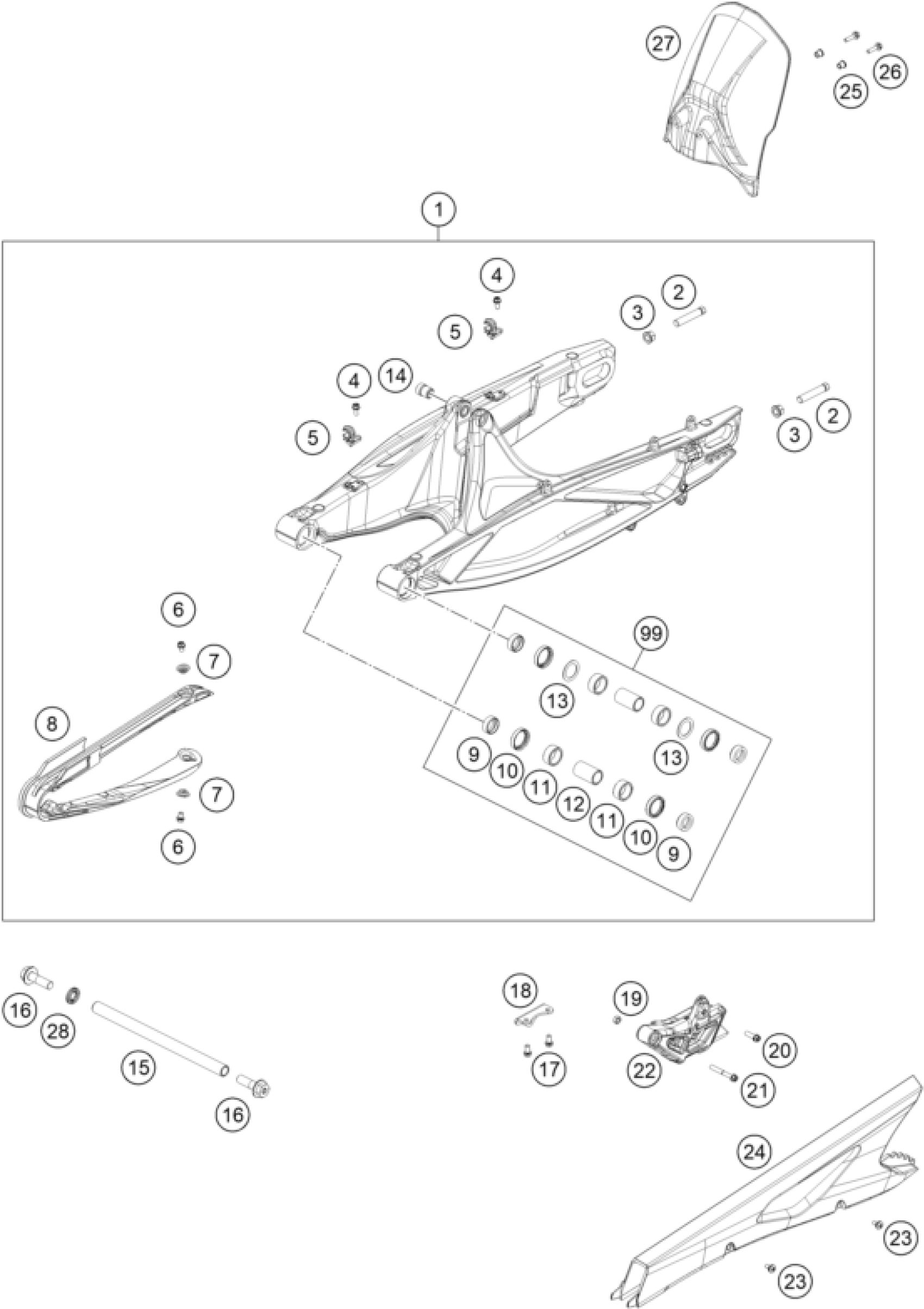

KTM 890 SMT 2023 SWING ARM Diagram

#

Description
Price

1

Swingarm cpml. Black

6350403004433

Unavailable

2

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

3

screw M10x1.25x50 WS10

50304040100

Unavailable

4

HH collar screw M5x12 TX30

0025050126

Unavailable

5

Clamp

60104142000

Unavailable

6

special screw M5x12

69008021160

Unavailable

7

BUSH FOR CHAINSLIDER GUARD 02

46104066050

Unavailable

8

chain slide protection

64104066000

Unavailable

9

Bucket f. shaft seal ring 03

54804034000

Unavailable

10

radial shaft seal 25x32x7

0760253270

Unavailable

11

Needle bushing HK2212V 22/28/1

0618222812

Unavailable

12

Bearing sleeve 17x22x38.7 03

59404032000

Unavailable

13

STOP DISK 22,2X31,7X1

54603036000

Unavailable

14

bushing shock mounting

64104030020

Unavailable

15

swing arm bolt

64104037000

Unavailable

16

Special screw M12x40 WS19

76504038000

Unavailable

17

HH collar screw M6x12 TX30

0025060126

Unavailable

18

Retaining bracket, chain guide

63504030010

Unavailable

19

Hex. nut DIN 934 M6

0934060003

Unavailable

20

HH collar screw M6x20 TX30

0025060206

Unavailable

21

HH COLLAR SCREW M6X45 TX30

0025060456

Unavailable

22

CHAIN GUIDE CPL.

78004070100

Unavailable

23

special screw M5x12

69008021160

Unavailable

24

Chainguard

63504061000

Unavailable

25

bushing 5,5x8,3x9

64104050010

Unavailable

26

HH collar screw M5x20 TX30

0025050206

Unavailable

27

Splash protection swingarm

63504050000

Unavailable

99

SWING ARM REPAIR KIT SX-F

79004030010

Unavailable

28

Wedge lock washer DIN 25201-13

0252011302500

Unavailable
