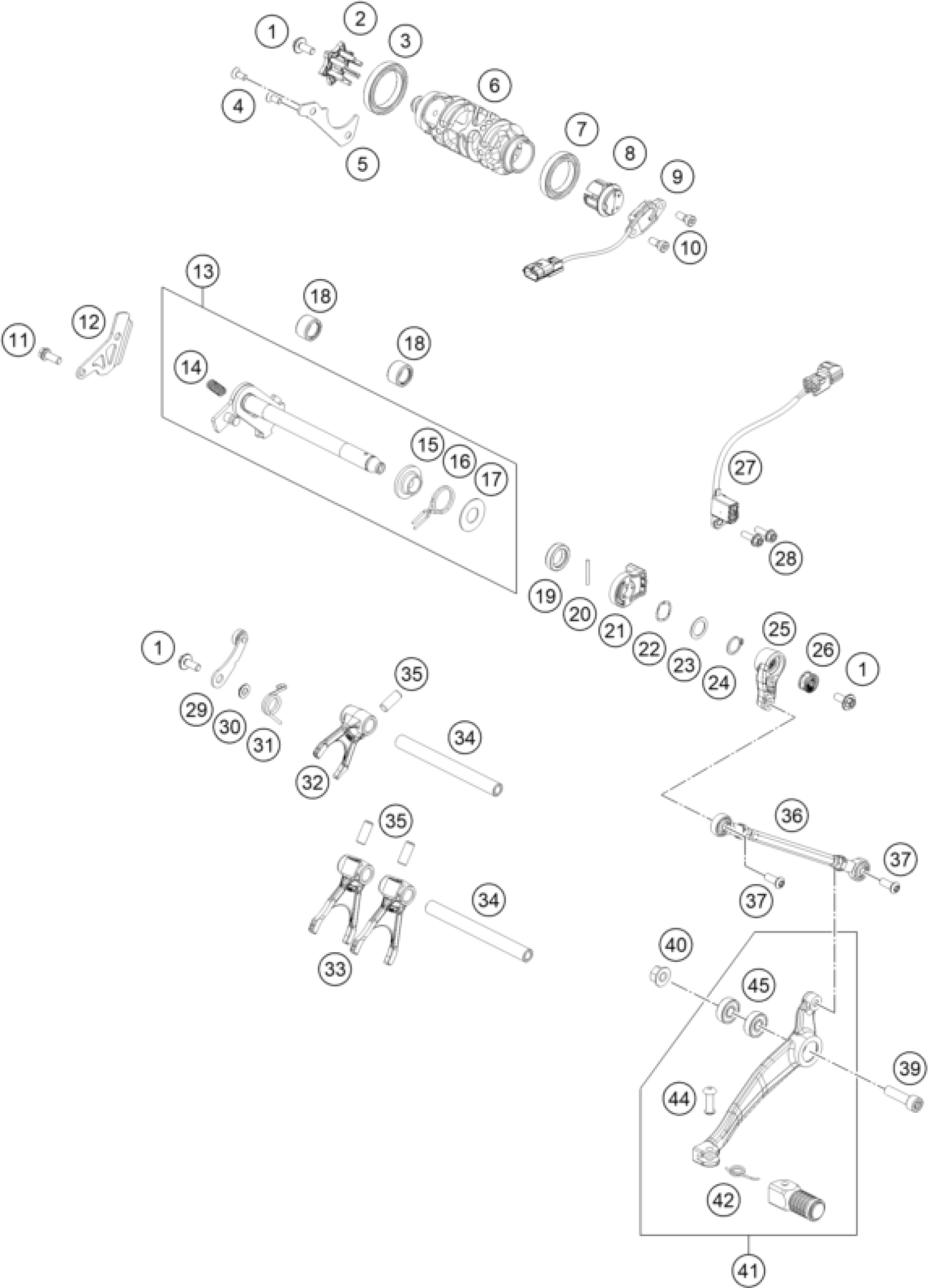

KTM 890 SMT 2023 SHIFTING MECHANISM Diagram

#

Description
Price

1

HH collar screw M6x15 TX30

0024060156S

$2.05

2

Shift star cmpl.

63534115000

$17.48

3

deep groove ball bearing 6807

0625068070

$26.73

4

INT. TORX FLAT HEAD M5X12 T25

0019050121S

$2.05

5

Bearing retaining bracket

63534011200

$2.05

6

shift drum 6G

63534012001

$95.55

7

Grooved ball bearing 42/30 C3

0410003000700

$20.56

8

Magnet bracket cmpl.

79234012020

$58.71

9

gear position sensor

79211023000

$121.35

10

CYLIND. SCR. DIN6912 M5X12 8.8

0984050123S

$2.05

11

HH collar screw M6x16 TX30 SL

0025060166S

$2.05

12

bearing retaining plate

63533022000

$4.11

13

shift shaft cpl.

63534005033

$66.75

14

TENSIONING SPRING 0,8MM

56534013100

$1.49

15

SPRING GUIDE

54634020000

$6.44

16

RETURNSPRING 2MM

61234014000

$6.44

17

STOP DISK 14X30X1

54634050000

$2.05

18

needle sleeve HK 1412 14x20x12

54632095000

$7.00

19

radial shaft seal 14x24x6 B

0760142460

$9.25

20

dowel pin DIN 7 A1 2.5m6x24

0007025241

$1.49

21

magnet holder

63534050000

$49.55

22

wave spring Smalley SSB-0075-S

63534050010

$7.00

23

Thrust washer DIN 988 14x20x0.

0988142005

$1.49

24

retaining ring DIN 471 14x1

0471140100

$1.49

25

Pull Rod

6413403000033

$42.63

26

PAIR NORDLOCK WASHER M6

50233041500

$4.11

27

Shift assistant sensor

63534051000

$155.58

28

HH collar screw M6x16 TX30 SL

0025060166S

$2.05

29

detent arm cpl.

63534024000

$32.53

30

step washer

63534052000

$2.05

31

Detent arm spring

63634023000

$1.49

32

shift fork 5-6 gear

63534002000

$14.67

33

Shift fork

63534001100

$17.48

34

shift fork shaft

75034019100

$12.99

35

needle roller D8x20

0402080200

$2.05

36

Shift rod cmpl.

63534036144

$31.22

37

Oval head screw ISR M6x20-A2-7

0738060205S

$1.49

39

screw ISO 14579-M8x30-10.9-MK

014579080301S

$2.05

40

Self locking nut M8 10.9

54310086200

$3.08

41

Gear shift lever preassembled

6353403104433

$121.73

42

SHIFTING LEVER SPRING 250

54634032100

$3.08

44

BOLT 6X25 FOR SHIFT LEVER

54634031050

$7.85

45

Grooved ball bearing 608 2RS C

0625006087

$21.40
