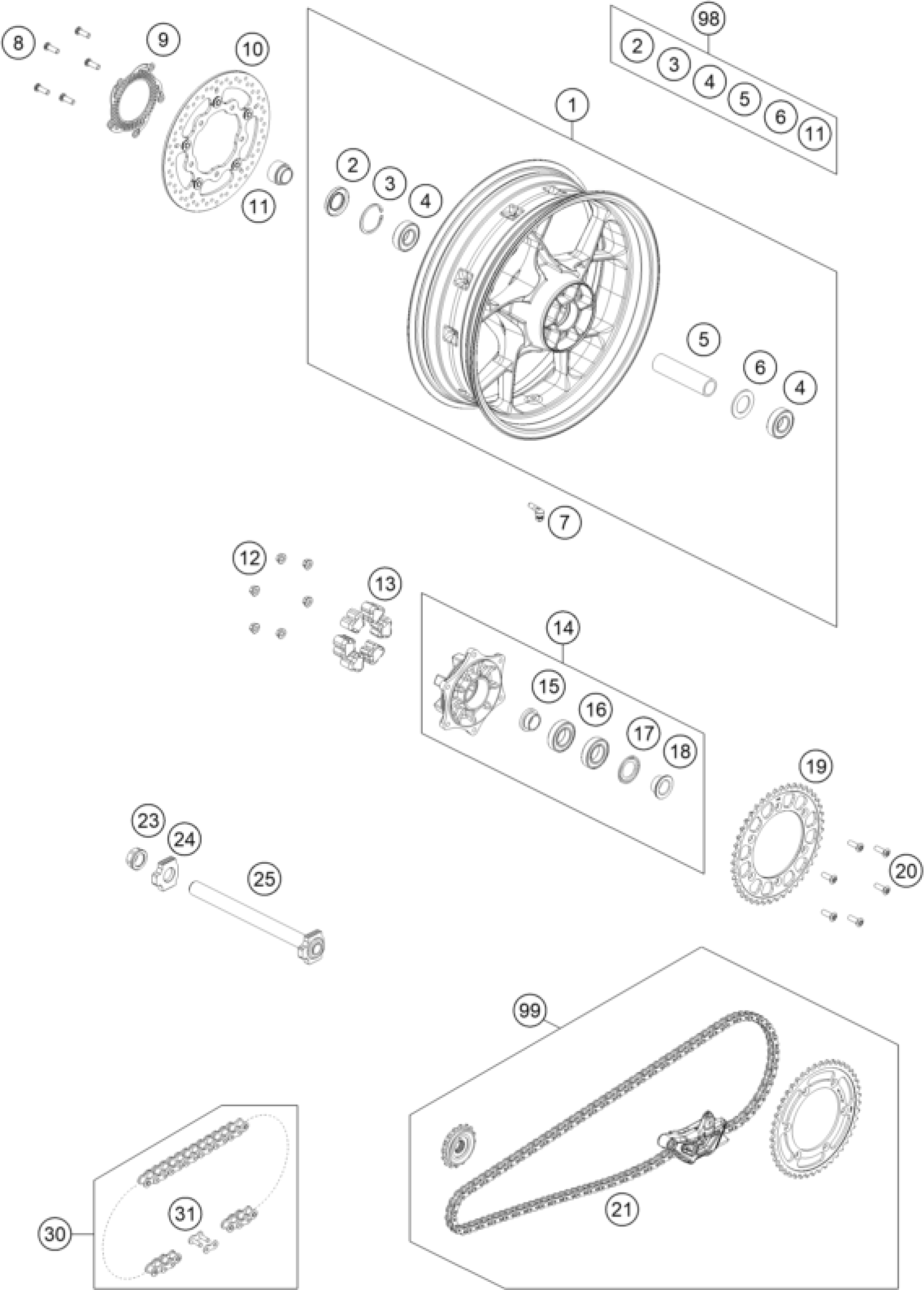

KTM 890 SMT 2023 REAR WHEEL Diagram

#

Description
Price

1

Rear wheel cmpl. 5,5x17" orang

64110001244EB

Unavailable

2

Radial shaft seal 30X52X7

0760305271

Unavailable

3

CIRCLIP DIN0472-52X2

0472052200

Unavailable

4

Grooved ball bear. 6205-2RSHC3

0625062052

Unavailable

5

Bearing spacing tube L=124.8mm

60010011000

Unavailable

6

Spacer ring 03

60010015000

Unavailable

7

VALVE ANGLED

61009076100

Unavailable

8

Special screw M8X25 SL TX40

76009062000

Unavailable

9

Phonic wheel, rear

76042021100

Unavailable

10

Rear brake disc D=260x5

A67510060000

Unavailable

11

Spacer right rear wheel

A67510013000

Unavailable

12

Hex. nut DIN EN 1661 M8 WS13

06923080003

Unavailable

13

Rubber damping block 91

54610459000

Unavailable

14

Sprocket wheel carrier cmpl. b

7501005004433

Unavailable

15

SPACER BUSH. SPR. SUPP. IN. 06

60110014000

Unavailable

16

BALL BEARING 6006 DDU2CG23S6NM

0625060060

Unavailable

17

NILOS RING 6006AV

60110016000

Unavailable

18

SPACER BUSH. SPROCKET SUPP. 06

60110012000

Unavailable

19

Rear sprocket 43Z

75010051043

Unavailable

19

SPROCKET STEALTH 40T 07

75010051040

Unavailable

19

sprocket

75010051041

Unavailable

19

SPROCKET STEALTH 42T 07

75010051042

Unavailable

20

COUNTER-SUNK SCREW ISA45 M8X26

0019080266S

Unavailable

21

chain X-Ring 118 links with ch

63510067118

Unavailable

23

Collar nut M25X1.5 WS=32 05

61010086000

Unavailable

24

Chain tension adjuster, right,

60010084000

Unavailable

25

Rear axel cmpl.

69010181044

Unavailable

30

chain DID 118 roll

76910065118

Unavailable

31

Rivet link chain DID 520 VP2-T

76910066000

Unavailable

98

wheel bearing repair kit

A67510015000

Unavailable

99

Drivetain kit 16/43

SPA216G433M118E

Unavailable

19

KETTENRAD 44Z 08

75010051044

Unavailable

19

Sprocket 45-t steel

75010051045

Unavailable
