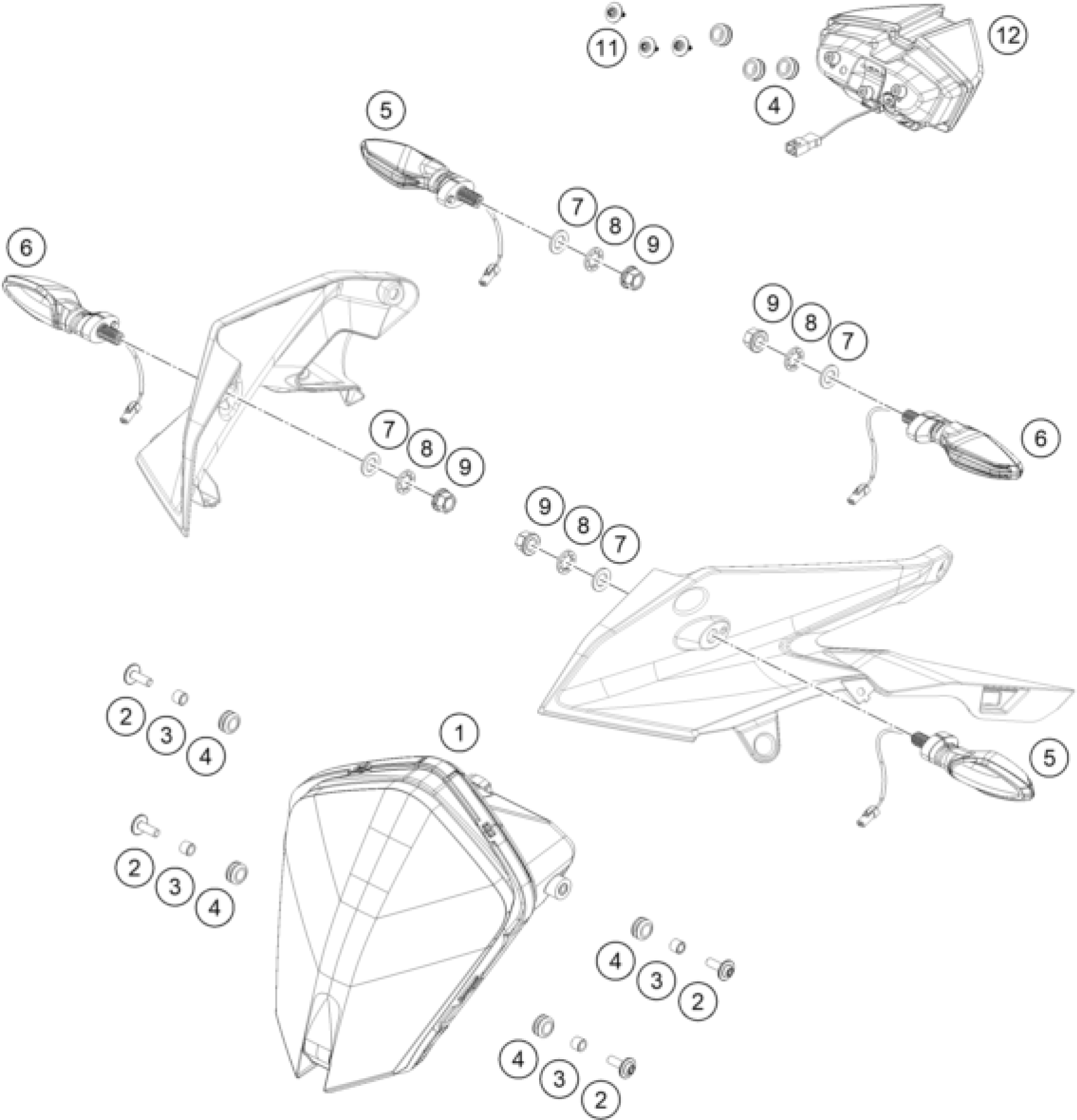

KTM 890 SMT 2023 LIGHTING SYSTEM Diagram

#

Description

Price

1

Headlight

A61014001000

$855.24

2

special screw M6x18-8.8 ISA30

69014017000S

$2.05

3

Bushing 6.1X9.2X7.5 08

69014014000

$3.08

4

rubber grommet 9x11x16x8.5 mm

60006001022

$2.05

5

turn signal front left/rear ri

60314025000

$42.61

6

turn signal front right/rear l

60314026000

$42.61

7

Washer DIN0433-M10

0433100003

$1.49

8

LOCK WASHER DIN6797-J10,5 ZI

0797100003

$1.49

9

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

11

EJOT DELTA PT SCREW 45X12-Z

0081645121

$1.49

12

Tail light

63514040000

$169.60
