Description

Price

1

Fork outer tube 44x560 dt54 db

43578142

$136.69

2

Fork protection ring d43

43578206

$2.05

3

O-ring 40x2,5 VMQ70 red ISO 36

43578219

$4.11

4

Right fork shoe + inner tube

S444310015S00C1

$549.58

5

Left fork shoe + inner tube

S444310014S00C1

$548.00

6

HH collar screw M8x20

0025080206

$2.05

7

890 SM T cartridge kit right

43578176S9

$373.06

8

890 SM T cartridge kit left

43578195S9

$373.06

9

Screw cap M51x1.5 black right

43578240S

$108.08

10

Screw cap M51x1.5 black left c

43578239S

$106.86

11

O-ring 45x2 NBR70 siliconized

46810340

$1.49

13

Sticker set, APEX PRO OC 90x40

52000209SET

$46.74

14

GUIDE BUSHING SET

R14042T

Unavailable

15

Fork sealing kit 43mm

R516T

Unavailable

16

HS cylinder-head screw M10x25

43578177S1

Unavailable

17

Shim Kit Fork

RP80002

Unavailable

18

Adjuster kit fork

RP10026T

Unavailable

97

Fuchs grease IPR (250g)

T14034

Unavailable

98

Fork Fluid Viscosity 4.0 5L

48601166S1

Unavailable

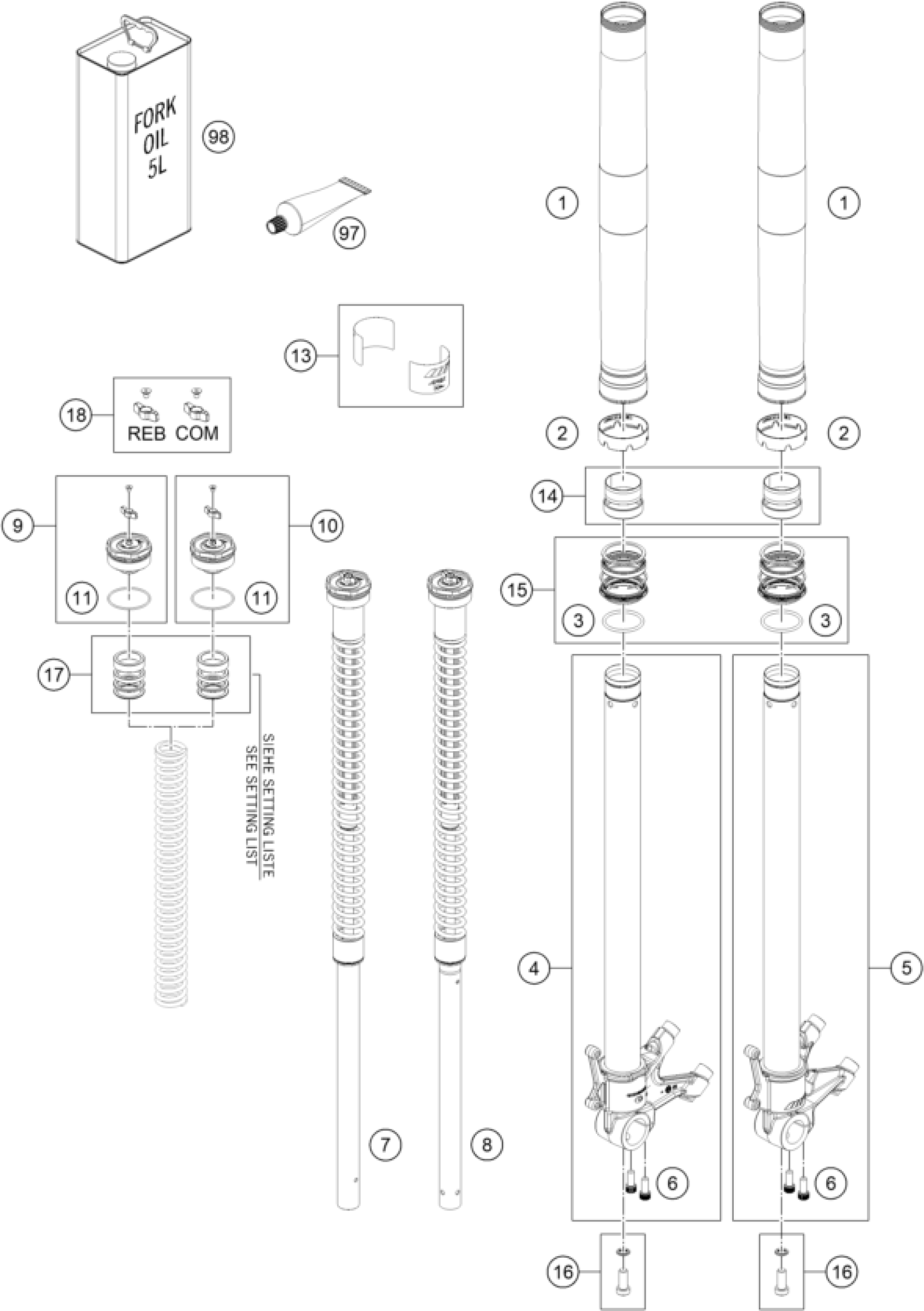

KTM 890 SMT 2023 FRONT FORK DISASSEMBLED Diagram

Fork outer tube 44x560 dt54 db

Fork protection ring d43

O-ring 40x2,5 VMQ70 red ISO 36

Right fork shoe + inner tube

Left fork shoe + inner tube

HH collar screw M8x20

890 SM T cartridge kit right

890 SM T cartridge kit left

Screw cap M51x1.5 black right

Screw cap M51x1.5 black left c

O-ring 45x2 NBR70 siliconized

Sticker set, APEX PRO OC 90x40

GUIDE BUSHING SET

Fork sealing kit 43mm

HS cylinder-head screw M10x25

Shim Kit Fork

Adjuster kit fork

Fuchs grease IPR (250g)

Fork Fluid Viscosity 4.0 5L
