Description

Price

1

CARBON CANISTER

75015001200

$66.66

2

EVAP valve

76015015000

$254.78

3

Retaining bracket ACF valve cp

63515026010

$58.43

4

Active Carbon Filter holder

A67515003010

$13.83

6

Angle piece, reservoir

60035068000

$3.08

7

Hose, FKM/ECO, 18x25 per m.

61915022001

$8.69

8

Hose fuel tank vent evap. cani

A67515022000

$57.77

10

Hose 6x10 FKM/ECO L=167

A67515024000

$16.82

11

Evaporative canister hose - pu

A67515028000

Unavailable

12

Hose FPM/ECO 6x10 L=200

78015019200

Unavailable

13

Hose, FPM/ECO 4/8 L=95

78015021095

Unavailable

14

Hose connection nozzles

64115026000

$4.11

16

Y-PIECE YS 6-18-6

61915028000

$5.23

18

clip nut M6

54603048100

$4.11

19

HH collar screw M6x13 TX30

0024060136

$3.08

20

Plug D=18

61915026000

$5.23

5

special screw M5x12

69008021160

$4.11

9

RUBBER CABLE TIE 75MM 03

60011093075

$5.23

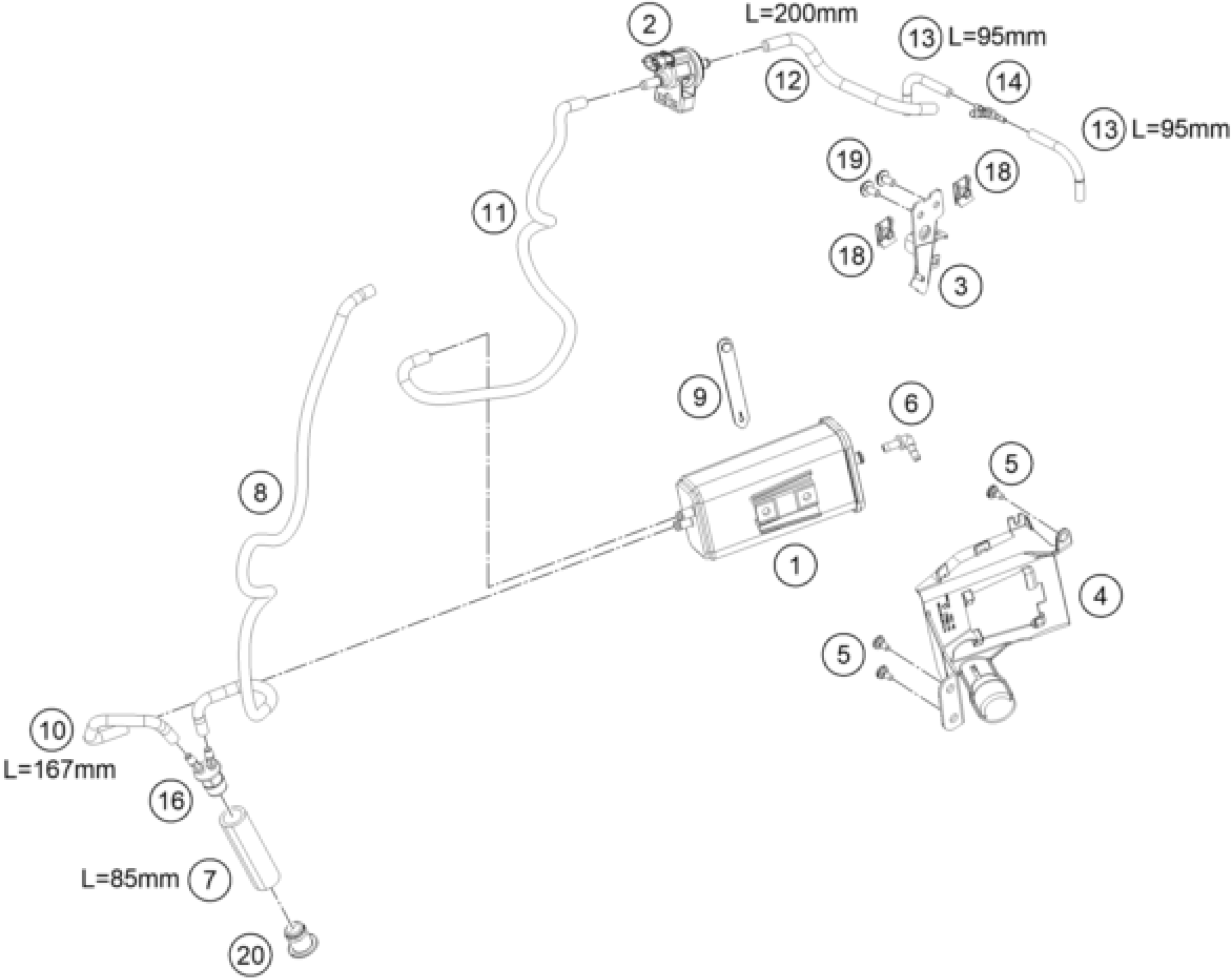

KTM 890 SMT 2023 EVAPORATIVE CANISTER Diagram

CARBON CANISTER

EVAP valve

Retaining bracket ACF valve cp

Active Carbon Filter holder

Angle piece, reservoir

Hose, FKM/ECO, 18x25 per m.

Hose fuel tank vent evap. cani

Hose 6x10 FKM/ECO L=167

Evaporative canister hose - pu

Hose FPM/ECO 6x10 L=200

Hose, FPM/ECO 4/8 L=95

Hose connection nozzles

Y-PIECE YS 6-18-6

clip nut M6

HH collar screw M6x13 TX30

Plug D=18

special screw M5x12

RUBBER CABLE TIE 75MM 03
