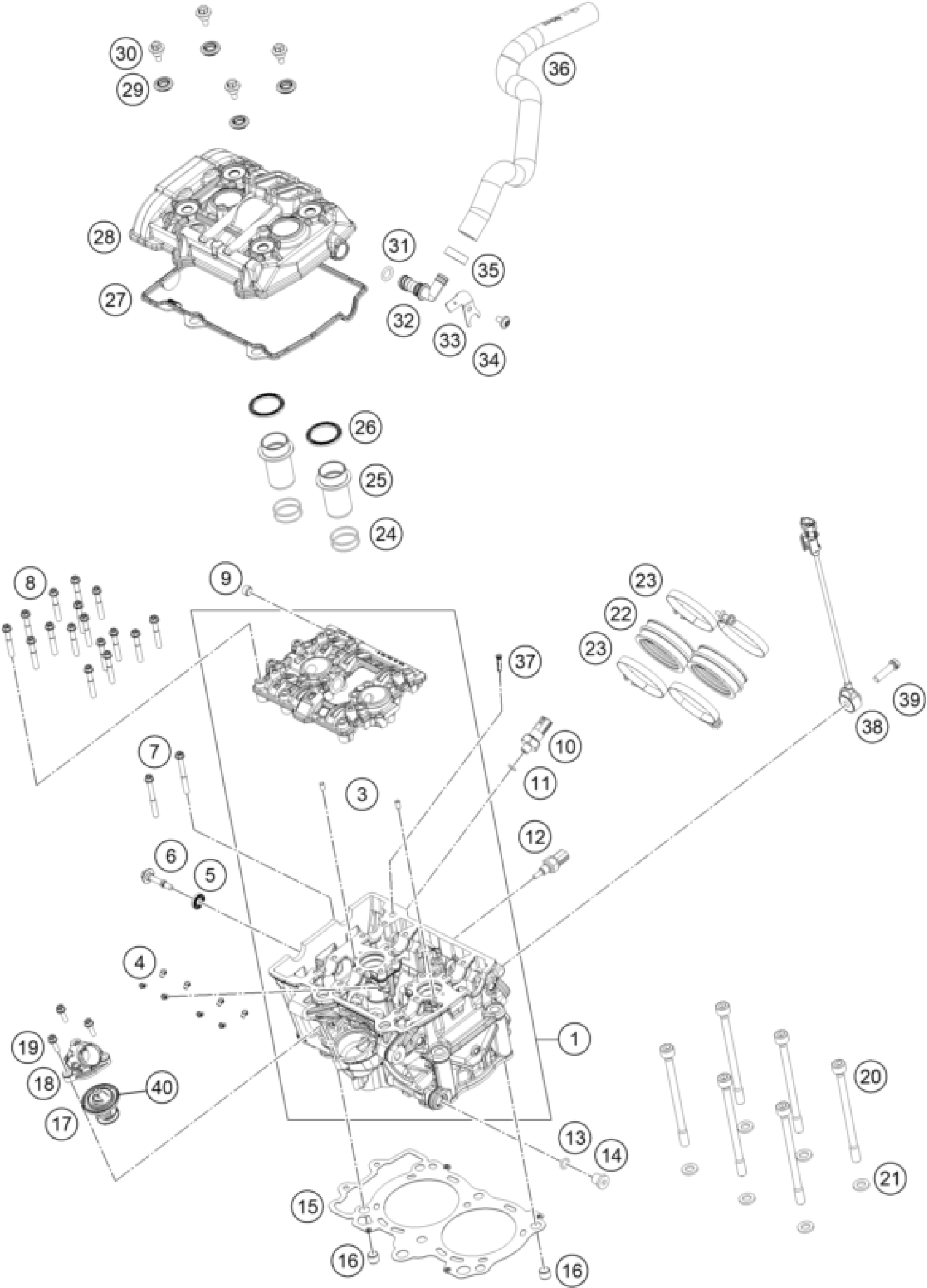

KTM 890 SMT 2023 CYLINDER HEAD Diagram

#

Description
Price

1

Cylinder head cpl.

6363602000024

$913.11

3

needle roller DIN 5402 5x9.8

0402050980

$1.49

4

oil jet 50 M5

60030063050

$9.44

5

decoupling element

75036052010

$4.11

6

valve mechanism cover screw

75036055000

$4.11

7

HH collar screw M6x55 TX30

0025060556

$3.08

8

HH collar screw M6x40 ISA30

0025060405

$1.49

9

pipe plug DIN 906 M10x1

0906100100

$4.11

10

oil pressure switch ''BITRON''

61238091100

$33.46

11

O-RING 9x1,5 V80 SH

07700900151

$2.05

12

water temperature sensor

79435047000

$23.74

13

o-ring 10.00x2.00 silicone

0770100020

$2.05

14

threaded plug DIN 908 M12x1.5

0908120153

$4.11

15

Cylinder head gasket

63630136000

$67.40

16

dowl sleeve 10.2x12.5x10

58530014100

$4.11

17

Thermostat

63635017000

$47.58

18

Water connection

63535019100

$21.87

19

HH Collar Screw M5x16 ISA30 SS

0025050166S

$1.49

20

cylinder head bolt M10x1.25 L=

78630044000

$11.02

21

washer 19x10.5x2.5

77336089010

$4.11

22

Intake Sleeve

63536044000

$27.57

23

hose clamp Gemi 66

61236048000

$9.53

24

O-RING 29,87X1,78 VITON

0770298178

$2.05

25

spark plug shaft insert

63536075000

$12.15

26

Spark plug shaft seal

61136175050

$1.49

27

Valve Cover Gasket

63536053000

$12.33

28

Valve mechanism cover

63536052100C1

$102.09

29

RUBBER GASKET FOR SCREW

77036054150

$4.11

30

VALVE COVER SCREW

77336054150

$5.23

31

O-RING 12,00X3,0 VITON 75

0770012030

$3.08

32

bleeder connector

63536081000

$3.08

33

Retaining bracket bleeder flan

63736082050

$15.61

34

EJOT ALtracs 60x12 TX30

0080060123

$1.49

35

VARIABLE ONE-EAR CLAMP 19,8MM

00050198706

$3.08

36

Pre-formed hose engine breathe

63530087000

$19.63

37

Oil screen

61738016000

$10.74

38

Knock control sensor

63641038000

$72.36

39

HH collar screw M8x30

0025080306

$3.08

40

Thermostat seal

63635018000

Unavailable
