COOLING SYSTEM

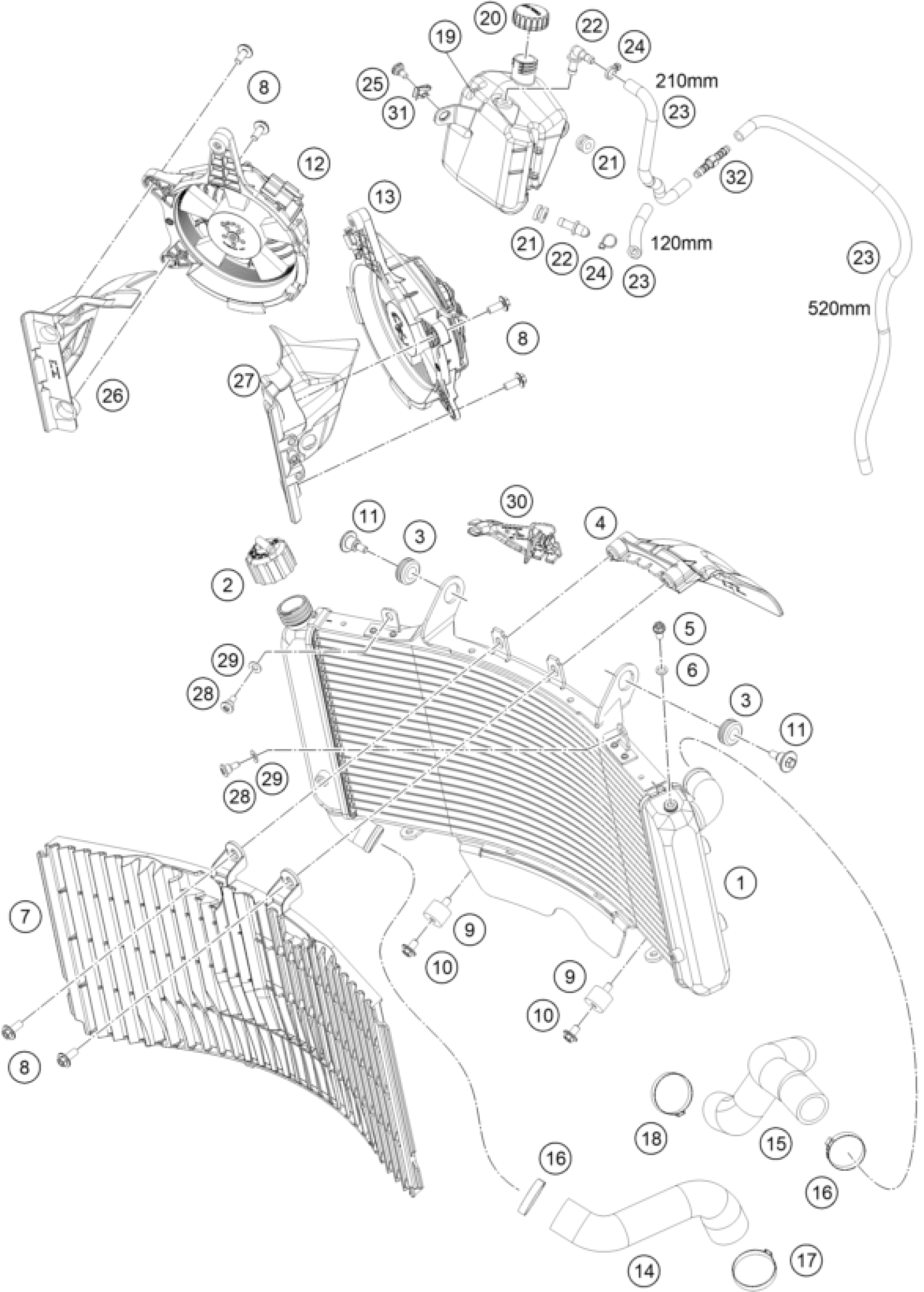

KTM 890 SMT 2023 COOLING SYSTEM Diagram
#
1
Radiator
A61035010000
Unavailable
2
RADIATOR CAP 1,4 BAR
62535009000
Unavailable
3
RUBBER SLEEVE D=12MM
41001052000
Unavailable
5
HH collar screw M6x12 TX30
0025060126
Unavailable
6
ALU-GASKET 6X10X1.5
60035048000
Unavailable
7
Radiator protection
63535040000
Unavailable
8
HH collar screw M6x15 TX30
0024060156
Unavailable
9
silentbloc 20x15-M6x10-(1)
43205062100
Unavailable
10
HH COLLAR SCREW M6X10 TX30
0024060106
Unavailable
11
SPECIAL SCREW M6X21 WS=8
60035001000
Unavailable
12
Radiator fan right, cmpl.
63535141044
Unavailable
13
Fan left cpl.
63535041044
Unavailable
14
molded hose radiator
63535026000
Unavailable
15
molded hose radiator
63535027000
Unavailable
16
Stufenlose Einohrklemme 33,1mm
00050331706
Unavailable
17
VARIABLE ONE-EAR CLAMP 39,6MM
00050396706
Unavailable
19
Reservoir, radiator
A61035065000
Unavailable
20
Latch, compens. tank cpl.
60335066044
Unavailable
21
RUBBER GROMMET 6X9X13MM 04
60035069000
Unavailable
22
Angle piece, reservoir
60035068000
Unavailable
23
HOSE 6X10 EPDM 03
60035067001
Unavailable
24
CABLE TIE 140/2,5MM BLACK
44011076140
Unavailable
25
special screw M5x12
69008021160
Unavailable
4
Air deflector, radiator
63635042000
Unavailable
27
air deflector left
A61008023050
Unavailable
26
air deflector right
A61008024050
Unavailable
28
SCREW M5X14 ISA30 ALU
69007125050
Unavailable
29
WASHER 6X12X1 HRC 40-45
0988060121
Unavailable
30
Bracket overflow hose reservoi
A61035065010
Unavailable
32
HOSE CONNECTION STRAIGHT
69015019010
Unavailable
31
RANGE CHANGE METAL NUT M5 INOX
54603048600
Unavailable
18
VARIABLE ONE-EAR CLAMP 36,1MM
00050361706
Unavailable
