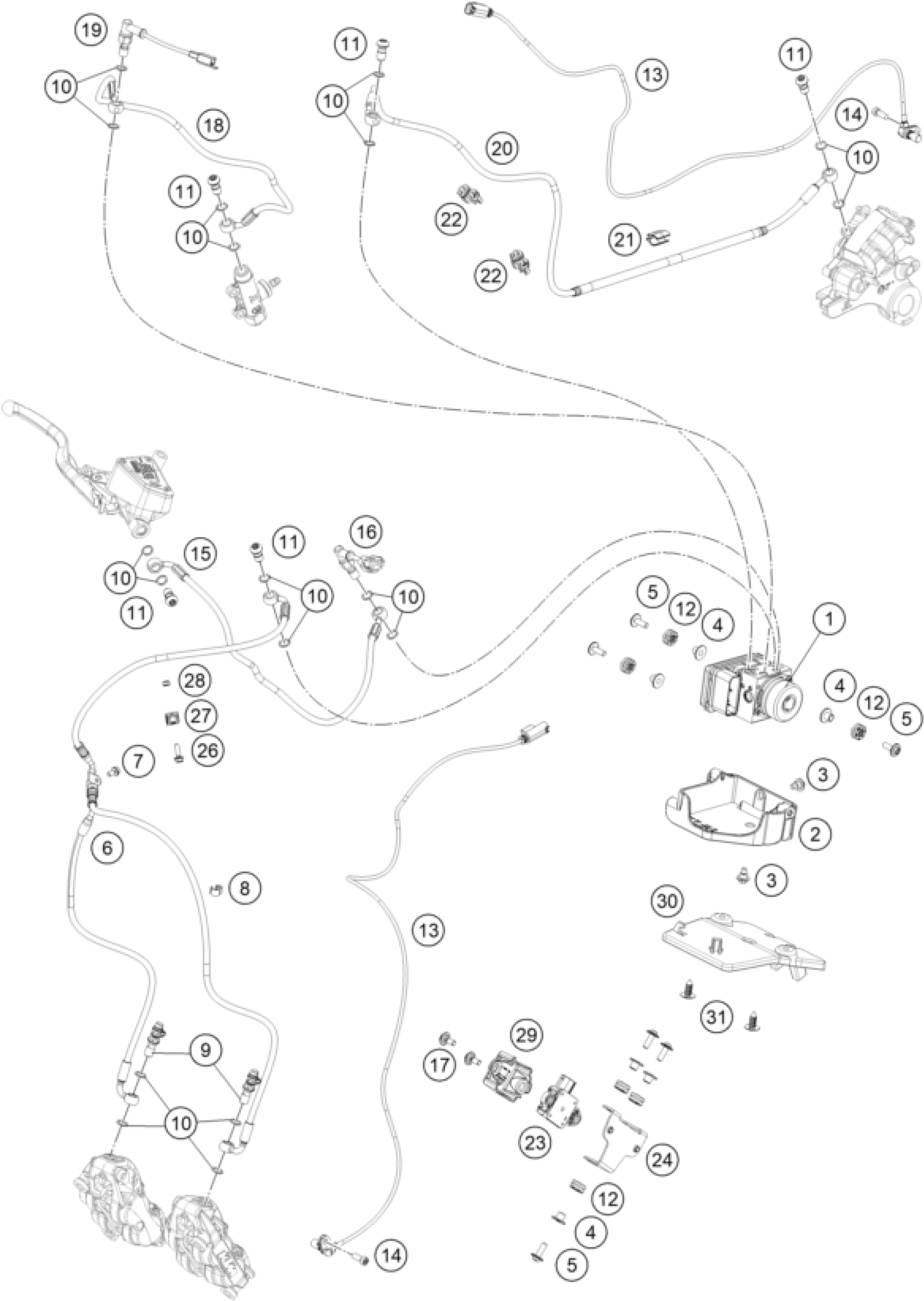

KTM 890 SMT 2023 ABS Diagram

#

Description
Price

1

ABS module filled

A61042031044

$3,234.62

2

ABS modulator bracket

63542040200

$21.68

3

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

4

Collar bushing 6.5X9X18X8.5

61342041000

$1.49

5

special screw M6x18-8.8 ISA30

69014017000S

$2.05

6

Brake line ABS-Caliper

63542003000

$197.46

7

HH collar screw M5x10 TX30

0025050106

$1.49

8

BAR SPACER 4/7 BLACK

60111094100

$5.79

9

BLEEDER SCREW CPL. 05

62513020000

$27.48

10

sealing ring DIN 7603 10x14x1

0603100141

$2.05

11

banjo bolt M10x1x19.5

62113020100

$8.78

12

Damper 40 SHORE

62142041100

$4.11

13

ABS-SENSOR

76042125000

$189.98

14

Cap head bold ISO 14580 M6x16

014580060166

$2.05

15

Brake line MC-ABS

63542001000

$60.02

16

Brake light switch

64111051100

$50.86

17

SPECIAL SCREW M6X15X3

83008000015

$3.08

18

Brake line MC-ABS

63542002000

$64.41

19

BRAKE LIGHT SWITCH REAR

62111051000

$29.07

20

Brake links ABS-Caliper

63542004000

$79.47

21

CABLE SUPPORT 10/4MM 2014

54813026100

$2.05

22

Bracket ABS line dia7.5

64142046000

$2.05

23

Angle sensor

61542090000

$391.01

24

Retaining bracket angle sensor

63742090015

$24.68

26

HH collar screw M5x16 TX30

0025050166

$2.05

27

SUPPORT FOR BRAKE HOSE M5

60113146000

$3.08

28

Self locking nut DIN 985 M5

0985050003

$2.05

29

COVER SENSOR BOX

61342090050

$12.15

30

Heat protection

A61042040010

$16.35

31

PLUG FOR M8

61103165000

$4.11
