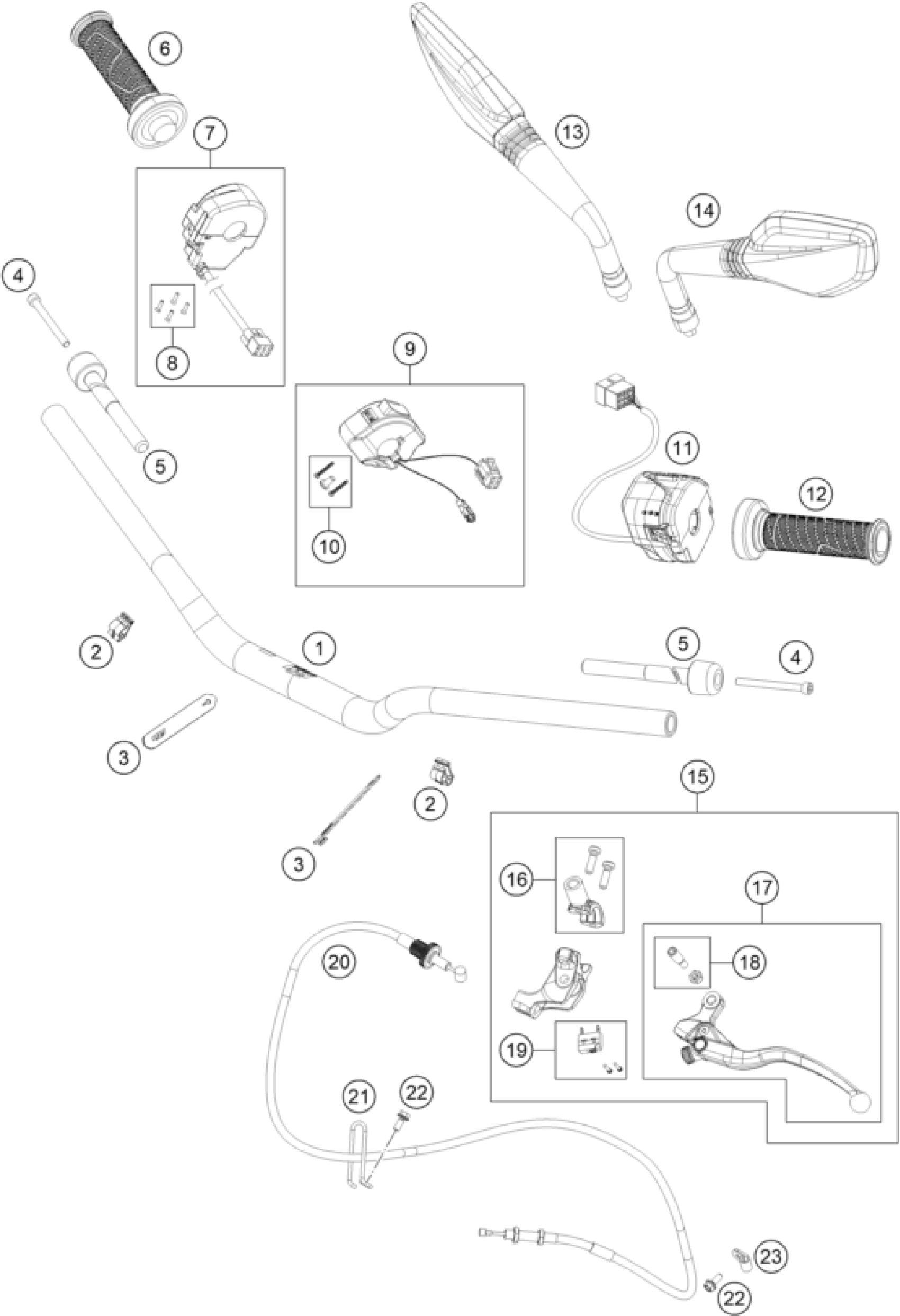

KTM 890 DUKE R CKD 2022 HANDLEBAR, CONTROLS Diagram

#

Description

Price

1

Handlebar L=743 mm Dk= 28,5 mm

63602001000C1

$151.93

2

Line guide

83013026000

$3.08

3

RUBBER CABLE TIE 45MM 03

60011093045

$3.08

4

SHCS DIN 912 M6x65

0912060653

$2.05

5

handlebar weight

61002004000

$35.52

6

Grip tube (no heating)

60702012000

$74.51

7

Ride-by-wire without throttle

60711012000

$100.88

8

SCREW SET START-STOP SWITCH

76011073110

$6.72

9

emergency OFF switch

76011074000

$60.30

10

Screw set start-stop switch

61411174010

$5.23

11

Handlebar switch left

76011170100

$129.12

12

Grip LHS w/o heater

60702039100

$86.29

13

Mirror RH

C90912041000

Unavailable

14

MIRROR L/S

C90412040000

Unavailable

15

Clutch lever cmpl. black

63602031000C1

$209.99

16

Clamp cpl.

63602044000C1

$31.13

17

Clutch lever

63602040000C1

$100.04

18

Kit lever pin

64102038000

$14.39

19

Lever switch

64111049000

$46.93

20

Clutch cable

64102090000

$70.40

21

Clutch cable wire guide

64102097000

$3.08

22

HH collar screw M5x12 TX30

0025050126

$3.08

23

PVC clamp 6.4 MM Heyman

64132070000

$1.49
